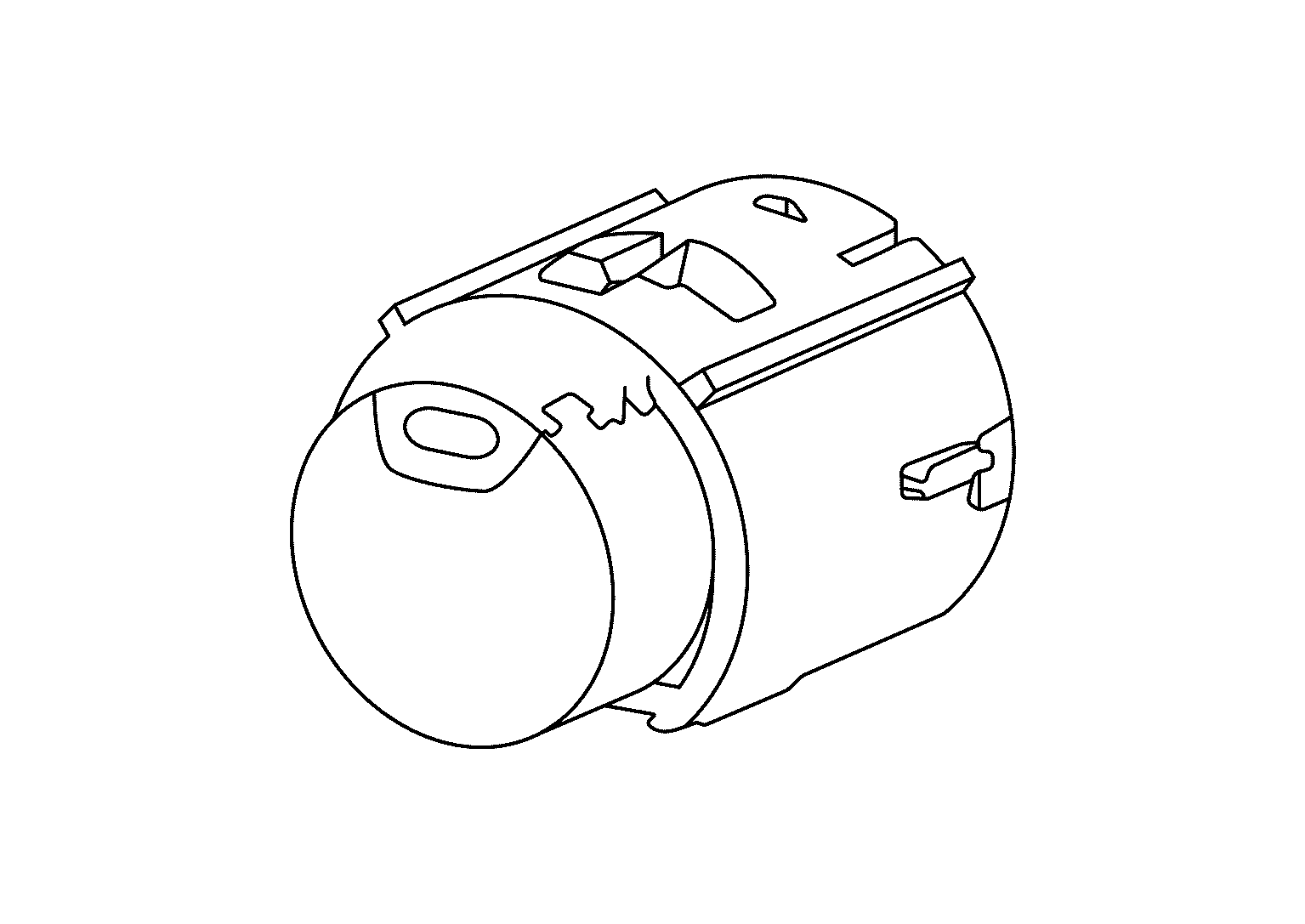

Push-Button Ignition Switch

Push-Button Ignition Switch is pressed, and transmits the status signal to BCM and IPDM E/R.

G09161128Courtesy of NISSAN NORTH AMERICA, INC.
