Sub-Battery Relay

The Sub-Battery Relay is controlled by EMCM. The Sub-Battery Relay connects/interrupts the circuit between the main battery power supply circuit and the Sub-Battery power supply circuit.

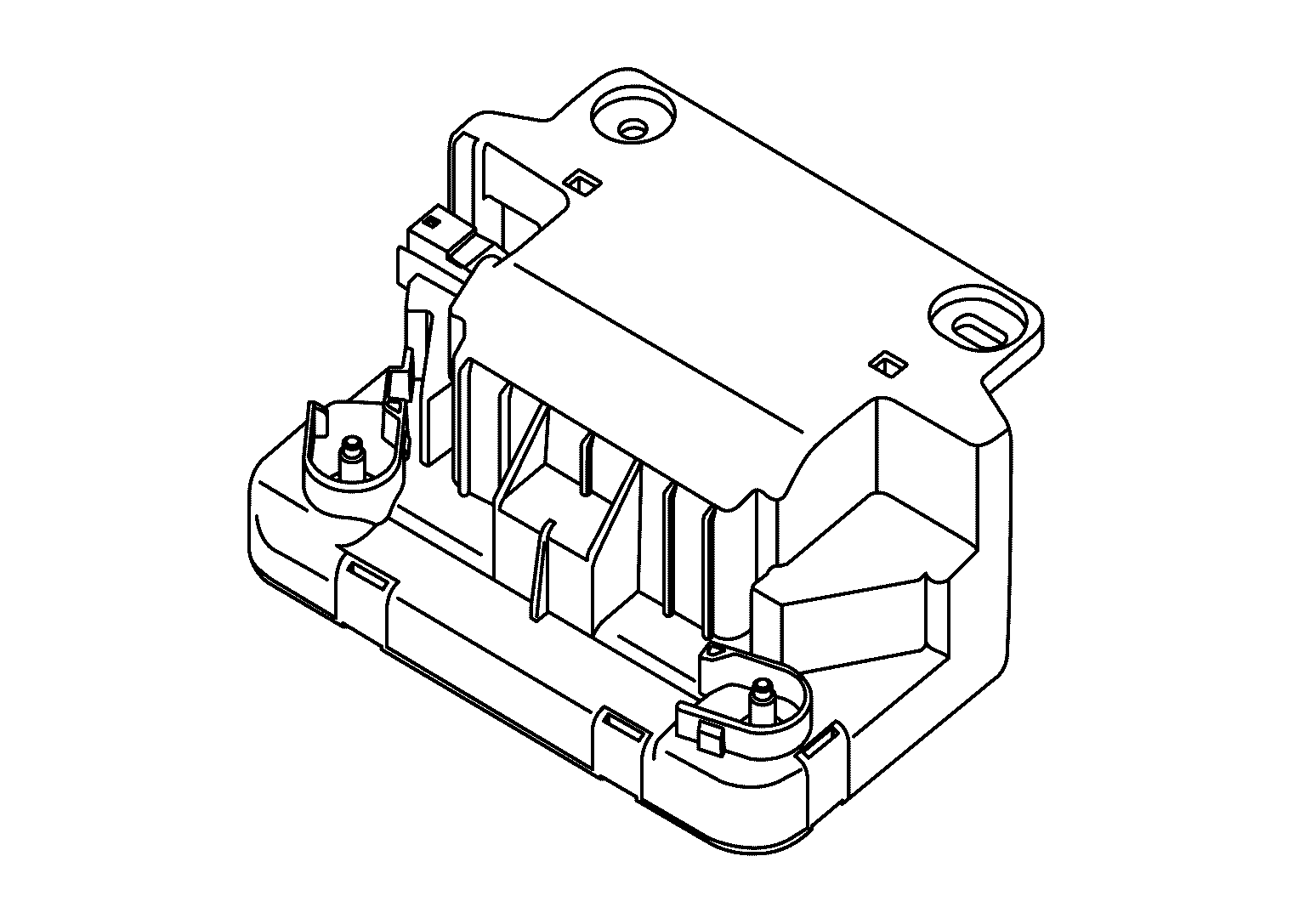

GNSJSBIA4068ZZ-068Courtesy of NISSAN NORTH AMERICA, INC.
