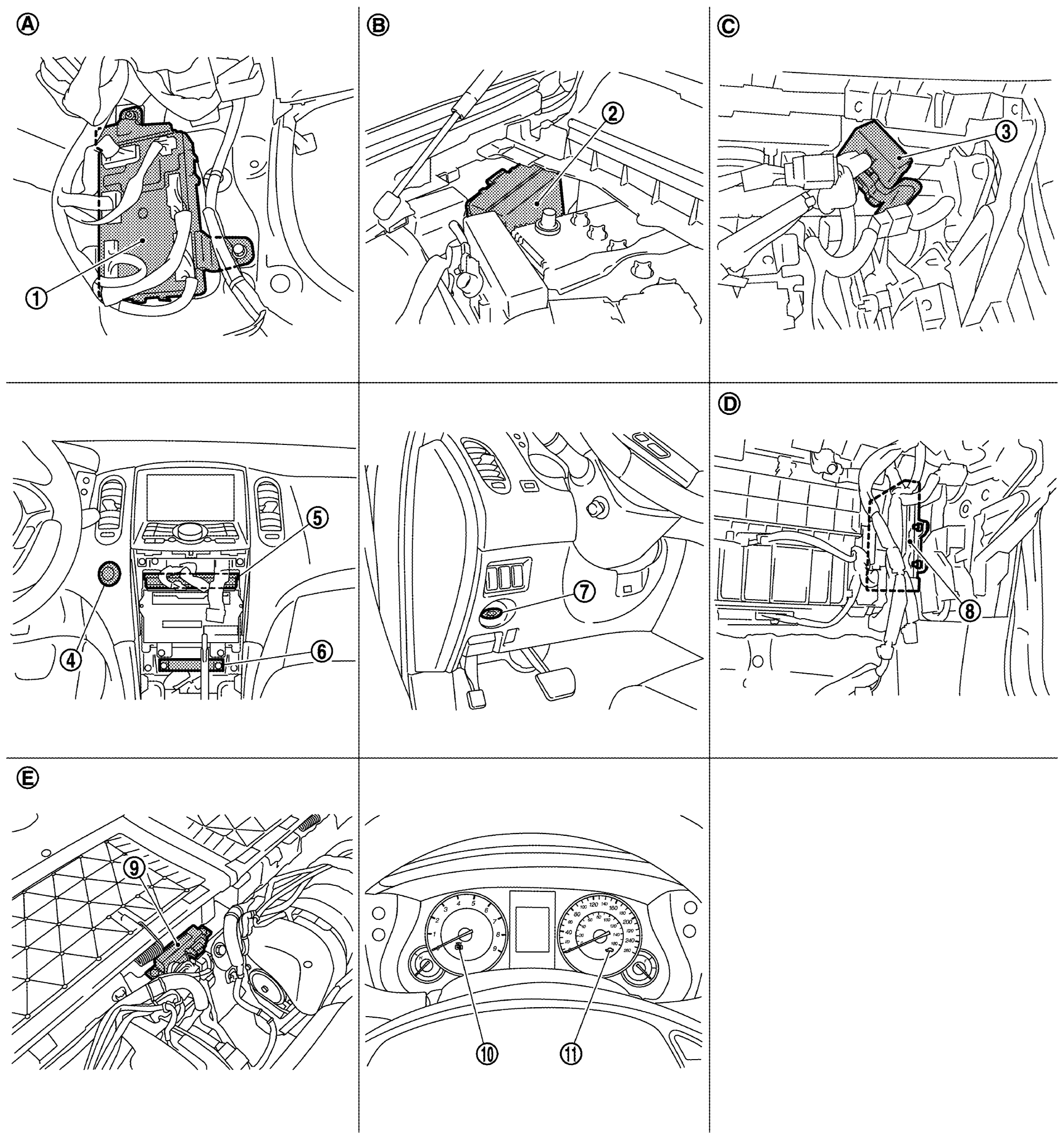

Component Location
| 1. | BCM | 2. | IPDM E/R | 3. | Remote keyless entry receiver |
| 4. | Push-button ignition switch | 5. | Unified meter and A/C amp. | 6. | Inside key antenna (instrument center) |
| 7. | Key slot | 8. | ECM | 9. | Inside key antenna (luggage room) |
| 10. | Combination meter (KEY warning lamp) | 11. | Combination meter (security indicator lamp) | ||
| A. | Dash side lower (passenger side) | B. | Engine room dash panel (RH) | C. | Behind the instrument assist lower panel |
| D. | Behind the instrument assist lower panel | E. | Under the rear seat seatback |
| 1. | Stop lamp switch | 2. | Hood switch | 3. | Horn (high) |
| 4. | Horn (low) | 5. | Front door switch (driver side) | 6. | TCM (built into A/T assembly) |
| 7. | A/T shift selector (detention switch) | 8. | Power window main switch (door lock and unlock switch) | ||
| A. | Behind the instrument driver lower cover | B. | Behind the front bumper | C. | A/T assembly |
| D. | View with the center console assembly removed |
