Exploded View With Torque Specifications

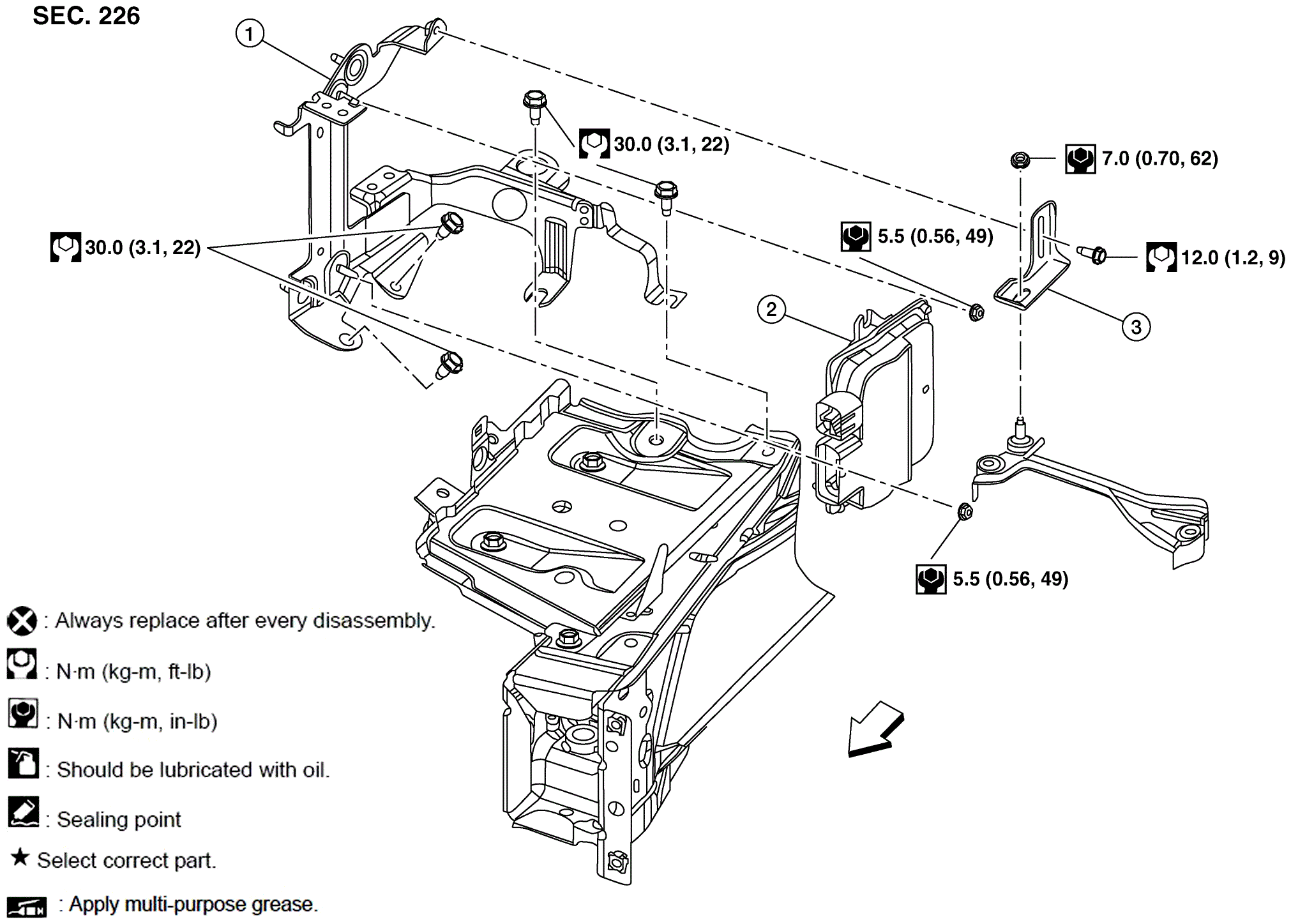

GNSALBIA3264ZZ-264Courtesy of NISSAN NORTH AMERICA, INC.
1. Electric intake valve timing control module bracket 2. Electric intake valve timing control module 3. ECM cover
ARROW Front
