Wiring Diagram - Engine Control System

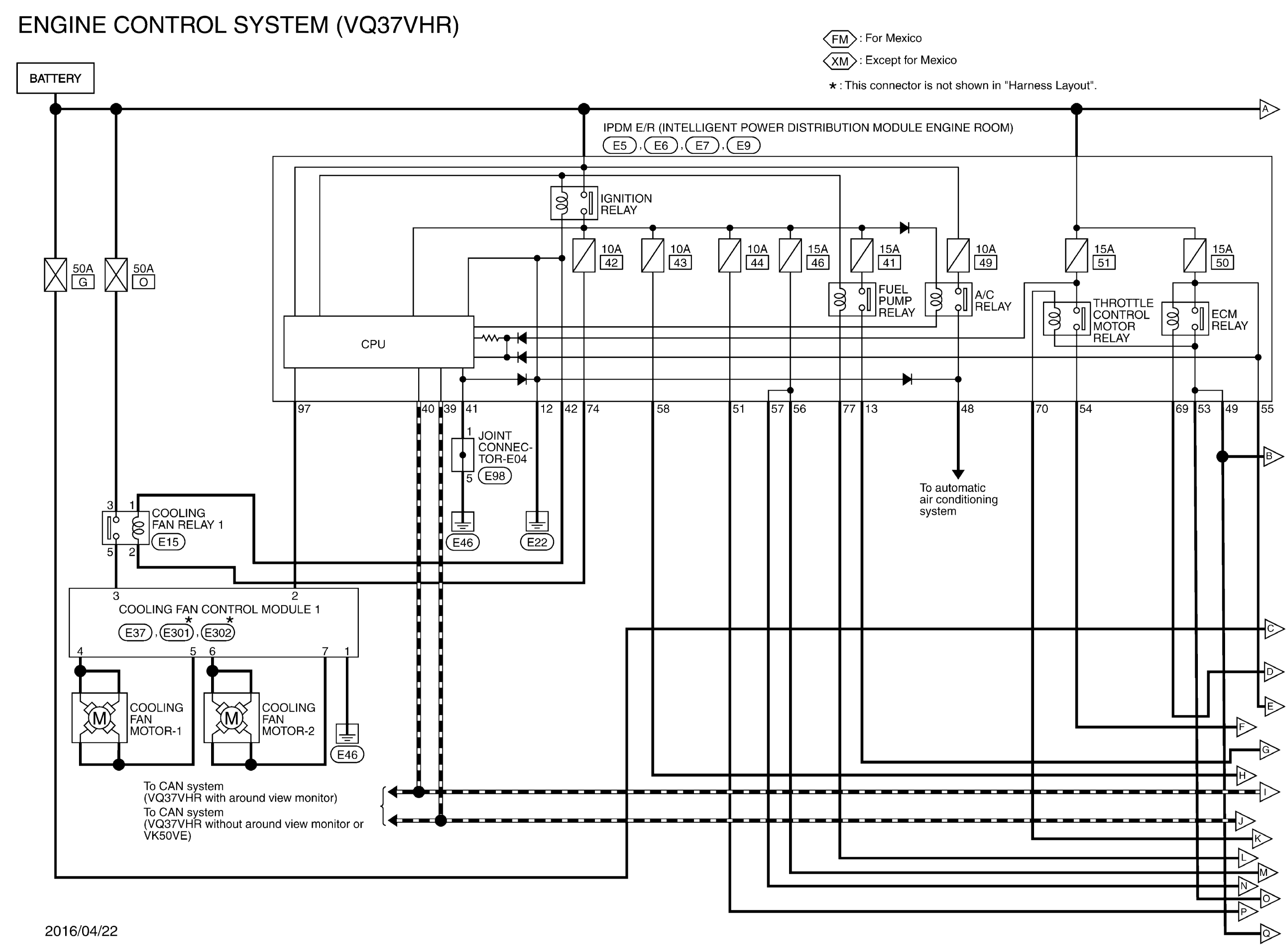

GNSJRBWE0465GB-465

Courtesy of NISSAN NORTH AMERICA, INC.

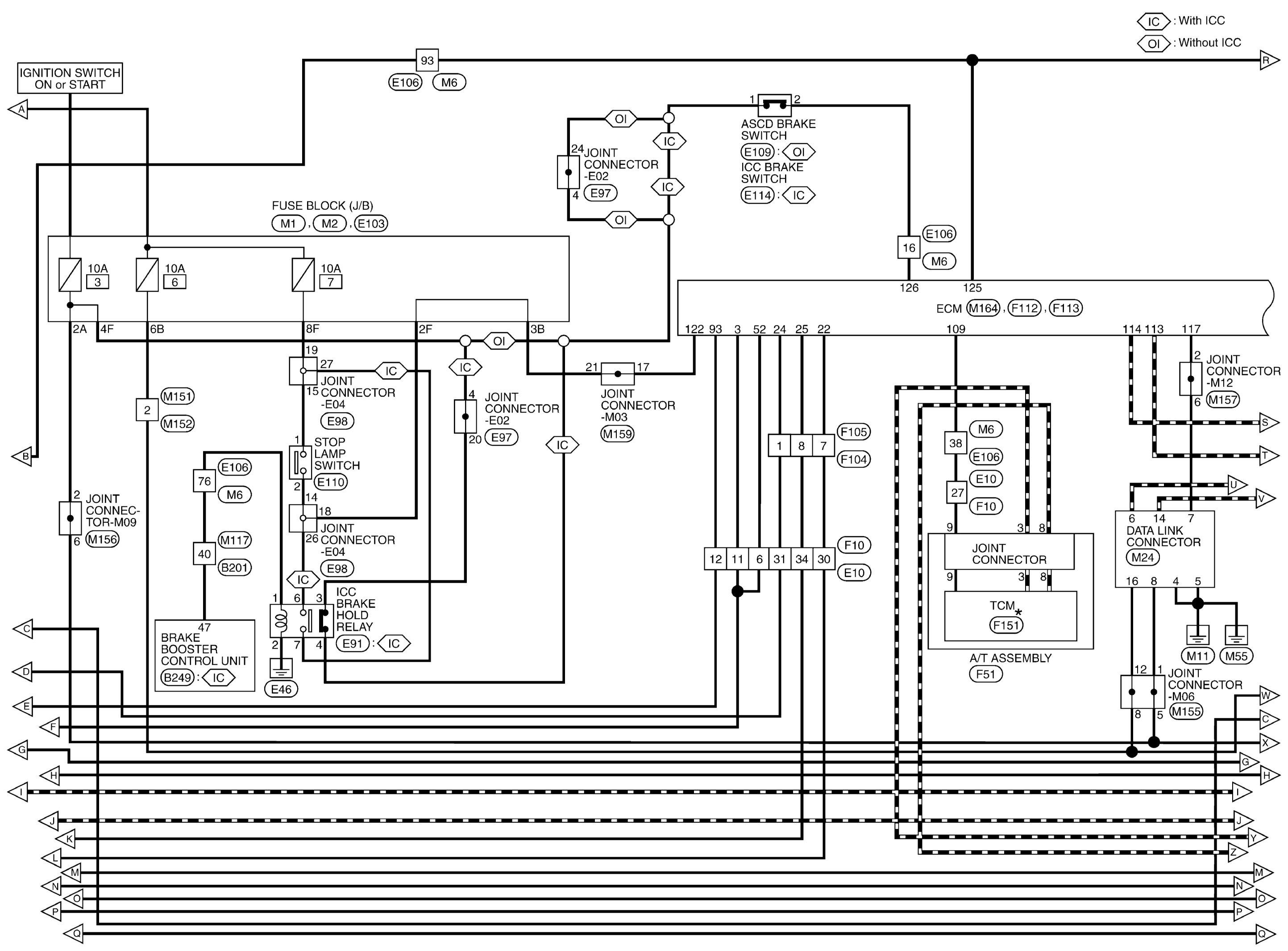

GNSJRBWE0466GB-466

Courtesy of NISSAN NORTH AMERICA, INC.

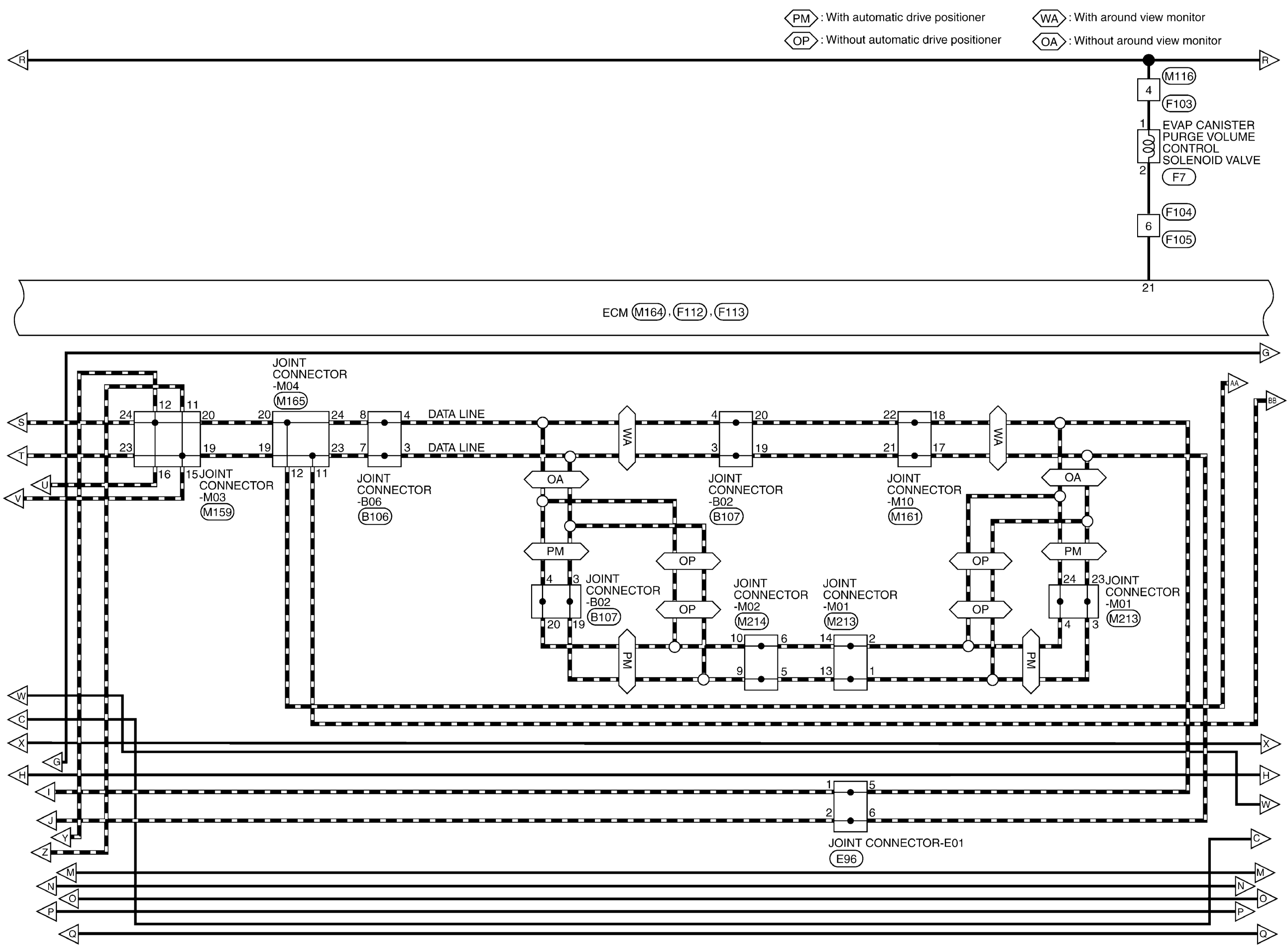

GNSJRBWE0467GB-467

Courtesy of NISSAN NORTH AMERICA, INC.

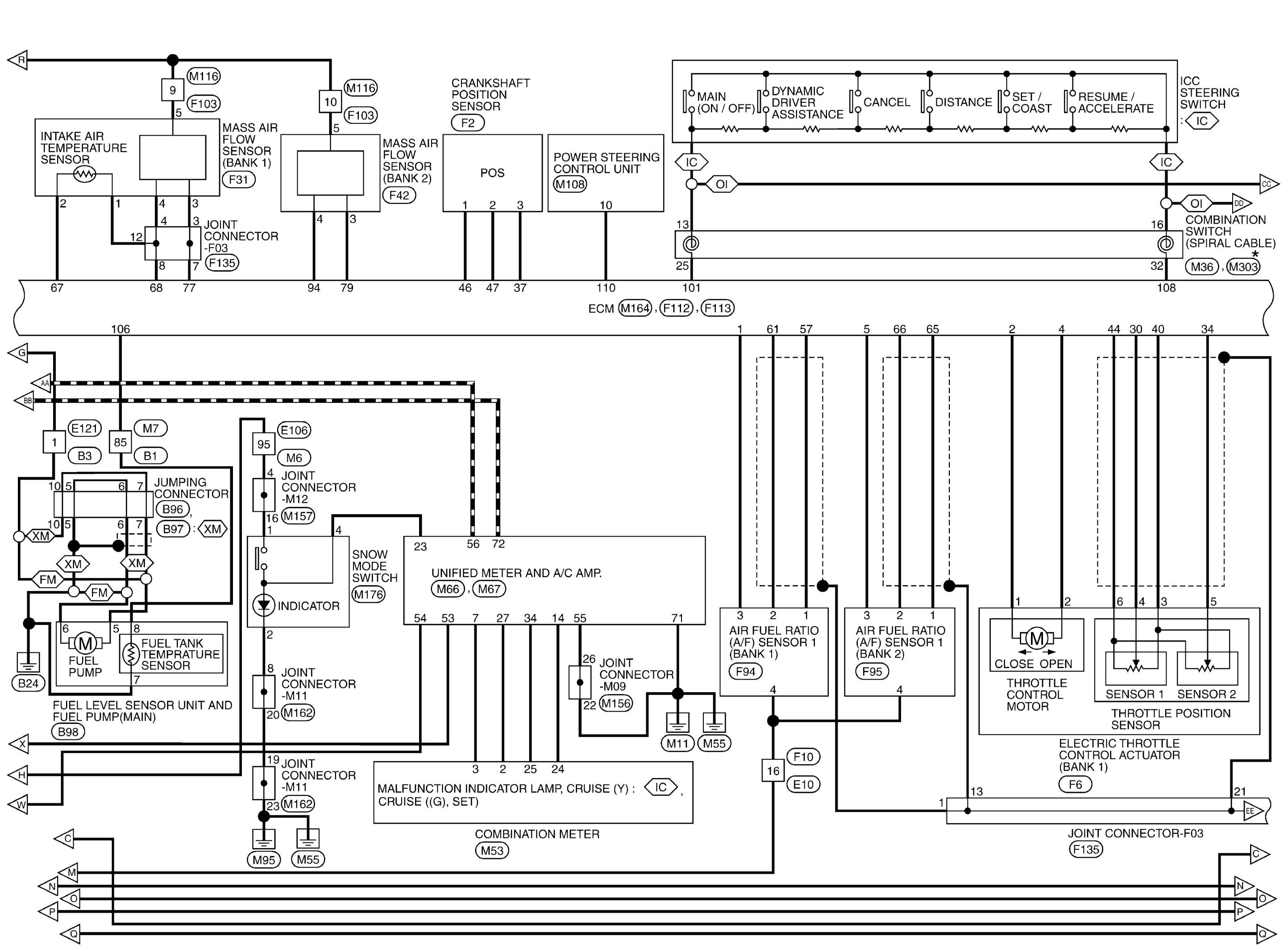

GNSJRBWE0468GB-468

Courtesy of NISSAN NORTH AMERICA, INC.

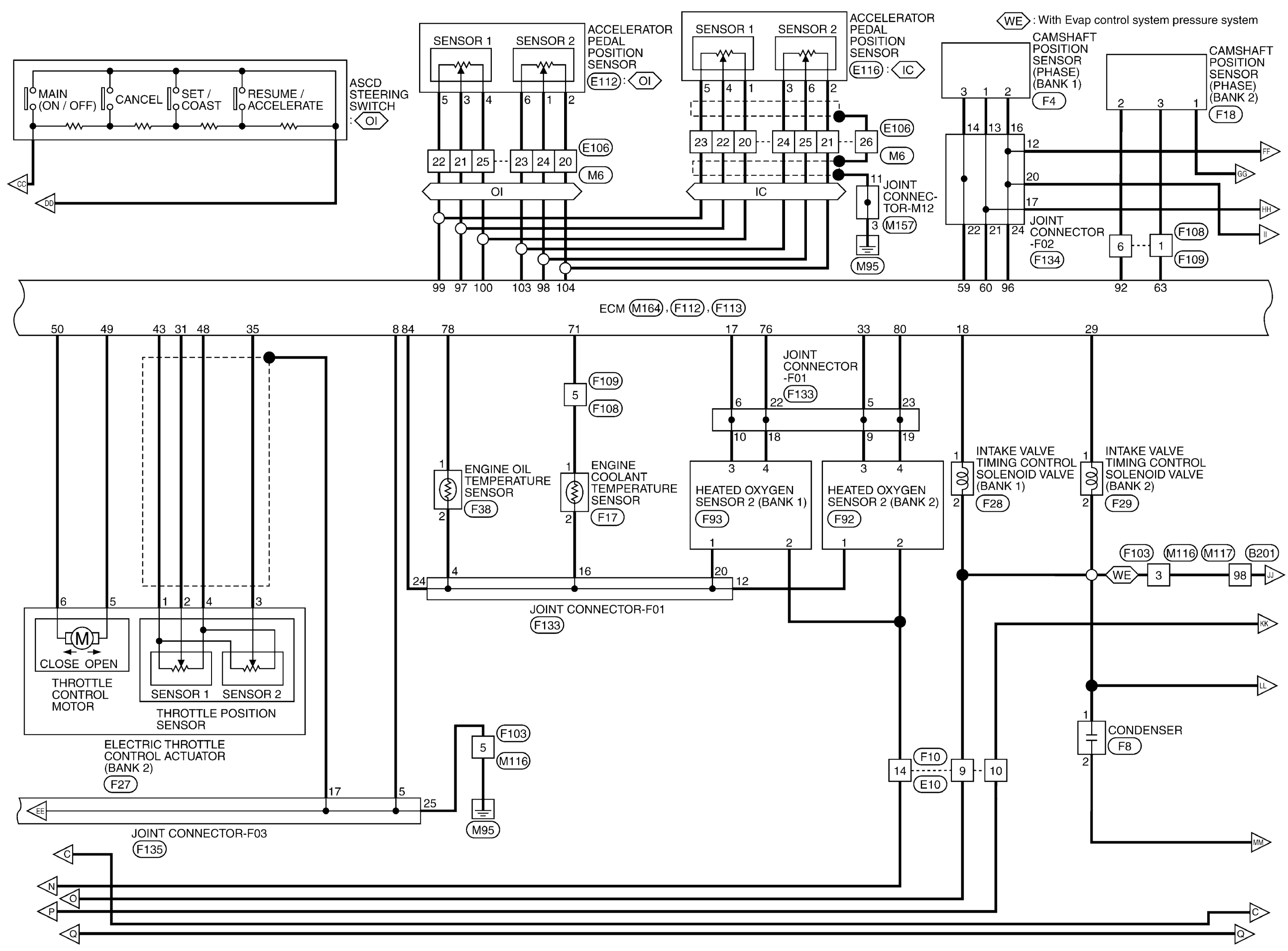

GNSJRBWE0469GB-469

Courtesy of NISSAN NORTH AMERICA, INC.

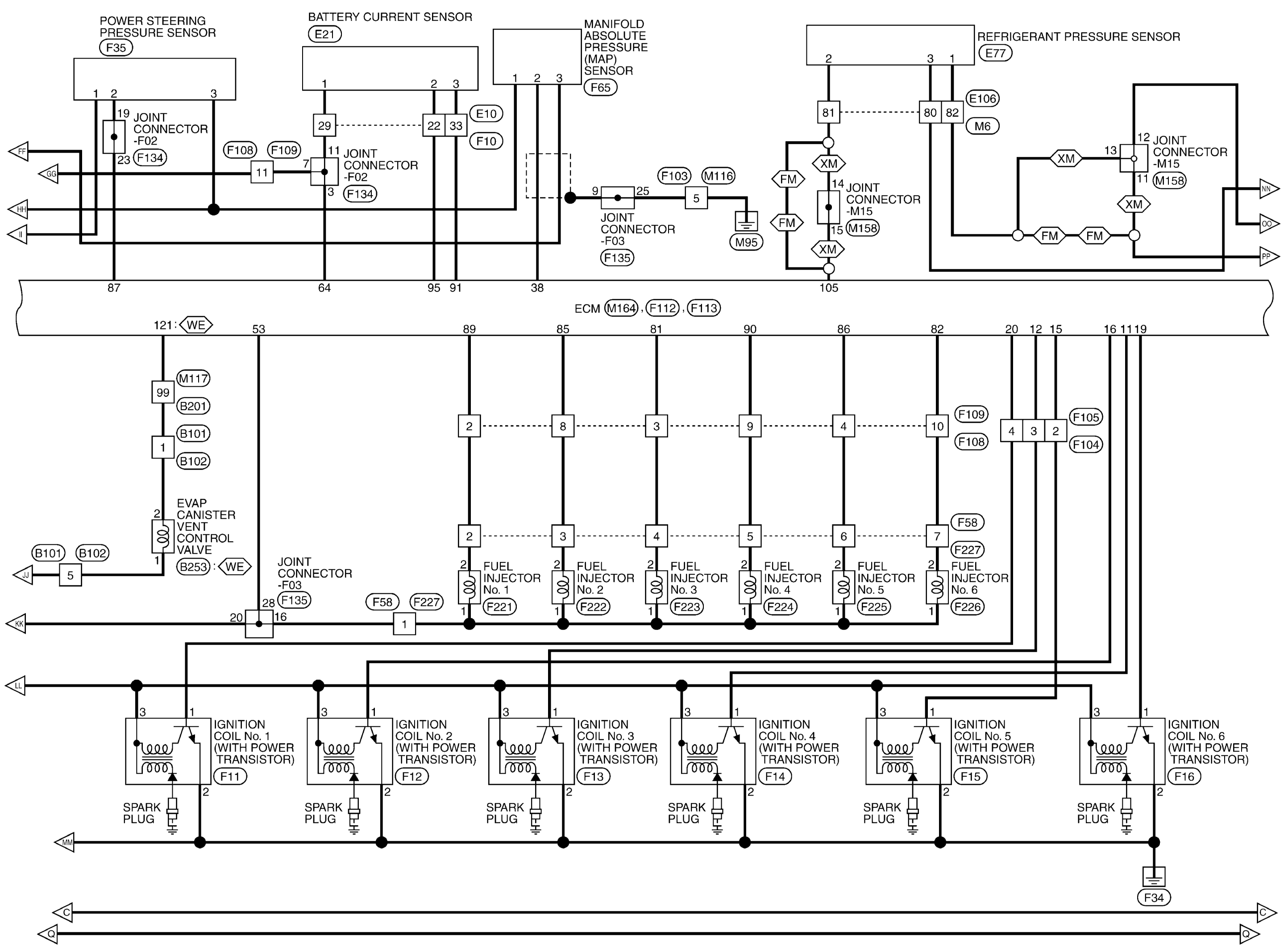

GNSJRBWE0470GB-470

Courtesy of NISSAN NORTH AMERICA, INC.

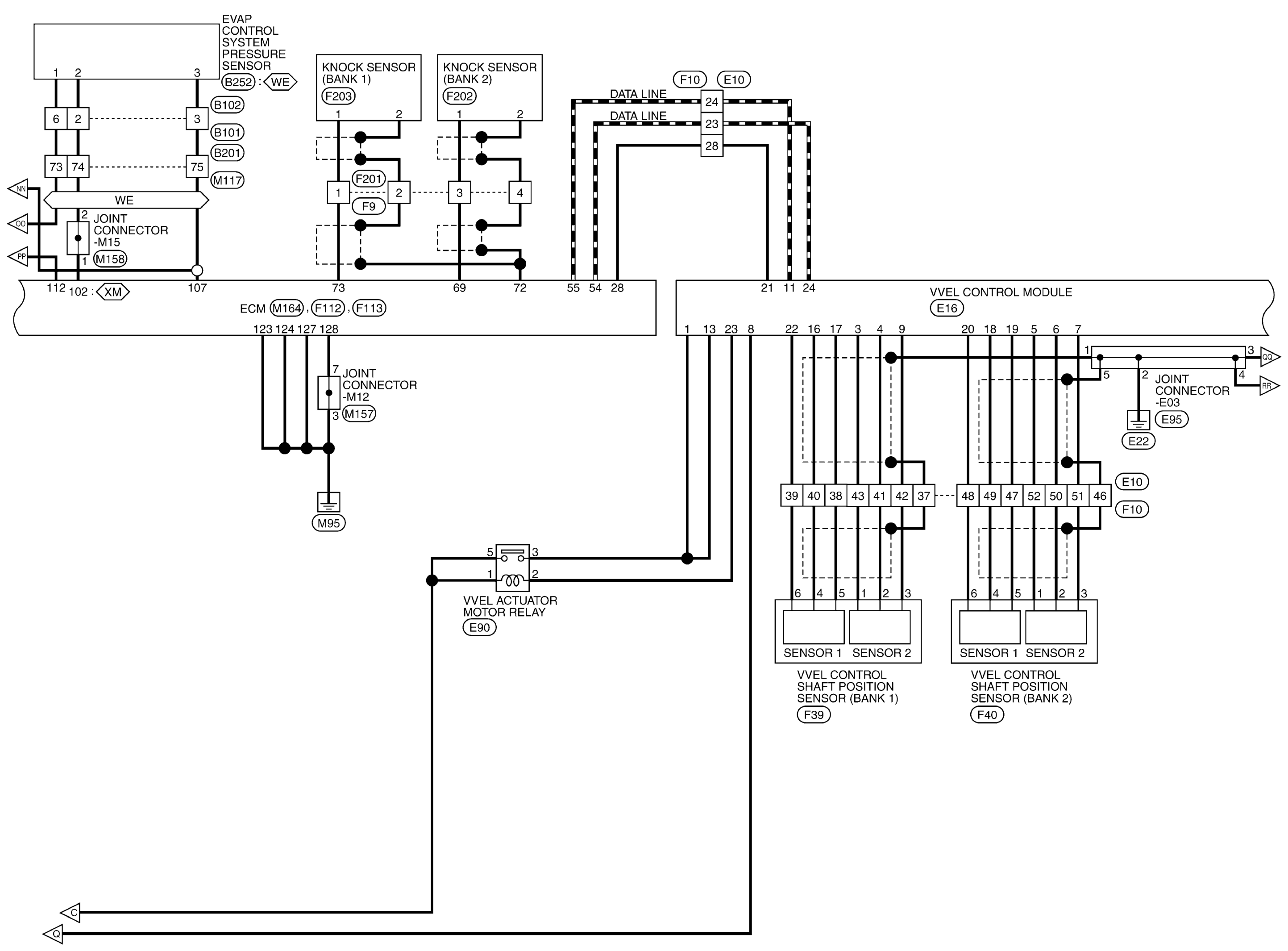

GNSJRBWE0471GB-471

Courtesy of NISSAN NORTH AMERICA, INC.

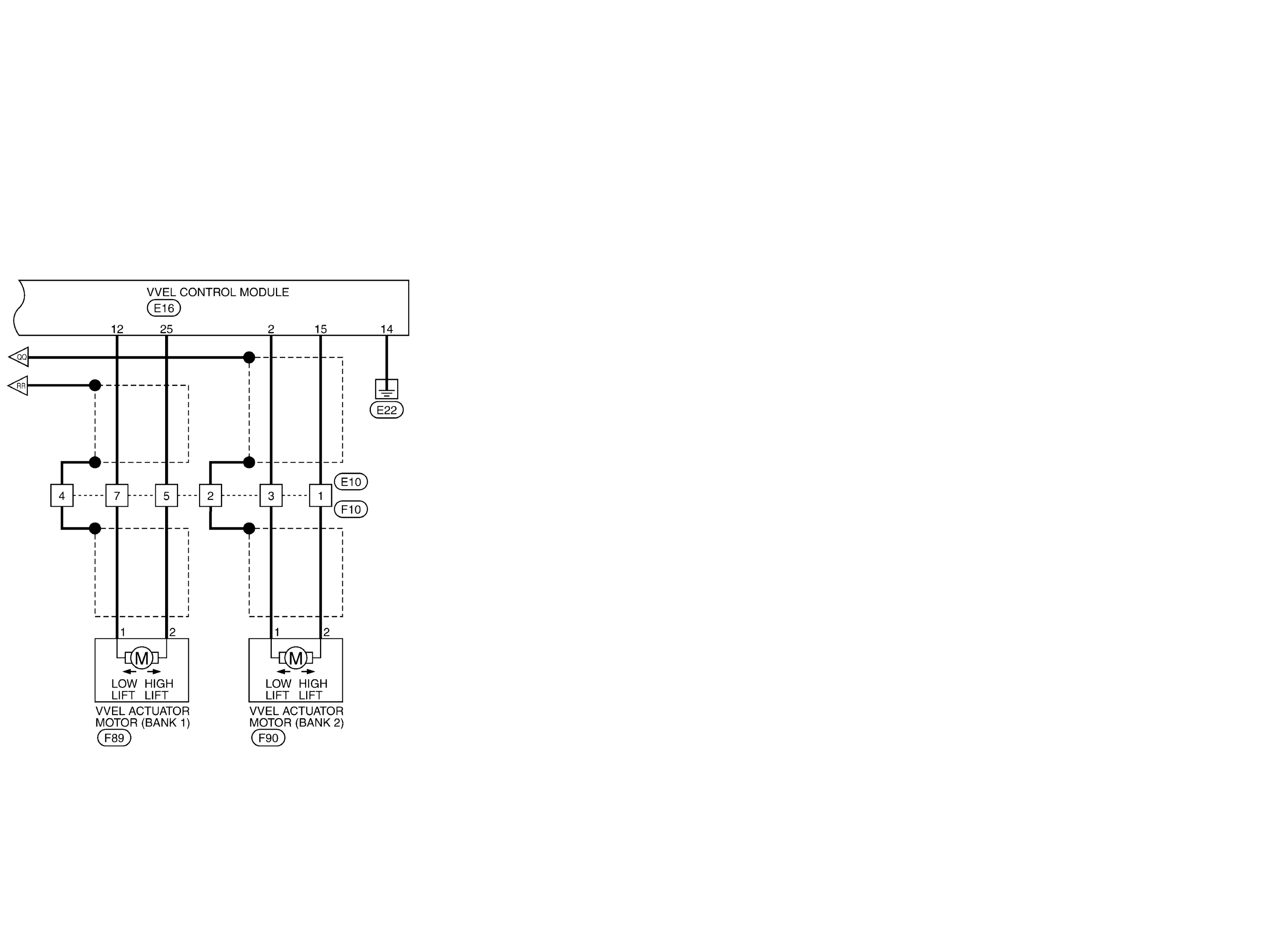

GNSJRBWE0472GB-472

Courtesy of NISSAN NORTH AMERICA, INC.

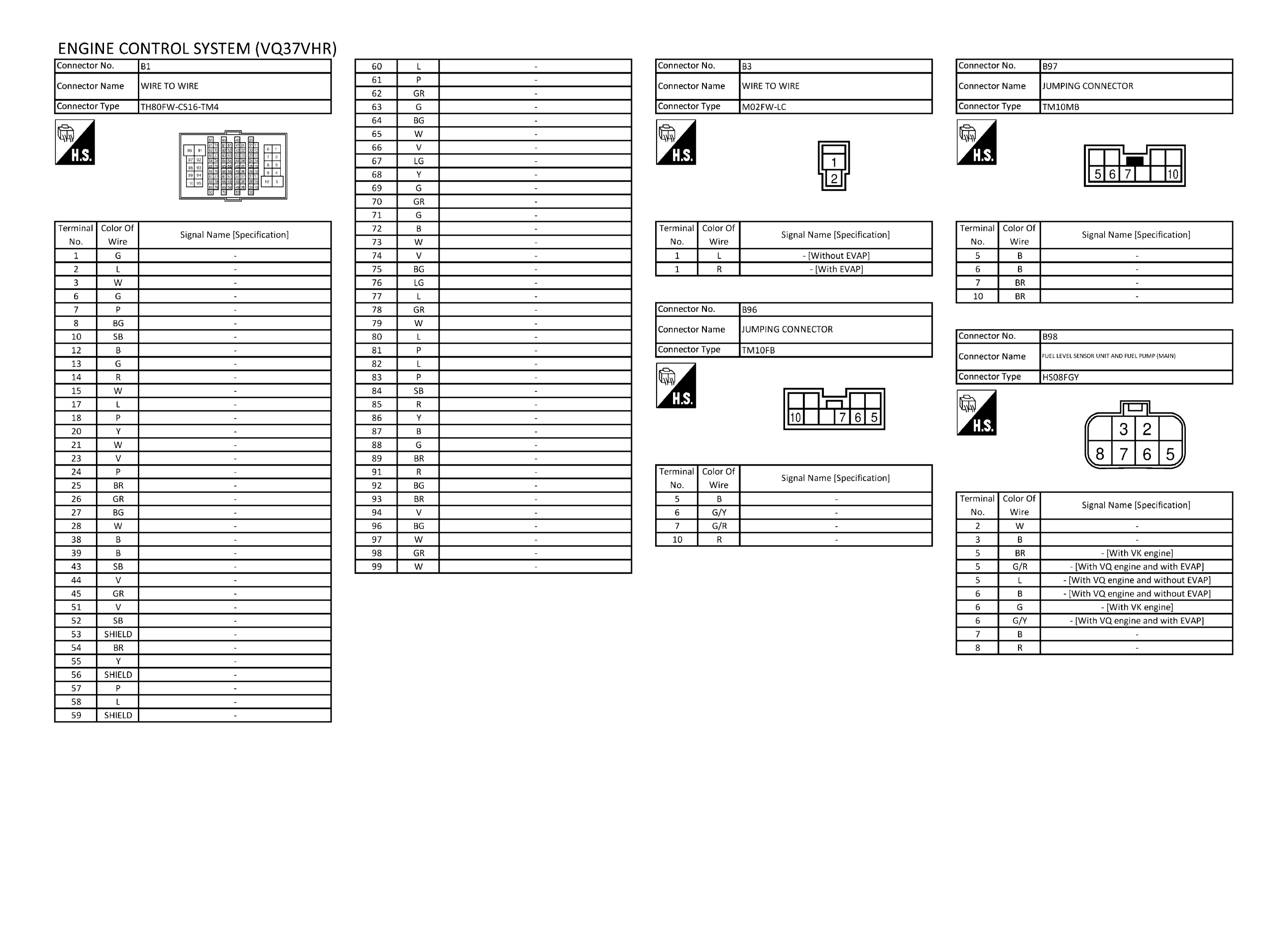

GNSJRBWE0473GB-473

Courtesy of NISSAN NORTH AMERICA, INC.

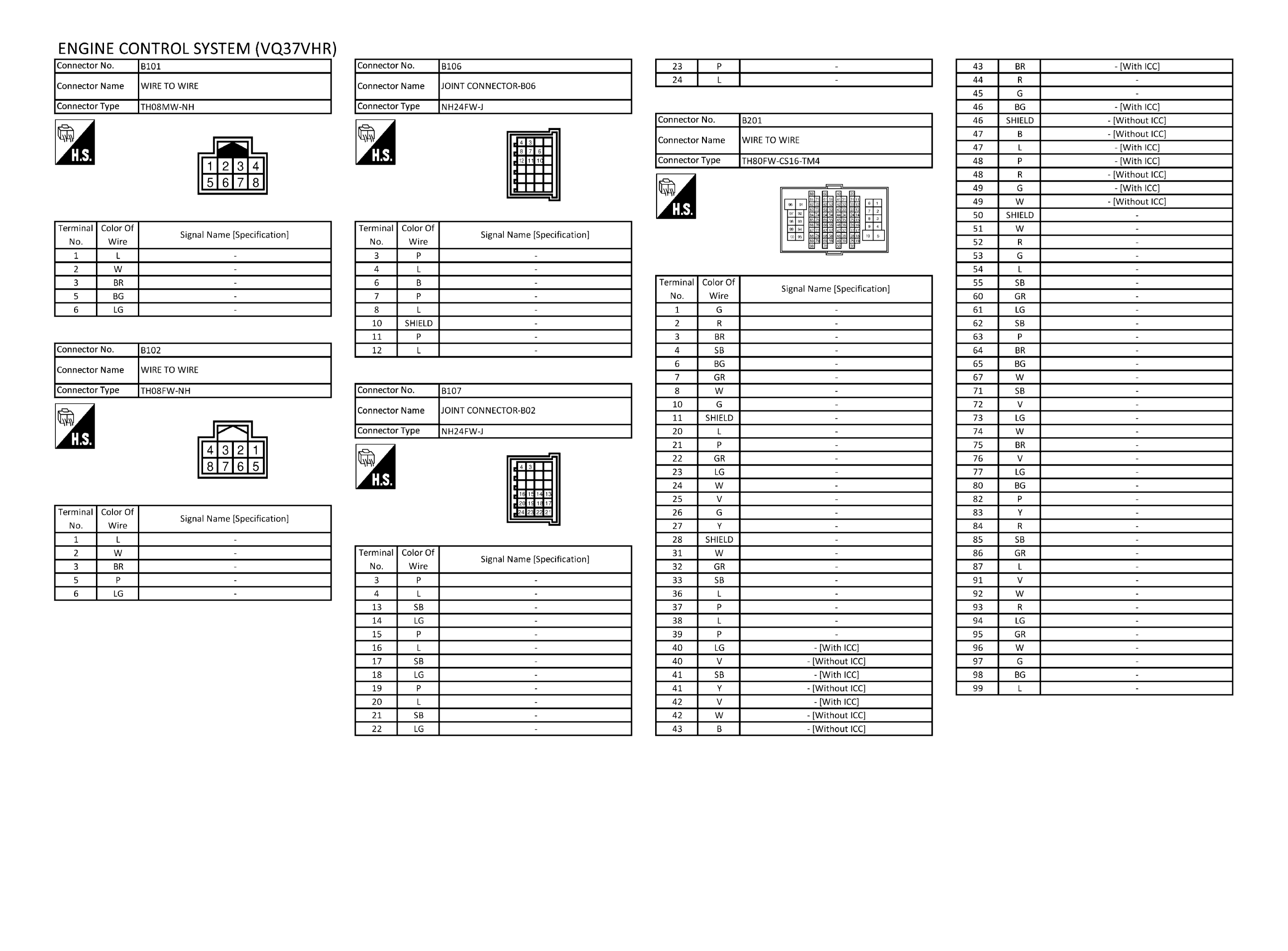

GNSJRBWE0474GB-474

Courtesy of NISSAN NORTH AMERICA, INC.

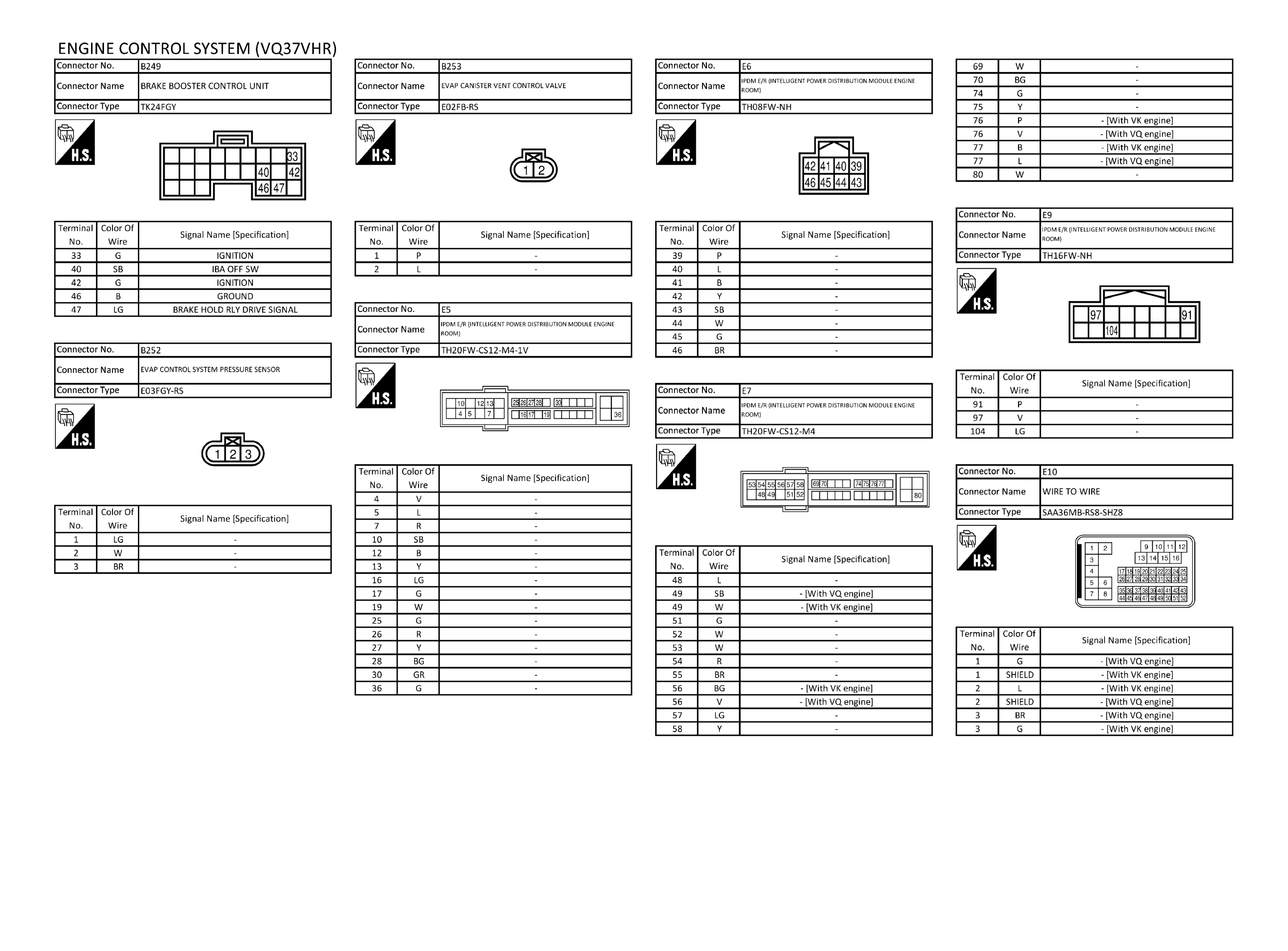

GNSJRBWE0475GB-475

Courtesy of NISSAN NORTH AMERICA, INC.

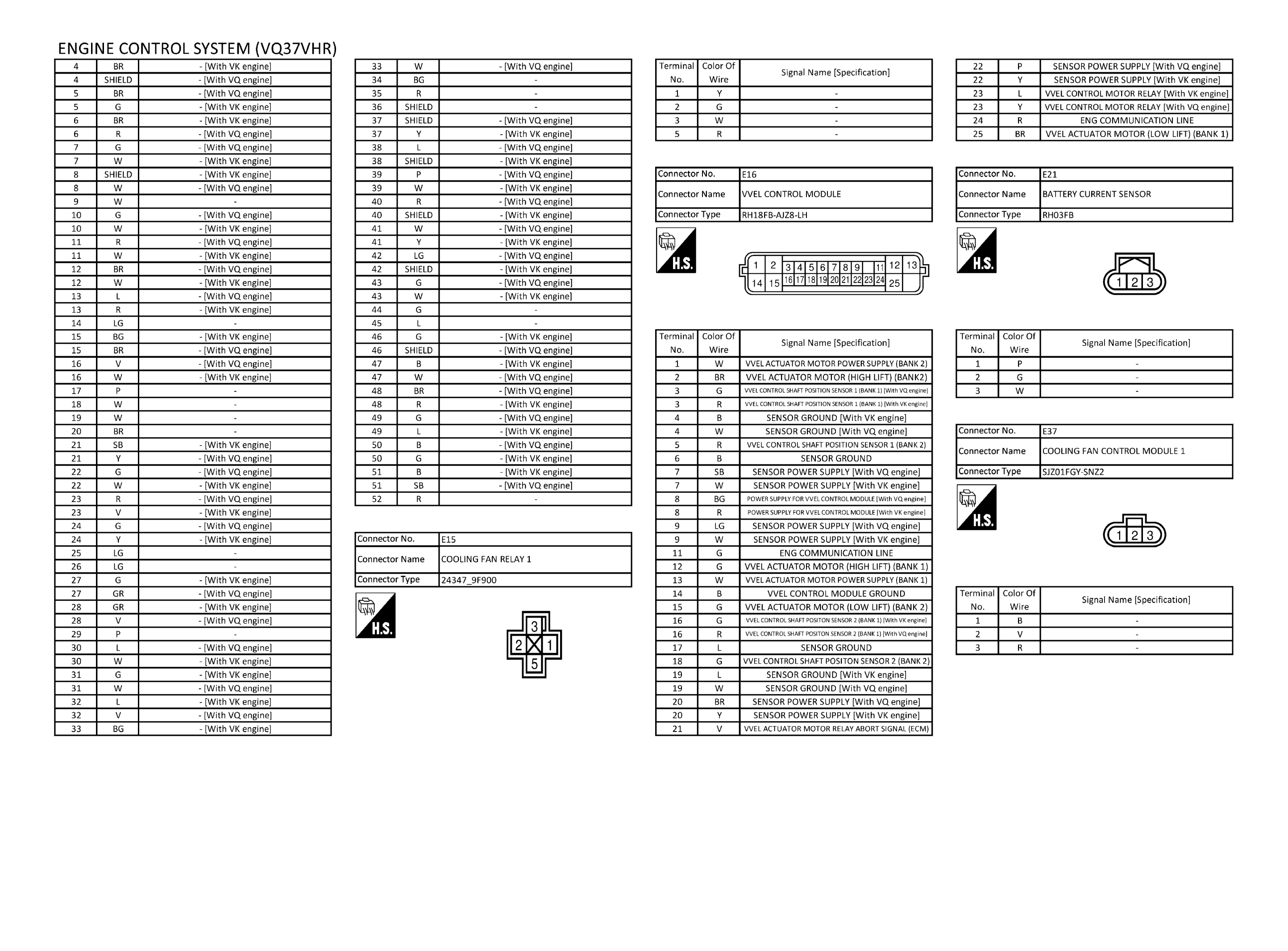

GNSJRBWE0476GB-476

Courtesy of NISSAN NORTH AMERICA, INC.

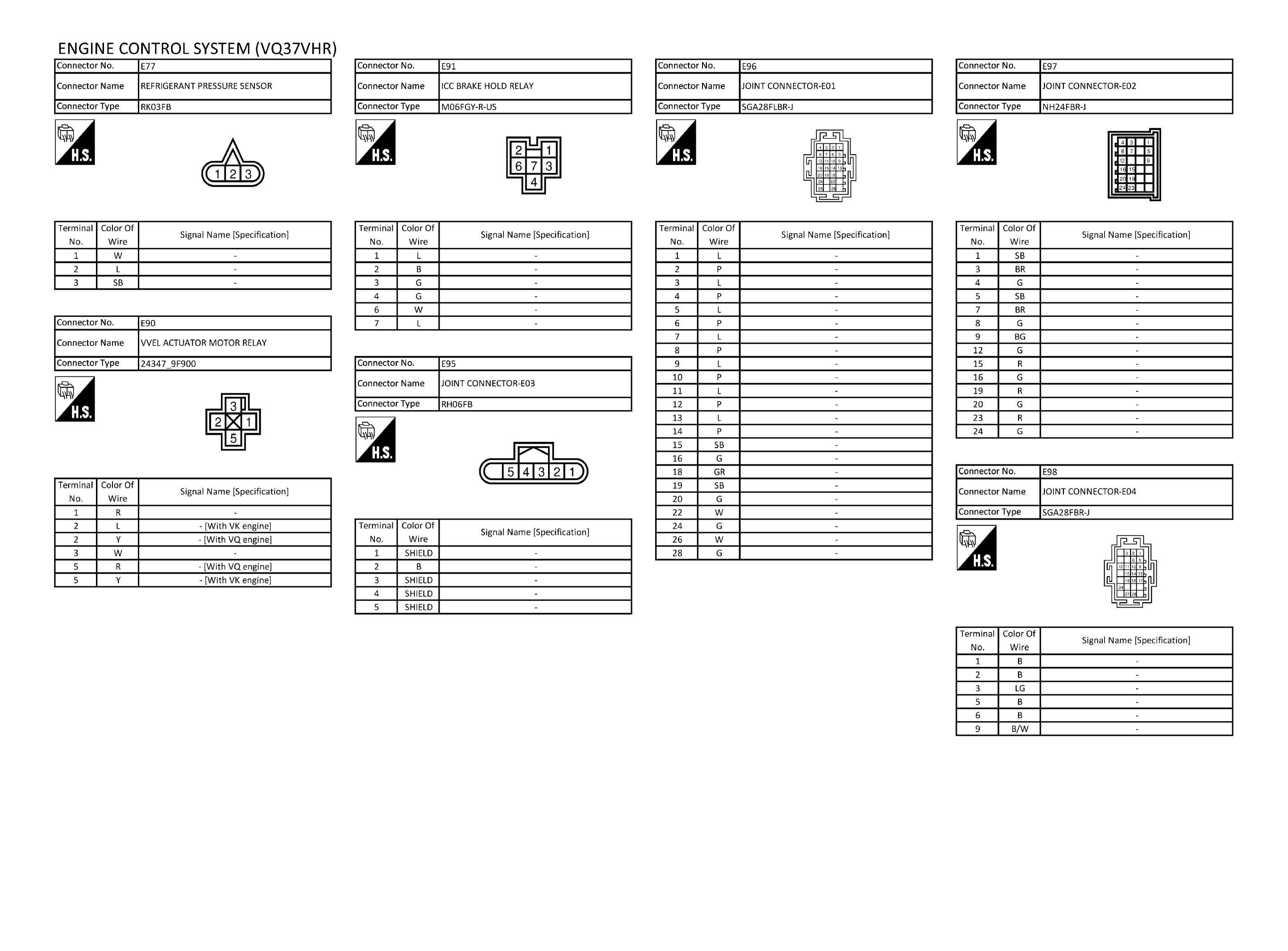

GNSJRBWE0477GB-477

Courtesy of NISSAN NORTH AMERICA, INC.

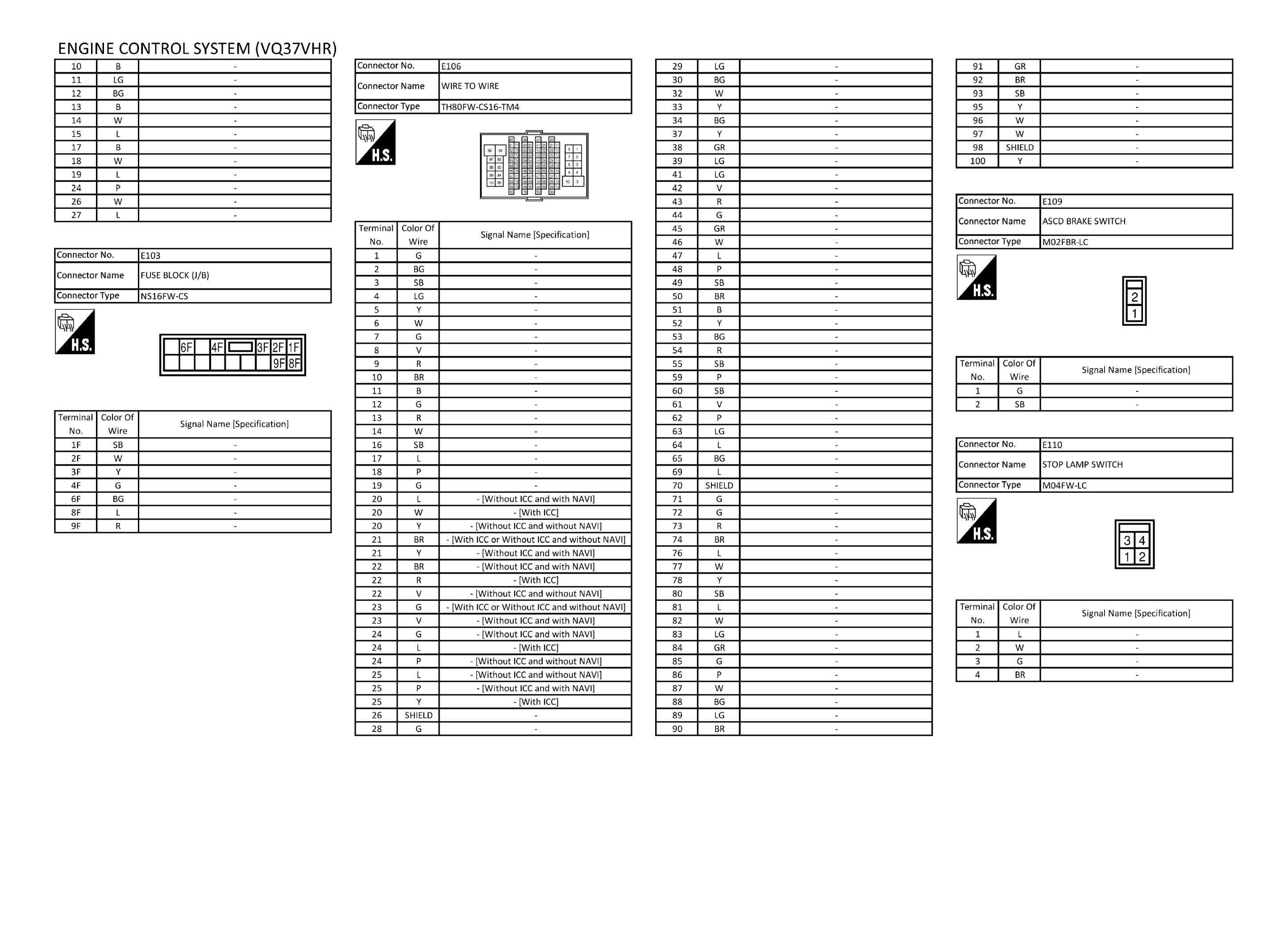

GNSJRBWE0478GB-478

Courtesy of NISSAN NORTH AMERICA, INC.

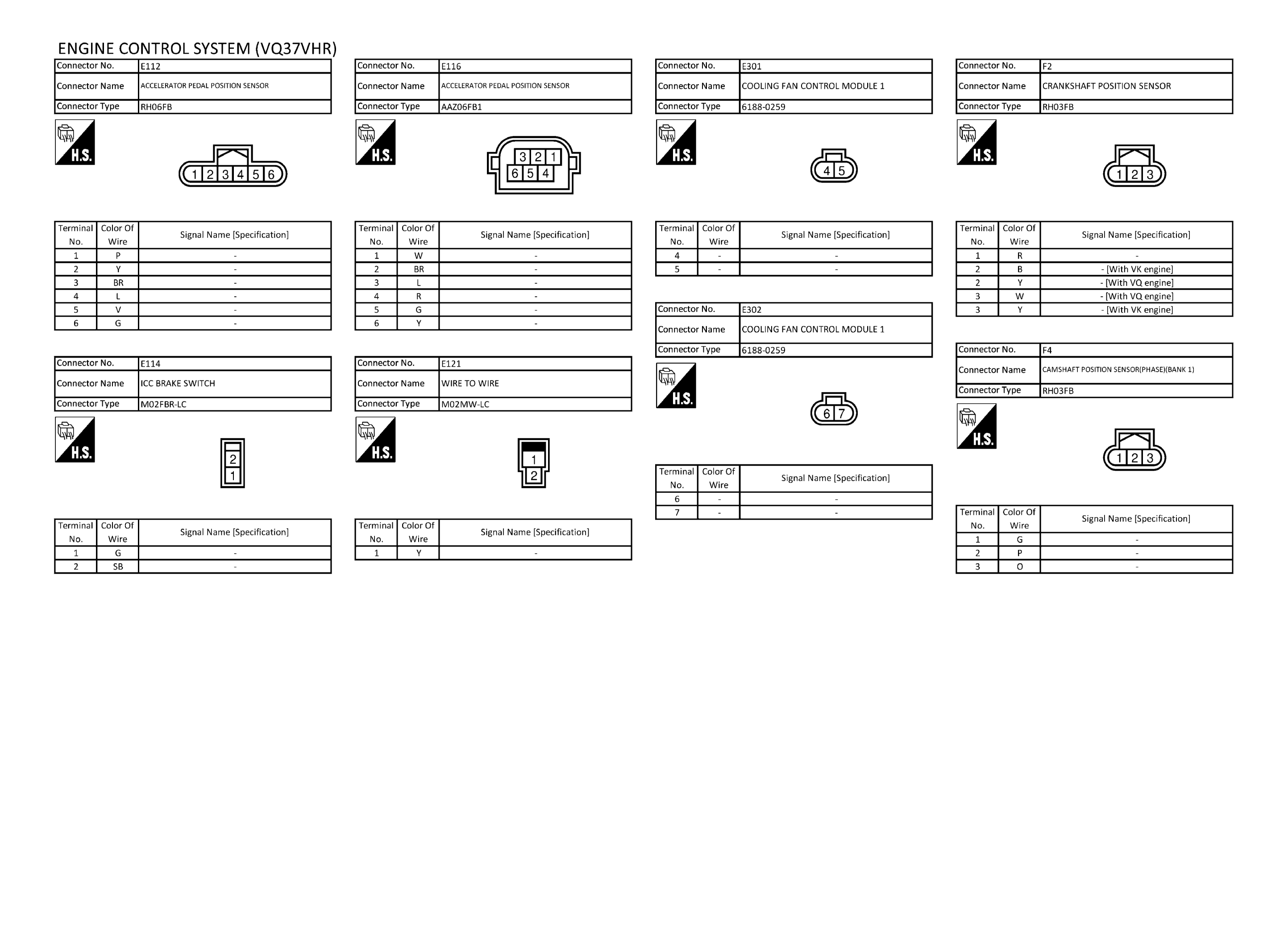

GNSJRBWE0479GB-479

Courtesy of NISSAN NORTH AMERICA, INC.

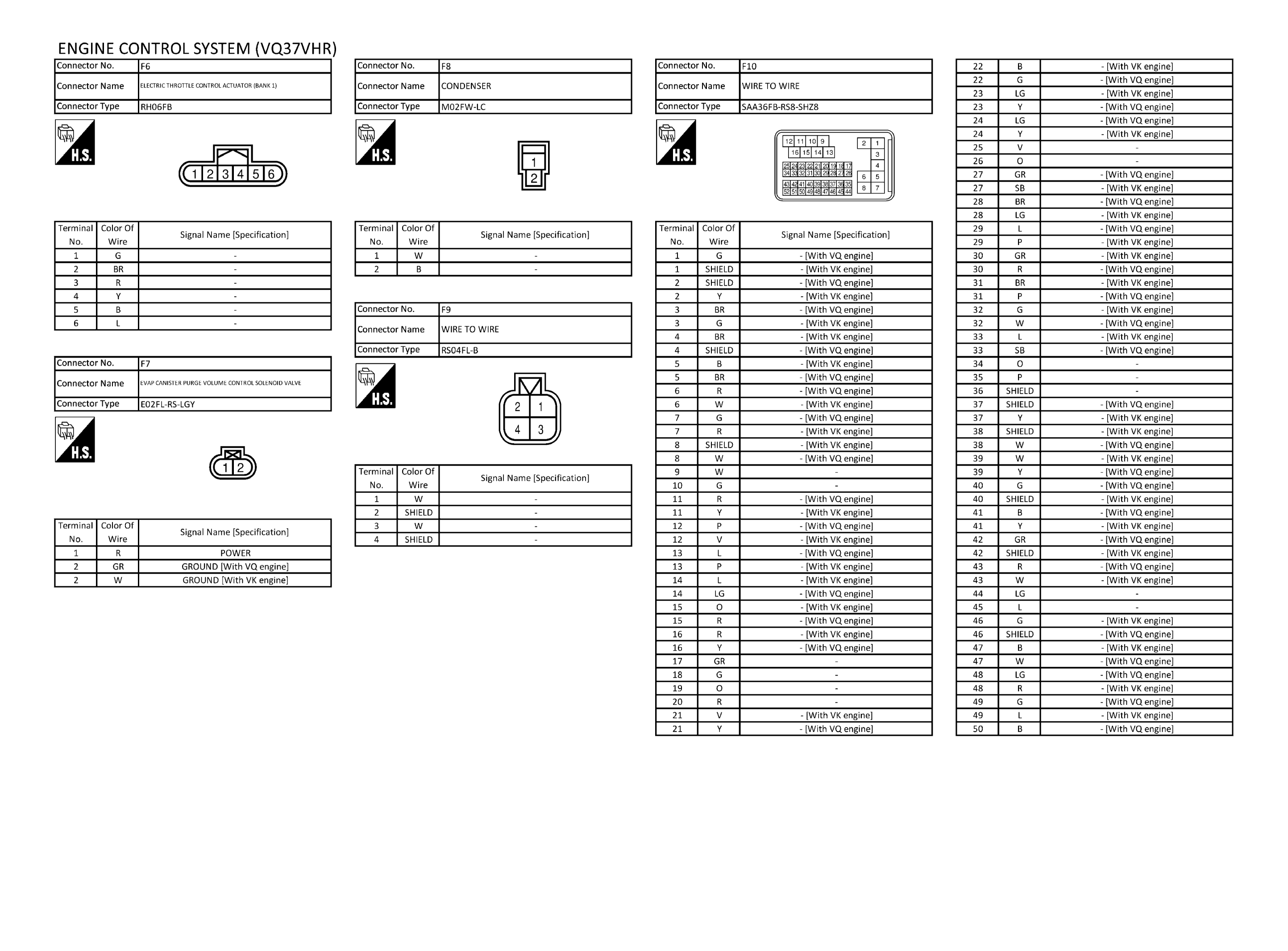

GNSJRBWE0480GB-480

Courtesy of NISSAN NORTH AMERICA, INC.

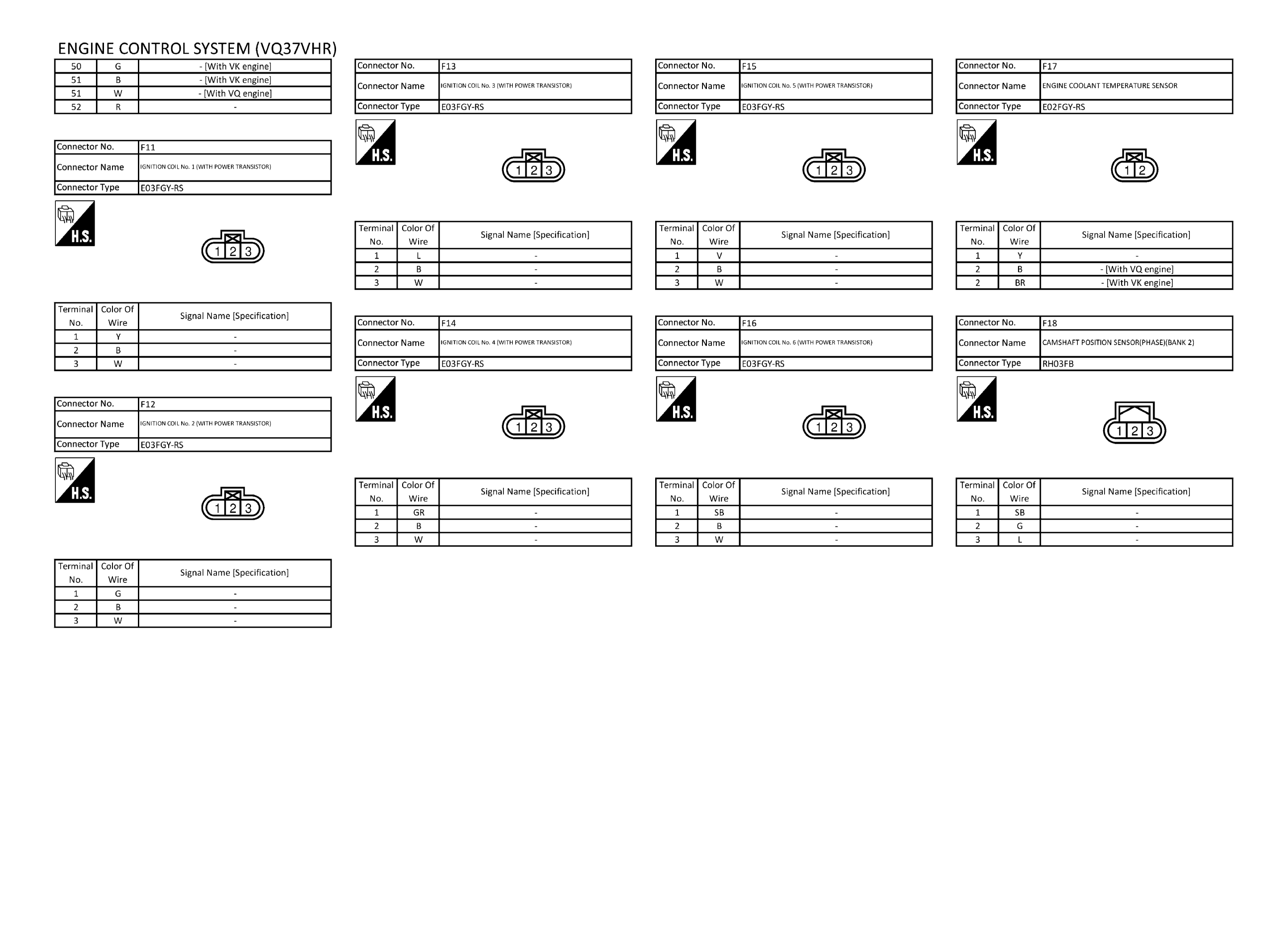

GNSJRBWE0481GB-481

Courtesy of NISSAN NORTH AMERICA, INC.

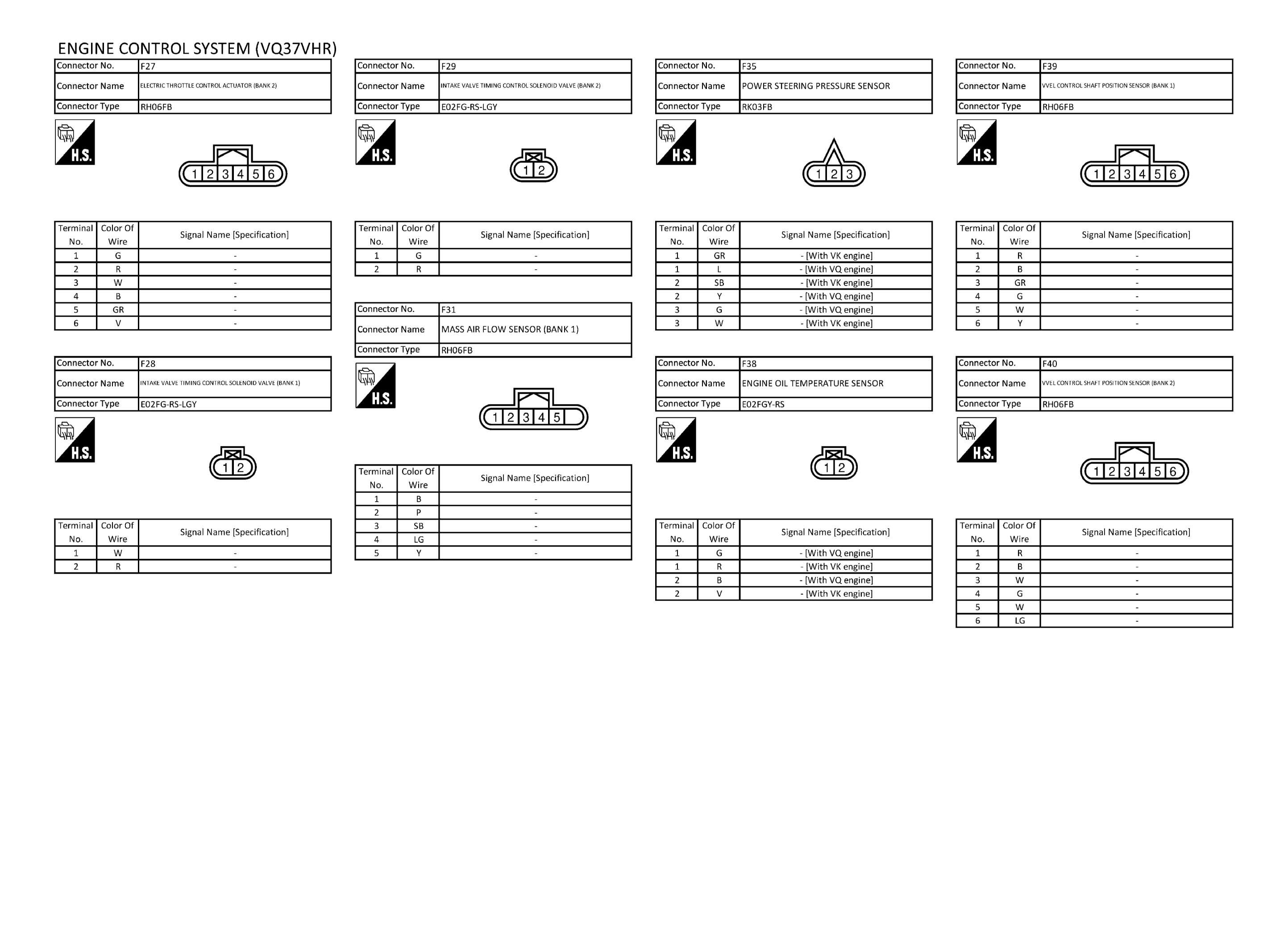

GNSJRBWE0482GB-482

Courtesy of NISSAN NORTH AMERICA, INC.

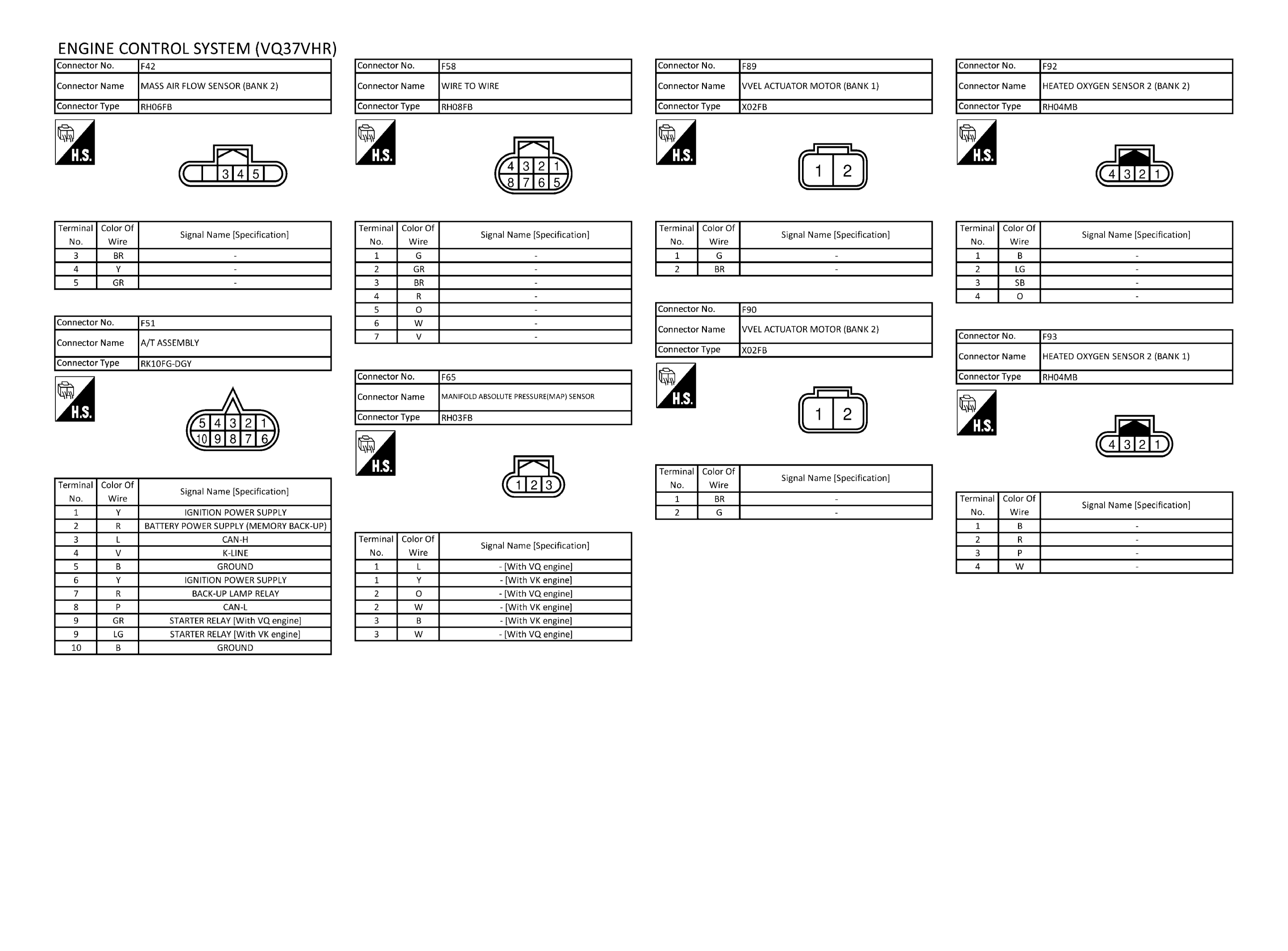

GNSJRBWE0483GB-483

Courtesy of NISSAN NORTH AMERICA, INC.

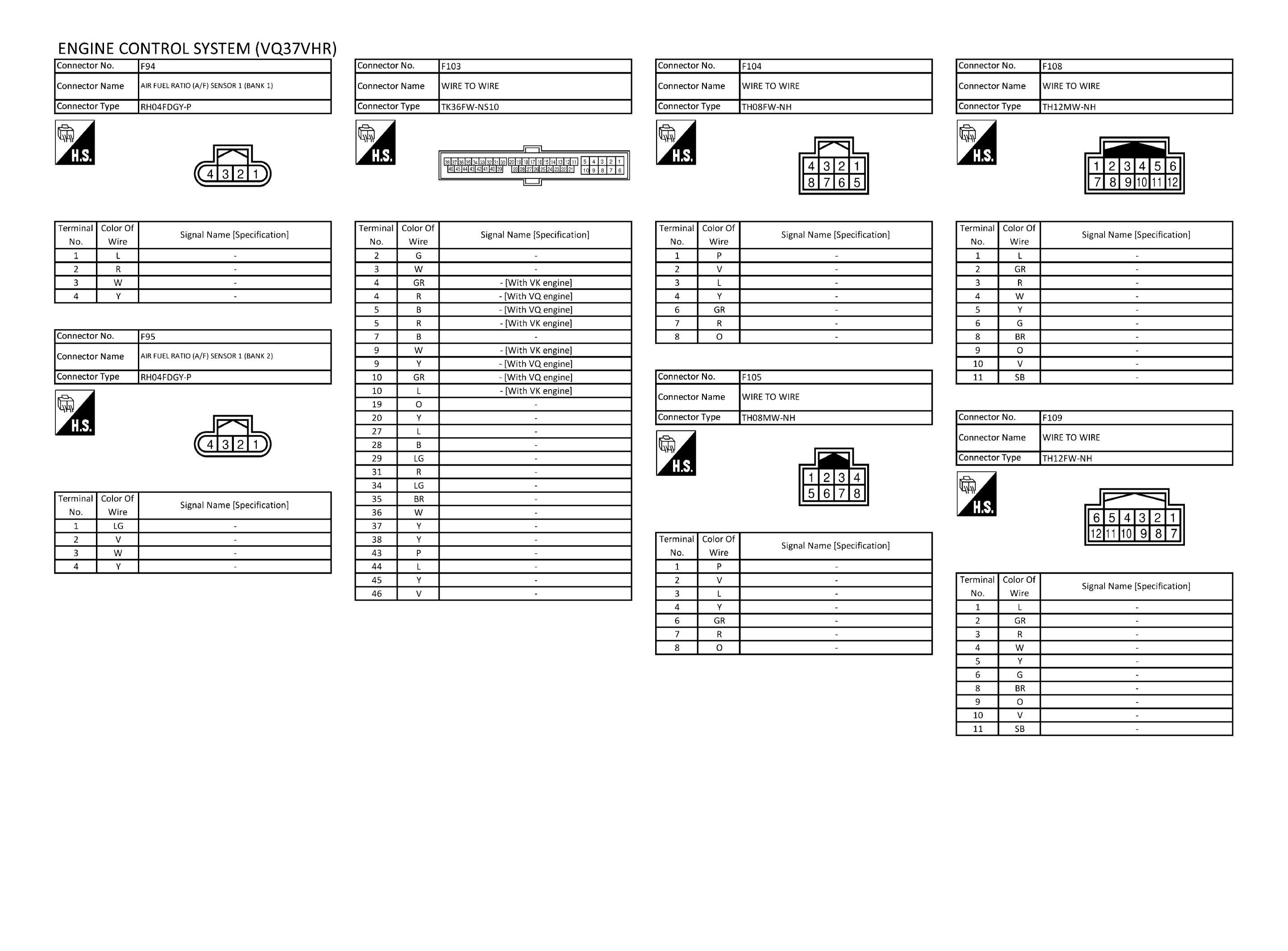

GNSJRBWE0484GB-484

Courtesy of NISSAN NORTH AMERICA, INC.

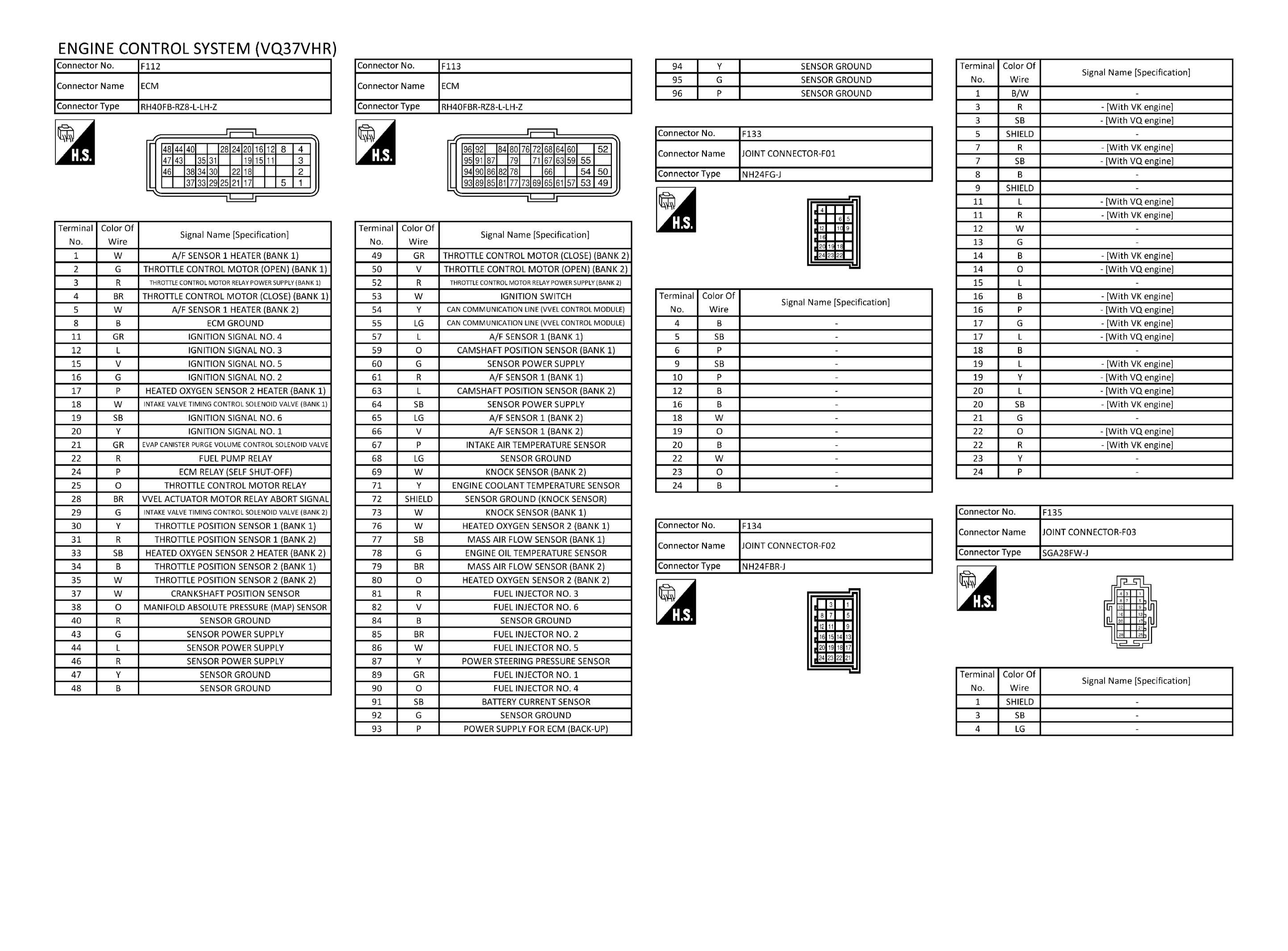

GNSJRBWE0485GB-485

Courtesy of NISSAN NORTH AMERICA, INC.

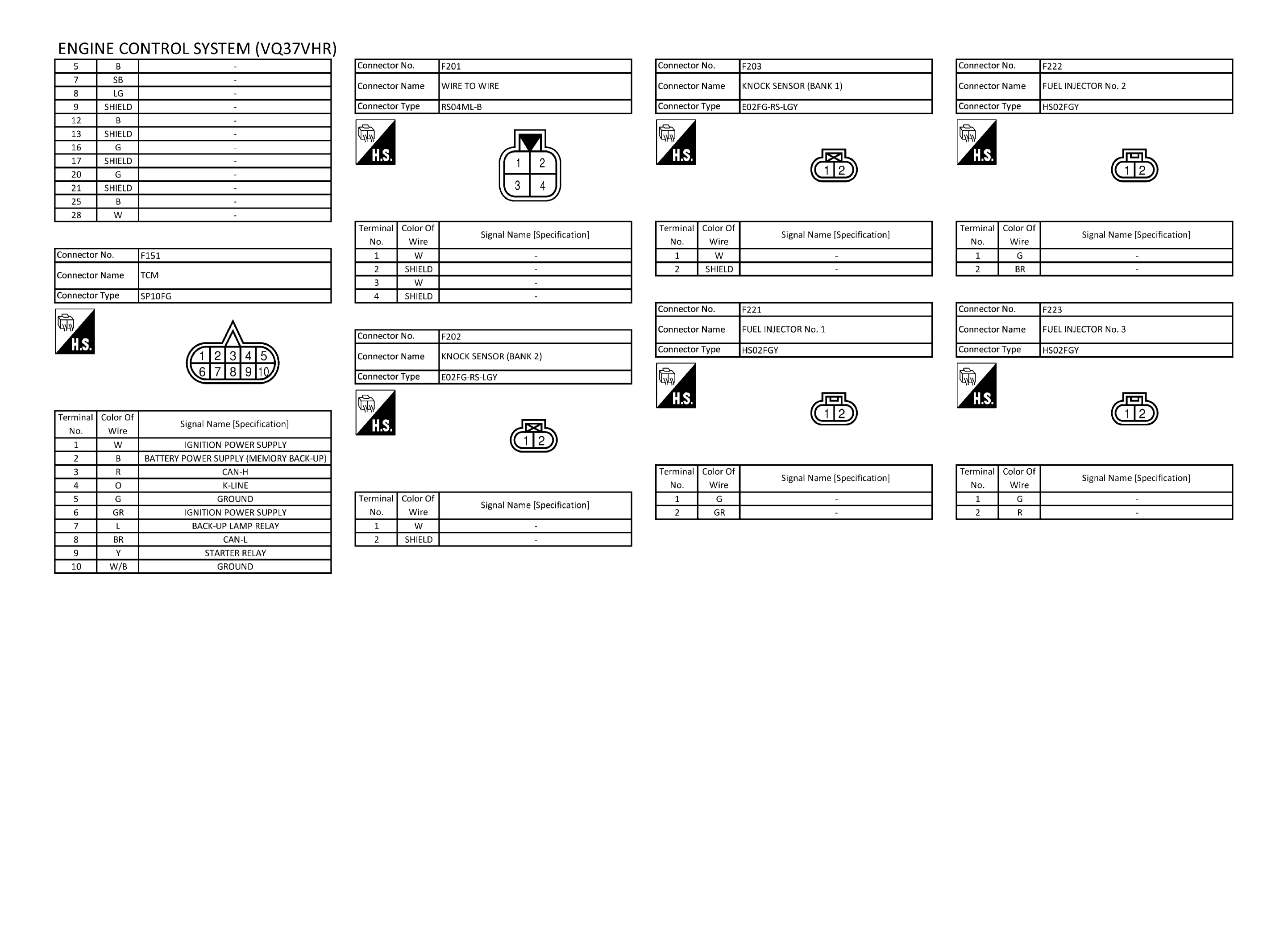

GNSJRBWE0486GB-486

Courtesy of NISSAN NORTH AMERICA, INC.

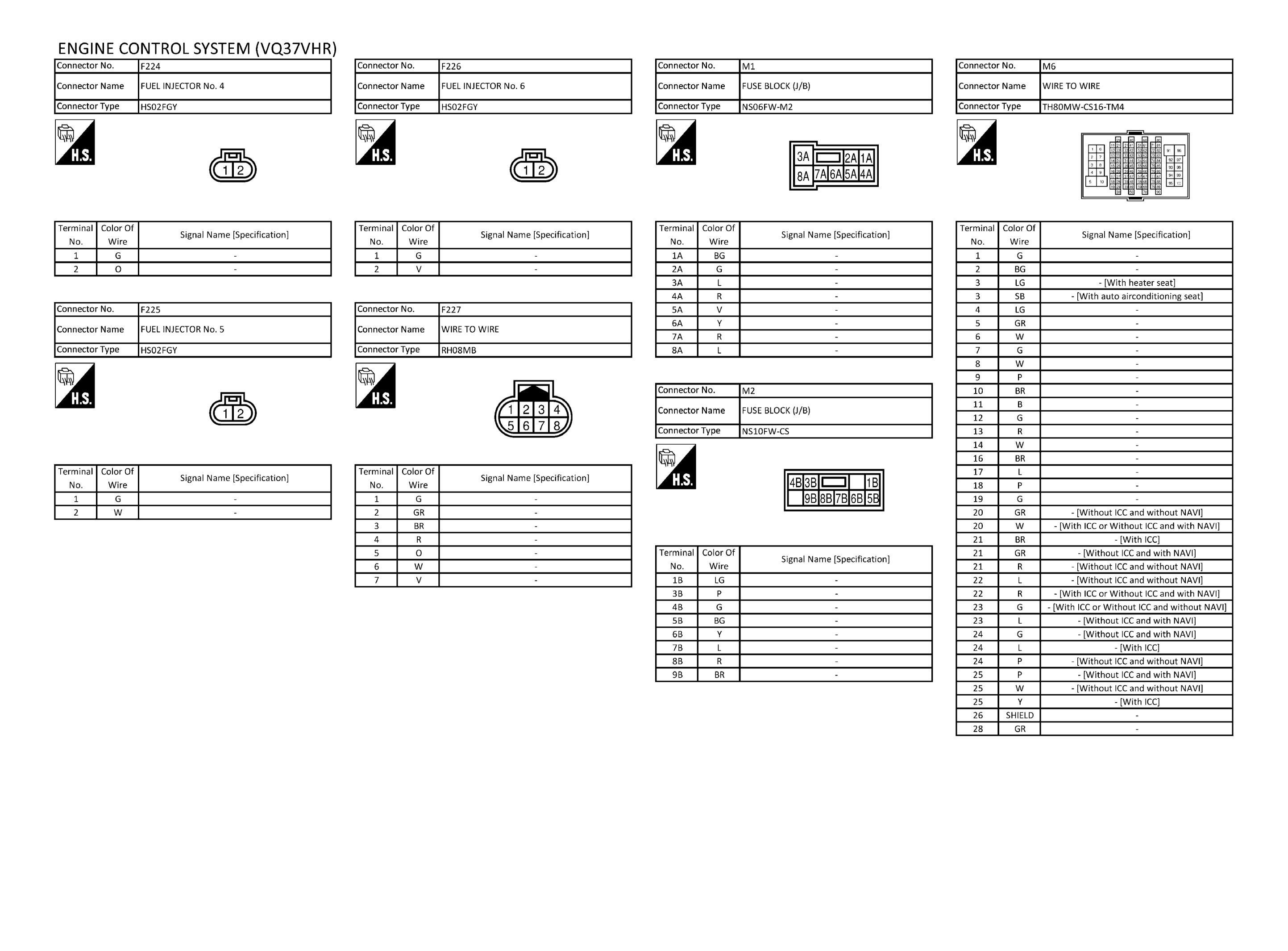

GNSJRBWE0487GB-487

Courtesy of NISSAN NORTH AMERICA, INC.

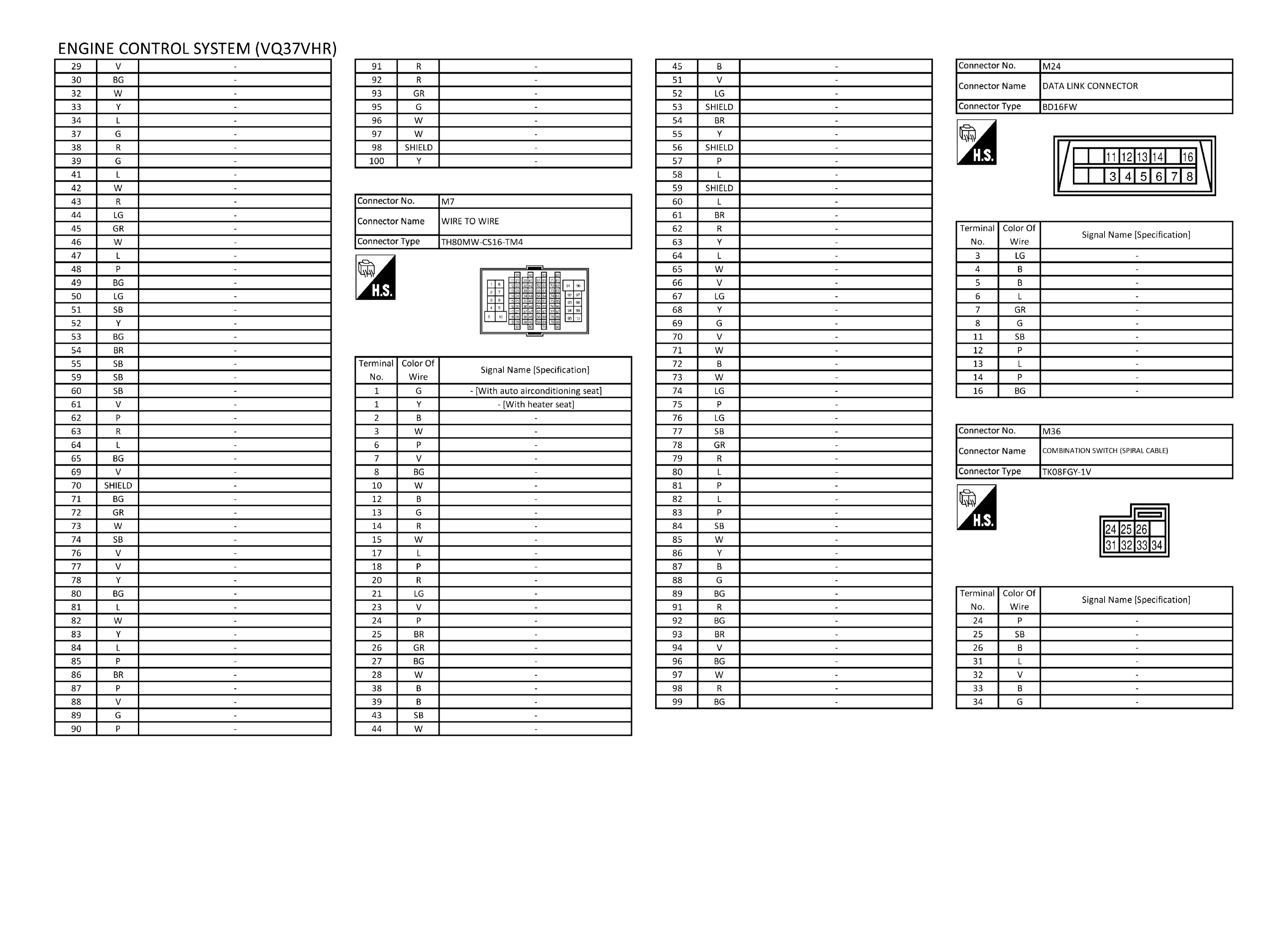

GNSJRBWE0488GB-488

Courtesy of NISSAN NORTH AMERICA, INC.

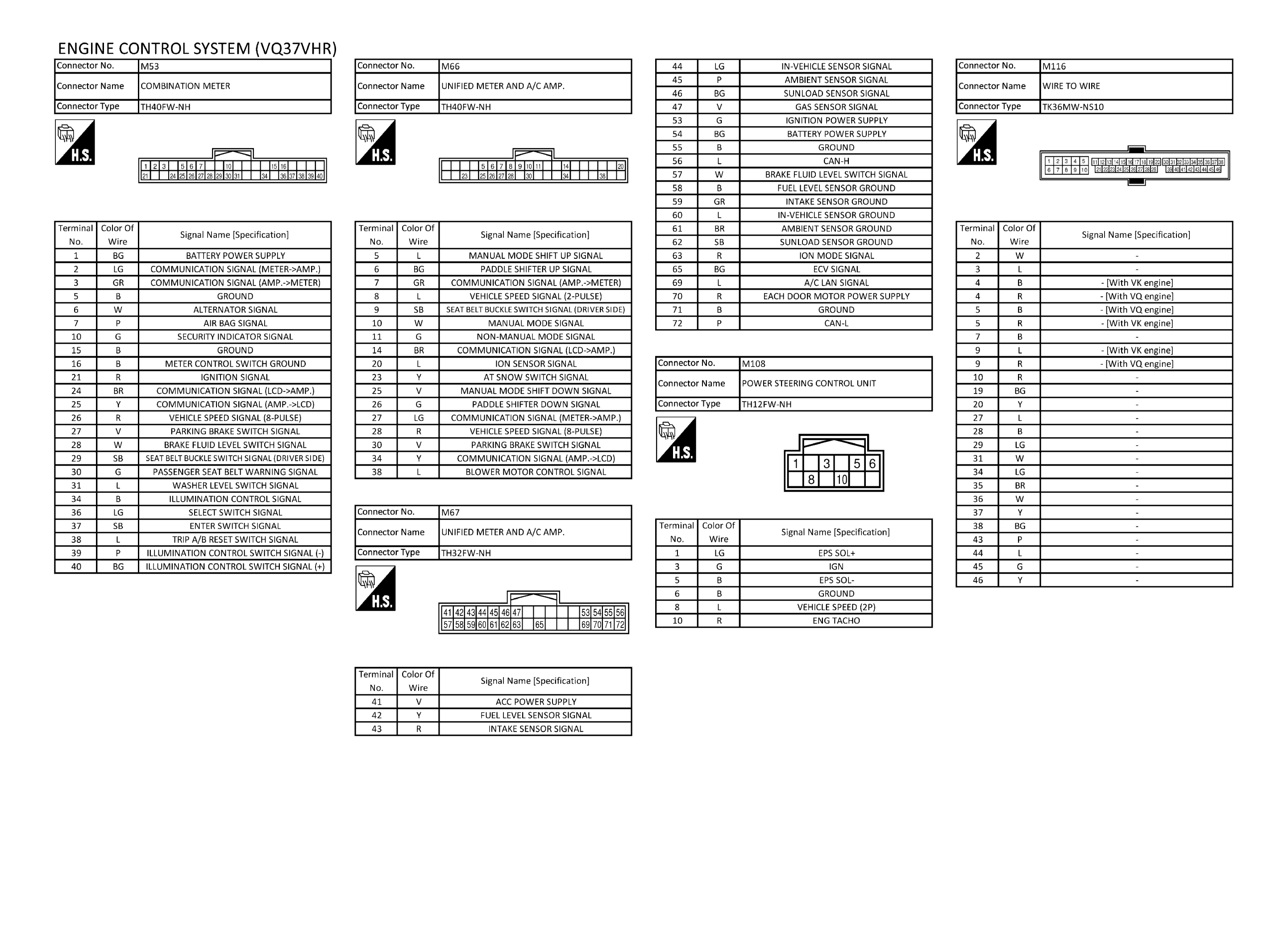

GNSJRBWE0489GB-489

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRBWE0490GB-490

Courtesy of NISSAN NORTH AMERICA, INC.

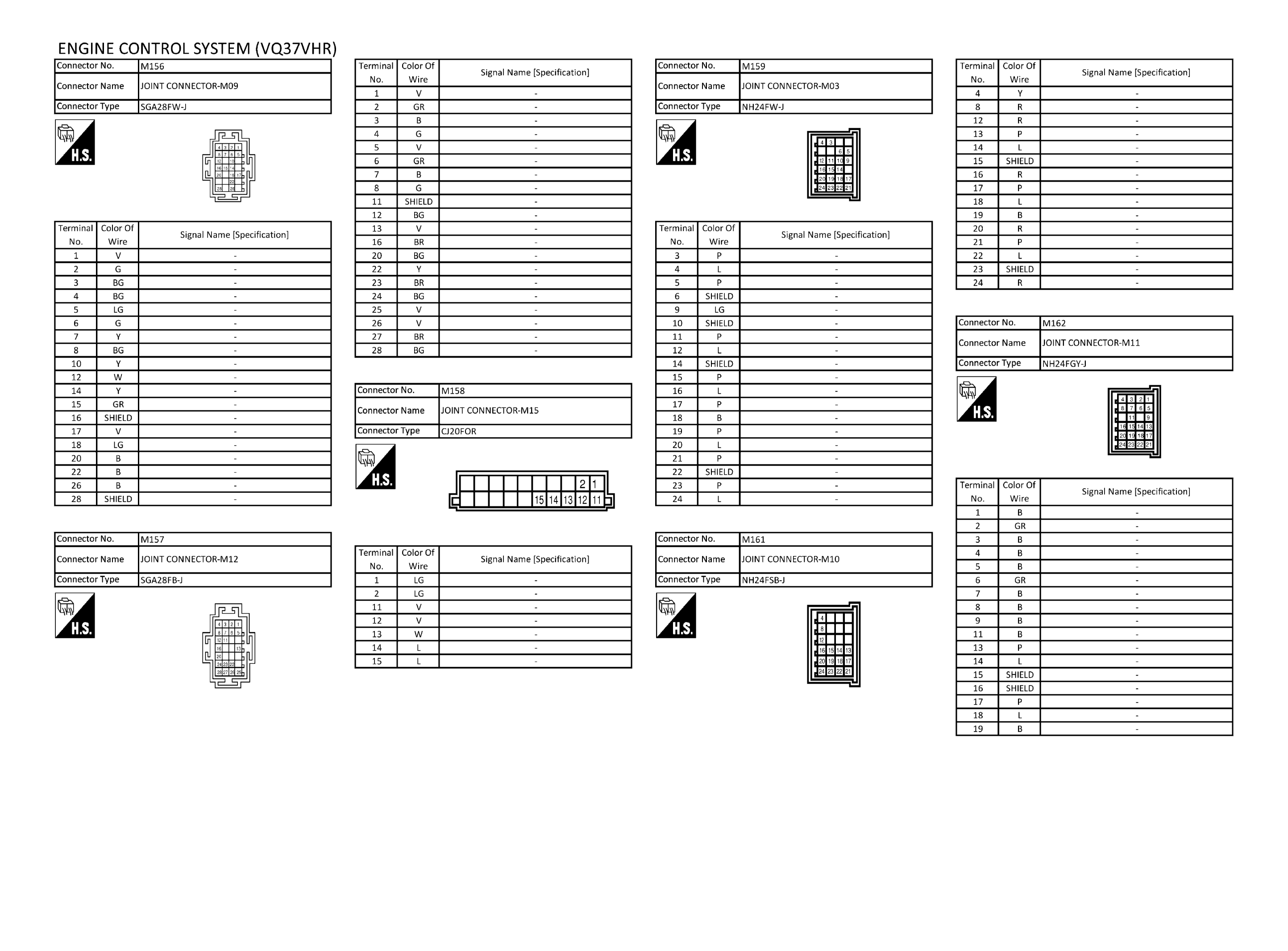

GNSJRBWE0491GB-491

Courtesy of NISSAN NORTH AMERICA, INC.

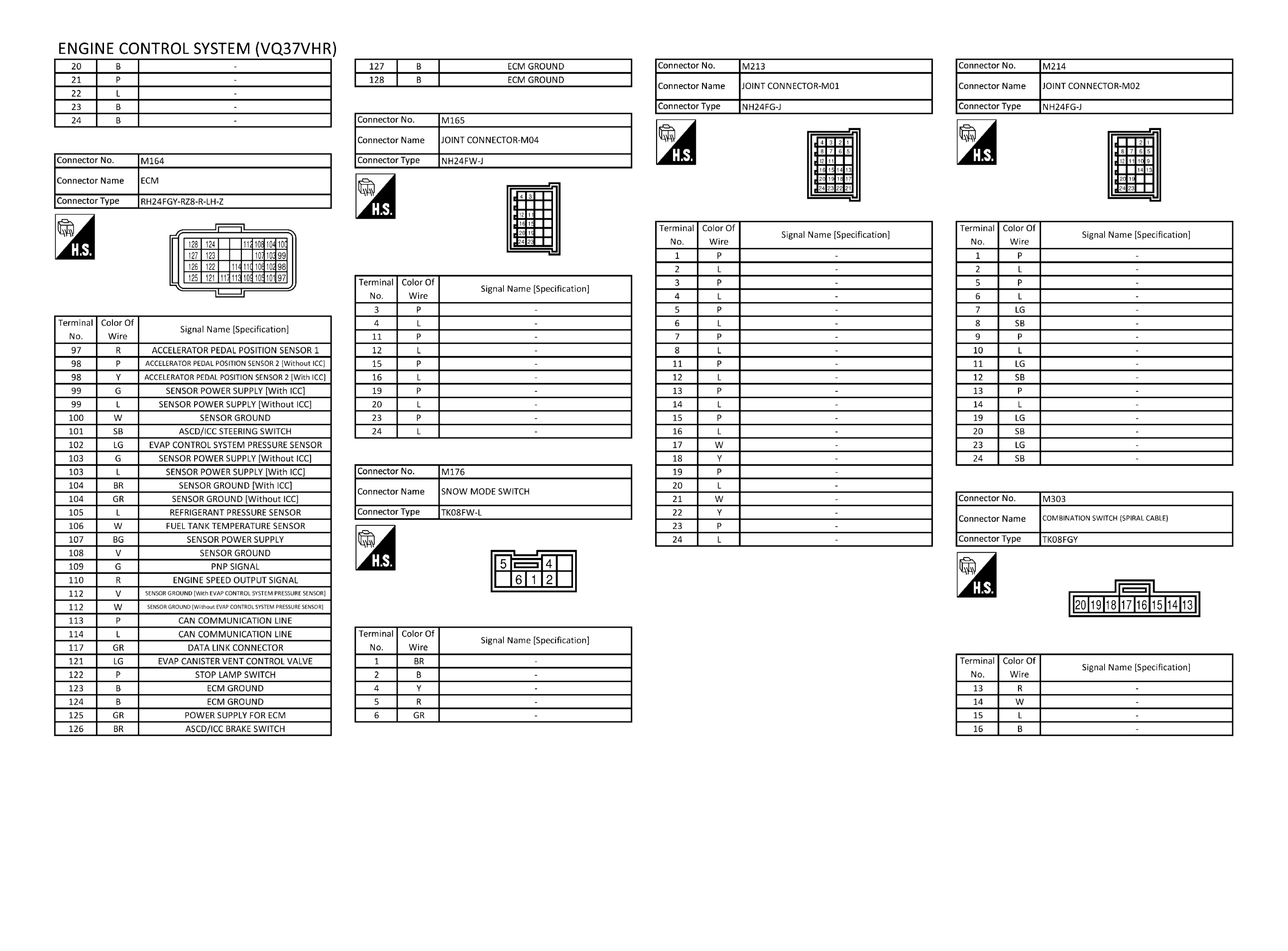

GNSJRBWE0492GB-492

Courtesy of NISSAN NORTH AMERICA, INC.

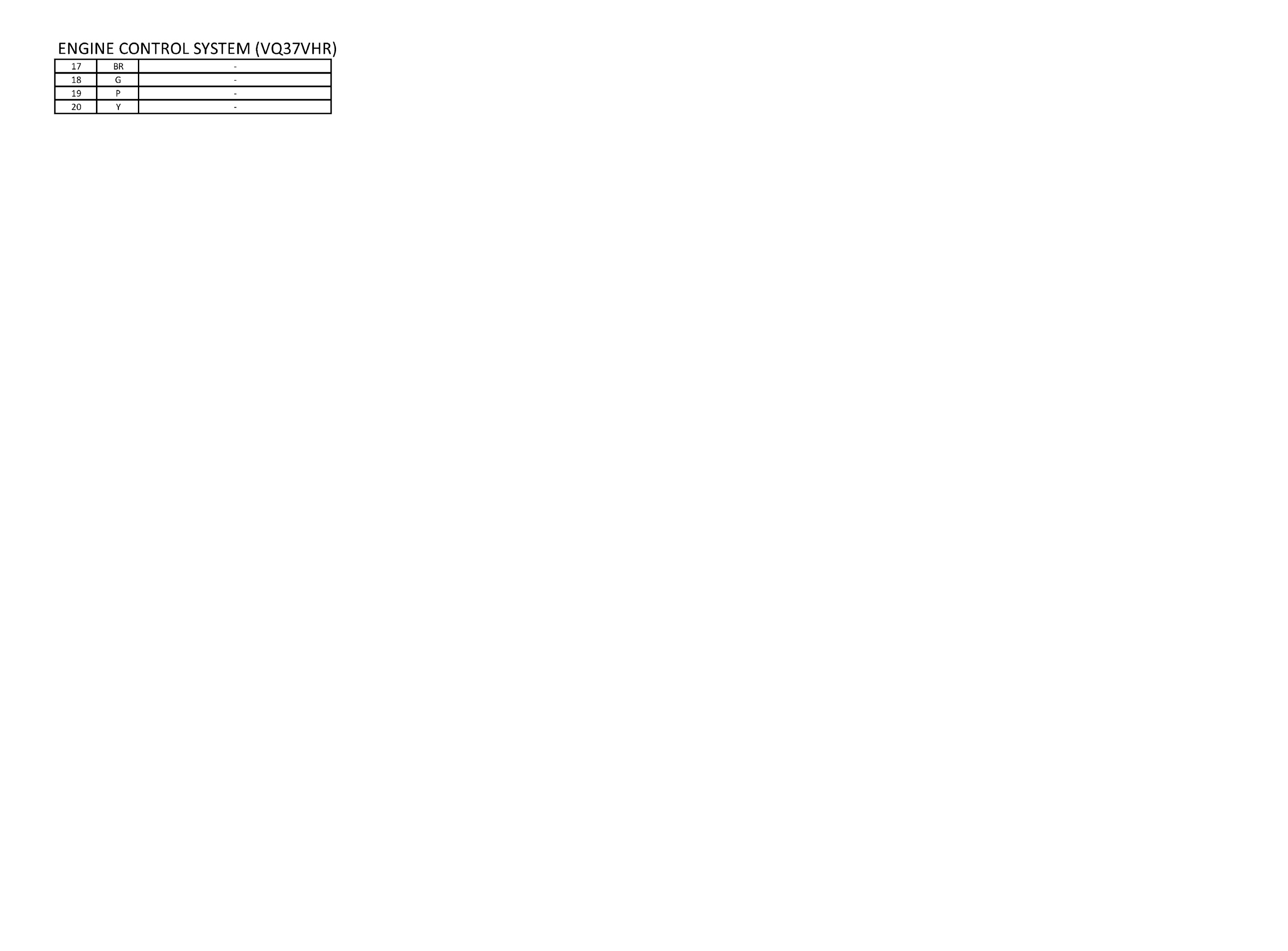

GNSJRBWE0493GB-493

Courtesy of NISSAN NORTH AMERICA, INC.
