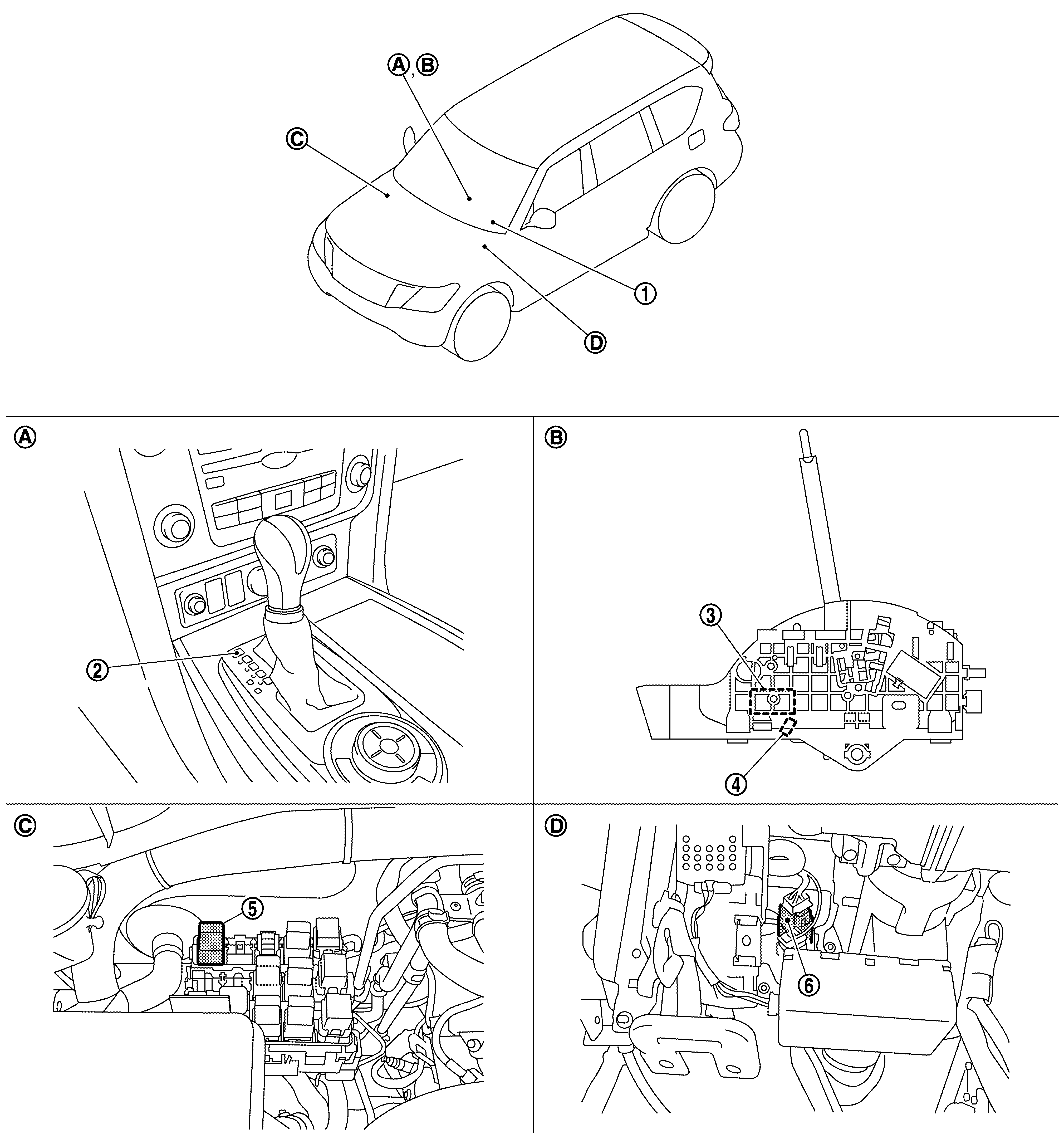

Component Location
| 1. | BCM Refer to COMPONENT LOCATION . |
2. | Shift lock cover * | 3. | Shift lock solenoid |
| 4. | Park position switch | 5. | Remote engine start relay | 6. | Stop lamp switch |
| A. | Center console | B. | A/T shift selector assembly | C. | Engine room, RH |
| D. | Brake pedal, upper | ||||
| *: Shift lock release button becomes operative by removing shift lock cover. | |||||
