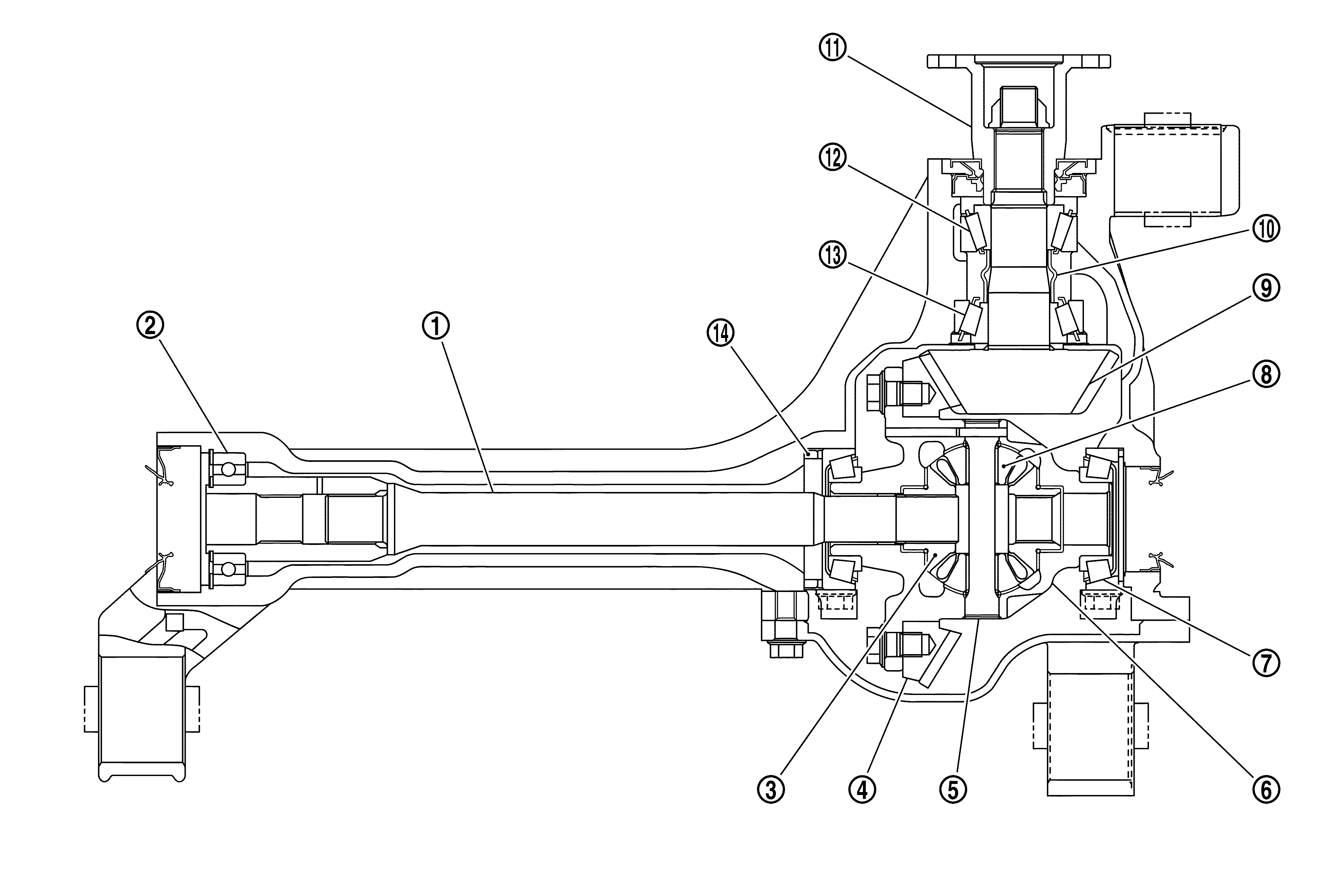

Sectional View
WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Side shaft |
2. |
Side shaft bearing |
3. |
Side gear |
| 4. |
Drive gear |
5. |
Pinion mate shaft |
6. |
Differential case |
| 7. |
Side bearing |
8. |
Pinion mate gear |
9. |
Drive pinion |
| 10. |
Collapsible spacer |
11. |
Companion flange |
12. |
Pinion front bearing |
| 13. |
Pinion rear bearing |
14. |
Housing spacer |
|
|
