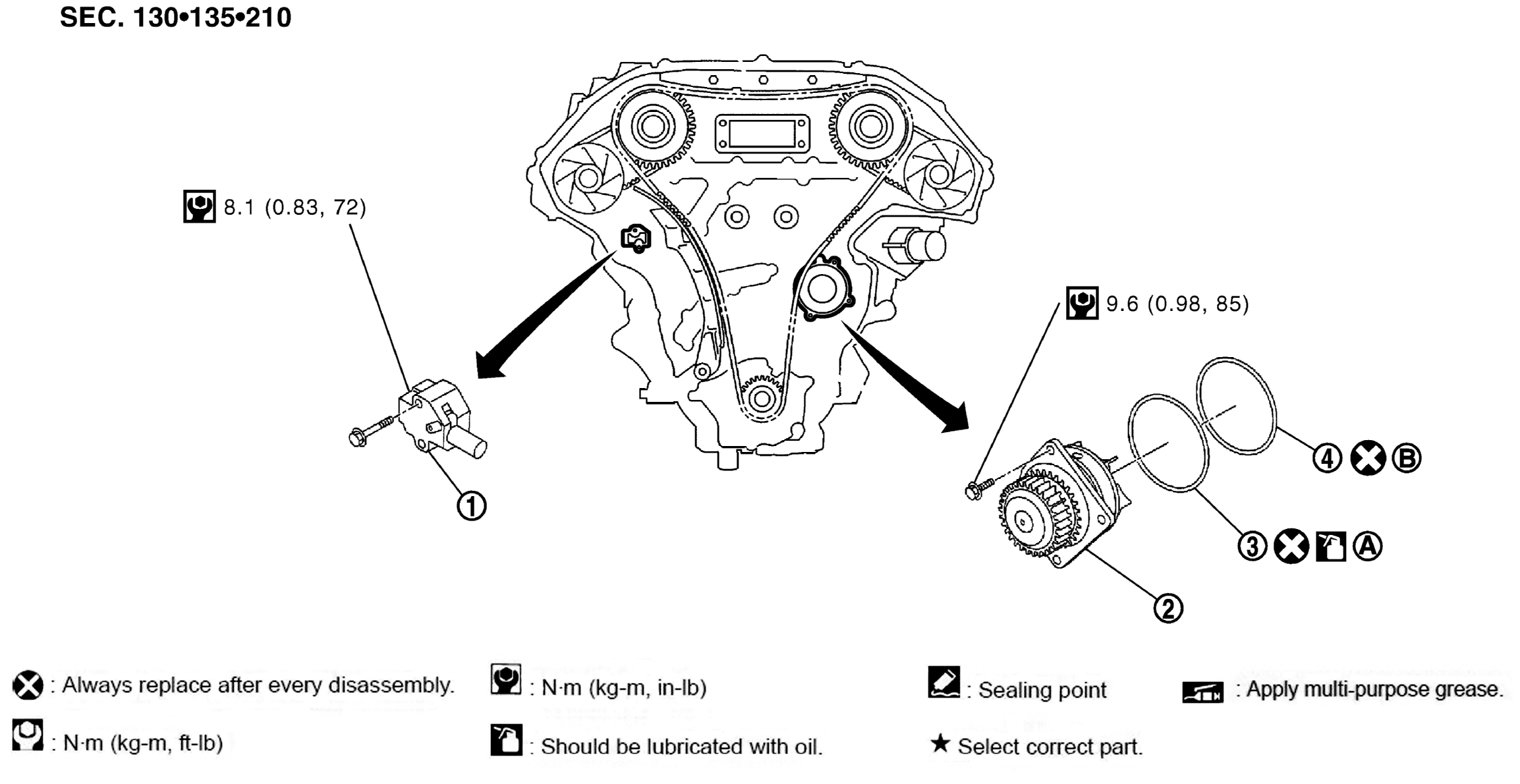

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Timing chain tensioner (primary) | 2. | Water pump | 3. | O-ring |
| 4. | O-ring | ||||
| A. | Identify with yellow paint mark | B. | Identify with light blue paint mark Apply engine coolant |
||
| Refer to COMPONENTS for symbols in the illustration. | |||||
