Component Location

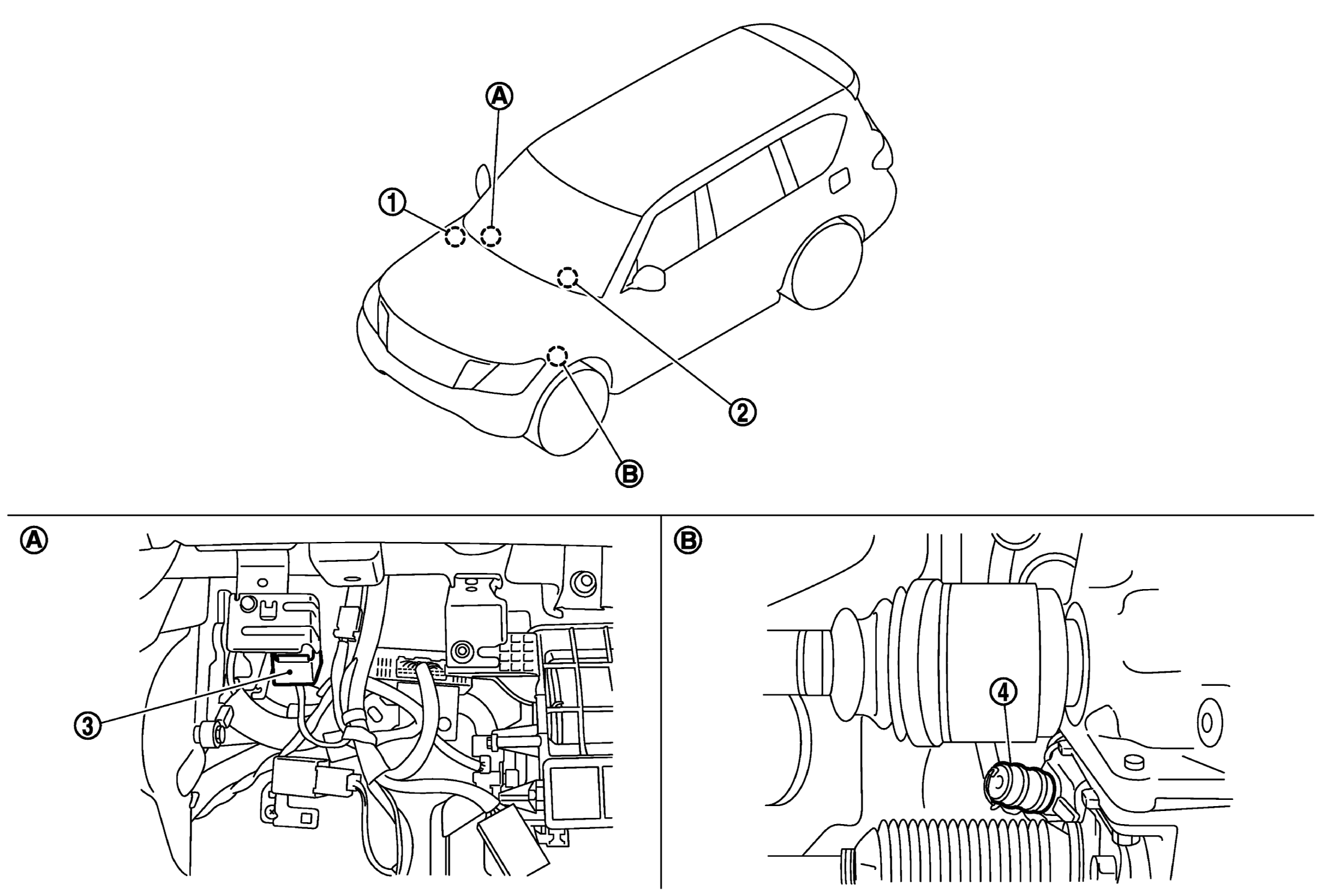

GNSJPGIB0006ZZ-006Courtesy of NISSAN NORTH AMERICA, INC.
1. ECM
Refer to COMPONENT LOCATION .		 2. Combination meter
Refer to COMPONENT LOCATION .		 3. Power steering control unit
4. Power steering solenoid valve
A. Glove box assembly removed B. Steering gear assembly
