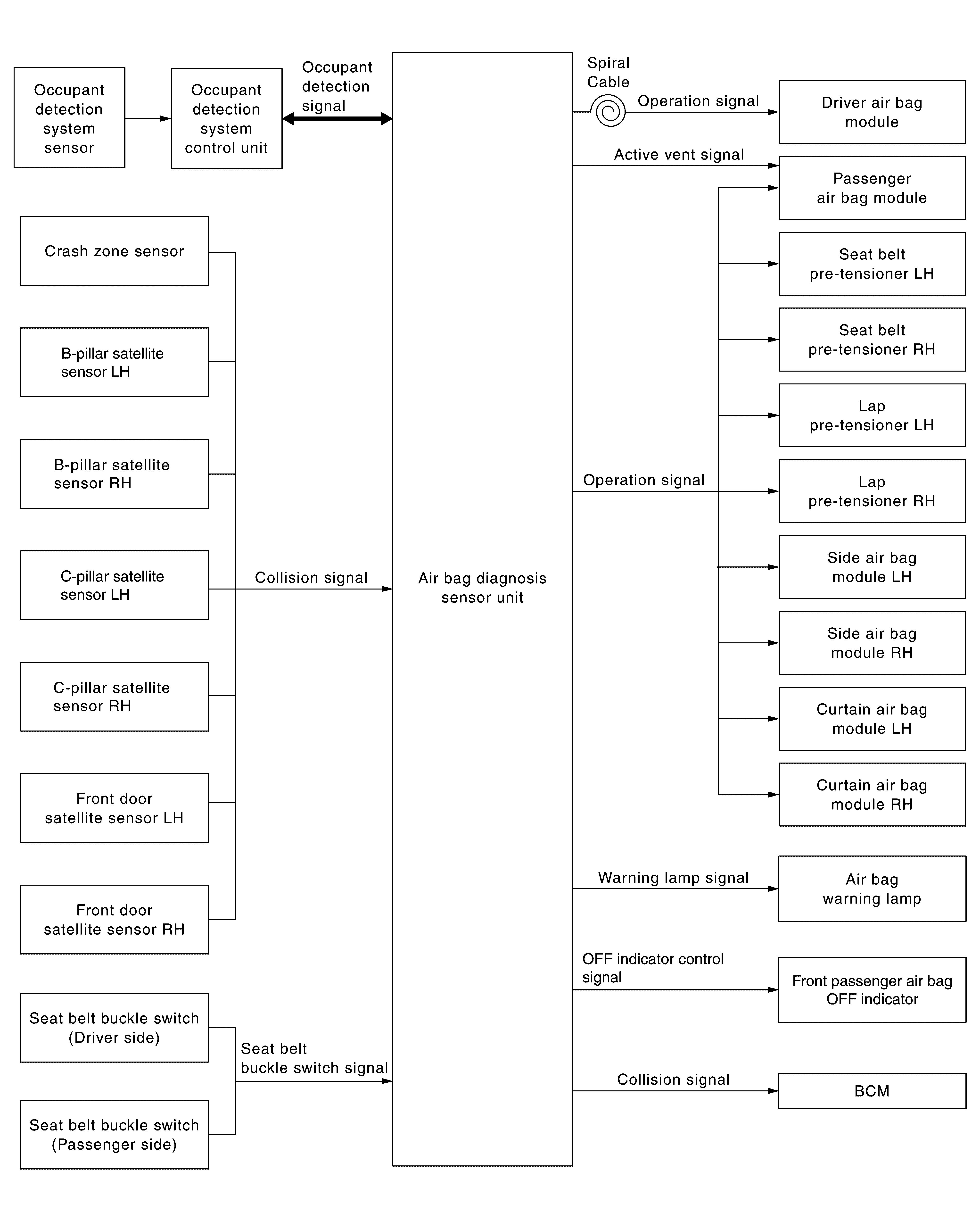

System Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: For models for Mexico, front door satellite sensors and active vent signal are not applied.
