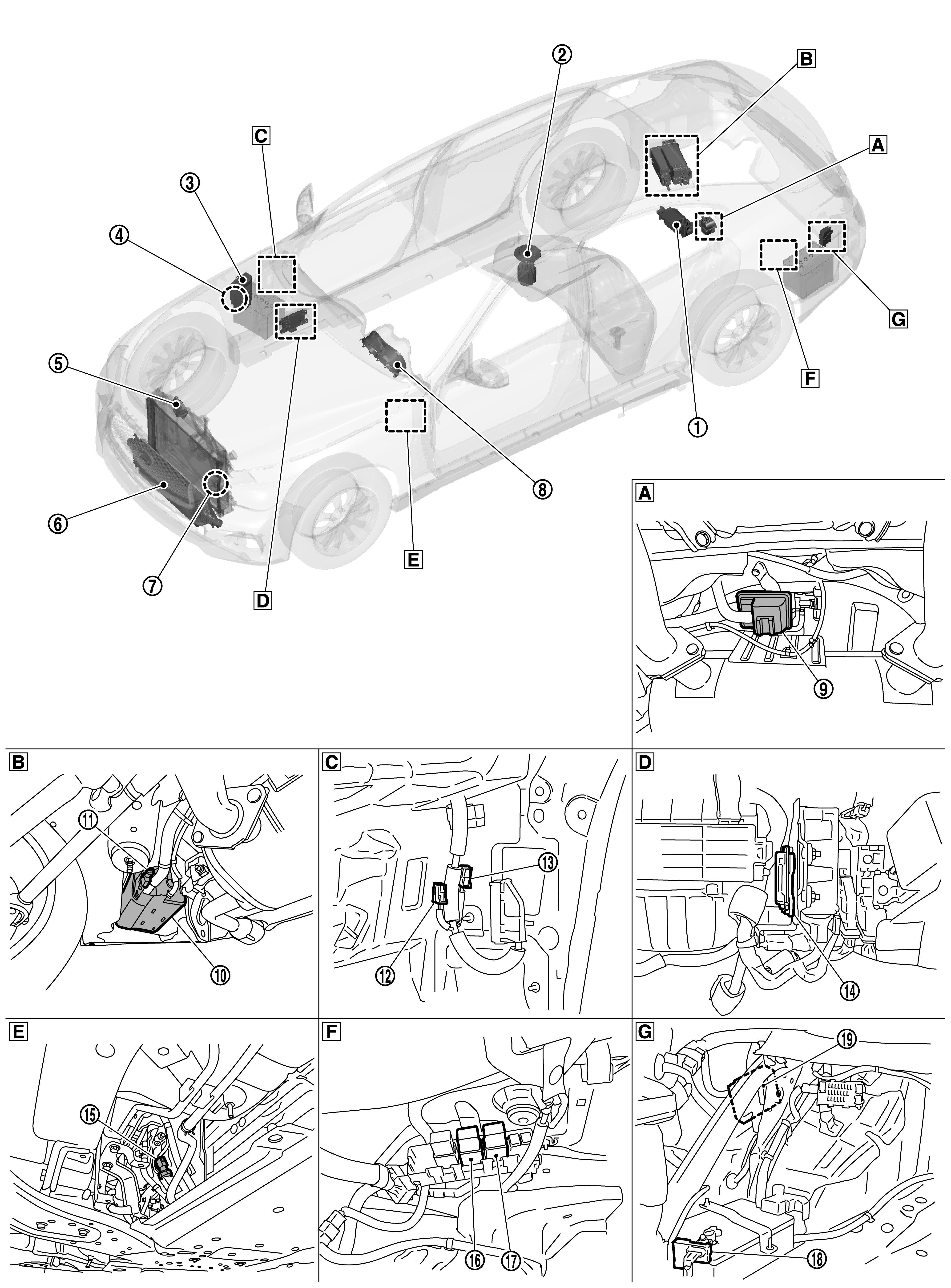

Vehicle Compartment
|
|
Center of main muffler |
|
Right side of main muffler |
|
Behind of glove box |
|
|
Behind of glove box |
|
Left side of transmission |
|
Upper left side of trunk room |
|
|
Left side of trunk room |
|
No. |
Component |
Function |
|
|
Sub battery relay |
|
|
|
Fuel pump |
|
|
|
IPDM E/R |
IPDM E/R controls the internal relays. When CAN communication with ECM is impossible, IPDM E/R performs fail-safe control. |
|
|
Main battery current sensor (With main battery temperature sensor) |
Main Battery Current Sensor (With Main Battery Temperature Sensor) |
|
|
Cooling fan control module |
|
|
|
Charge air cooler |
|
|
|
Refrigerant pressure sensor |
|
|
|
Combination meter |
|
|
|
Fuel tank pressure sensor |
Senses fuel tank pressure. |
|
|
EVAP canister |
EVAP canister stores the generated fuel vapors in the sealed fuel tank to activated charcoals of EVAP canister when the engine is not operating or when refueling to the fuel tank. |
|
|
EVAP canister vent control valve |
The ability to seal the vent is necessary for the on board diagnosis of other evaporative emission control system components. This solenoid valve is used only for diagnosis, and usually remains opened. |
|
|
Resistor 2 |
|
|
|
Resistor 1 |
|
|
|
EMCM (Energy Management Control Module) |
|
|
|
Fuel pressure sensor |
|
|
|
EMCM relay |
|
|
|
Ignition relay |
|
|
|
Sub battery current sensor (With sub battery temperature sensor) |
Sub Battery Current Sensor (With Sub Battery Temperature Sensor) |
|
|
FPCM (Fuel Pump Control Module) |
