Exploded View

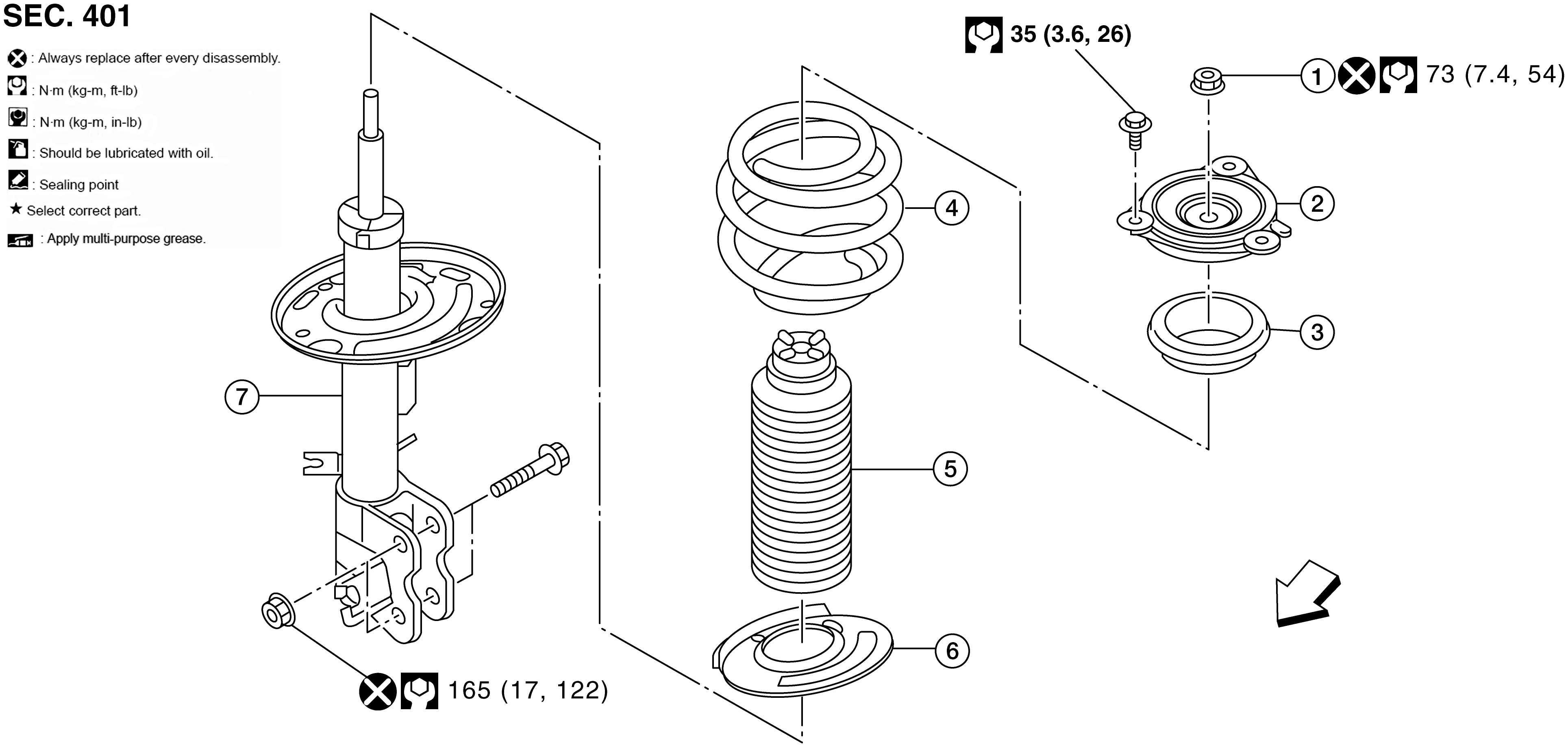

Fig 1: Front Coil Spring And Strut With Torque Specifications
GNSAWEIA0244GB-244Courtesy of NISSAN NORTH AMERICA, INC.

1.

Piston rod lock nut

2.

Strut mount insulator

3.

Strut mount bearing

4.

Coil spring

5.

Bound bumper

6.

Lower rubber seat

7.

Strut

SYMBOL

Front
