Exploded View

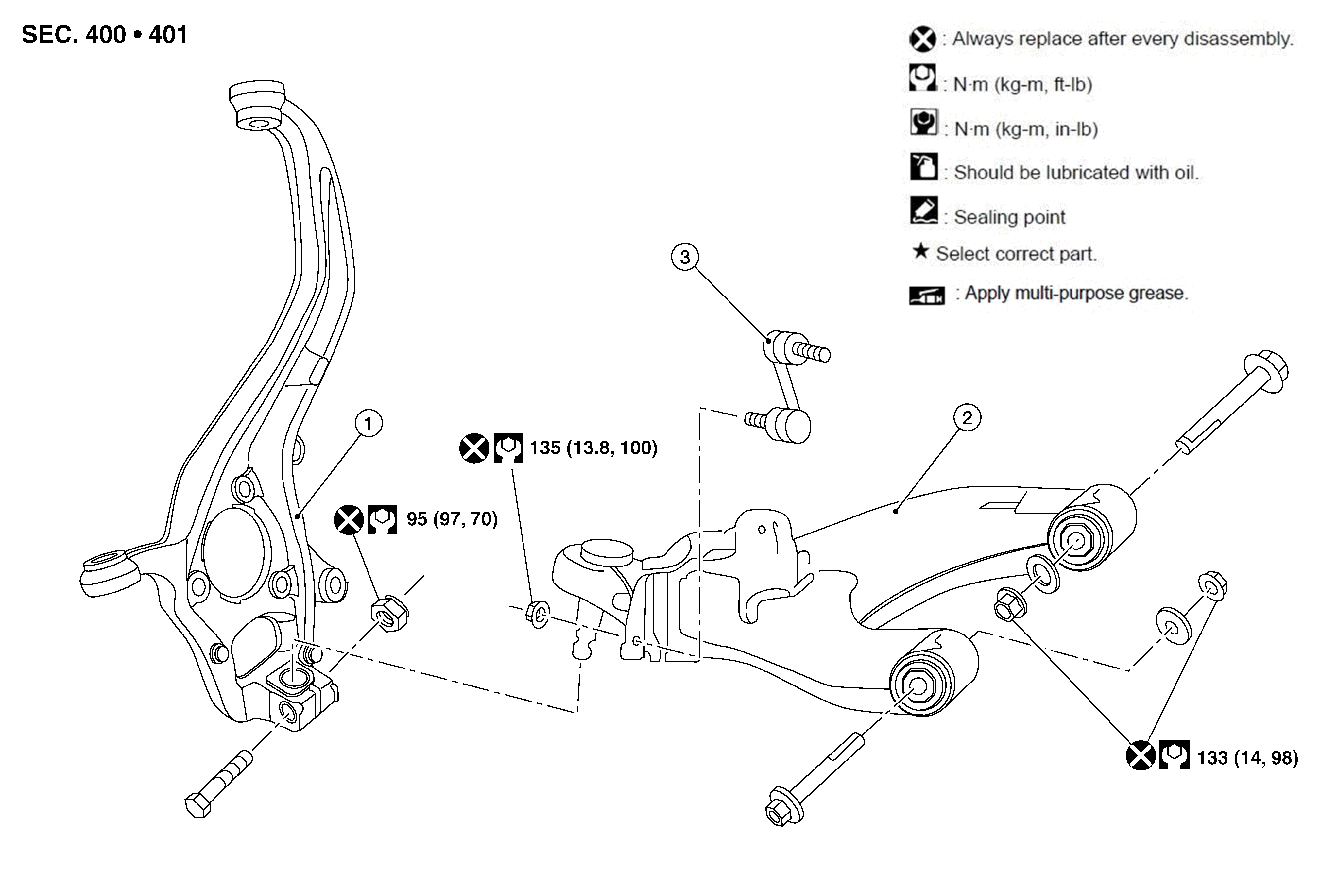

Fig 1: Transverse Link With Torque Specifications
GNSAWEIA0278Z-278Courtesy of NISSAN NORTH AMERICA, INC.

1.

Transverse link

2.

Front suspension member

SYMBOL

Front
