Description
>>
System
>>
Vehicle Security System
>>

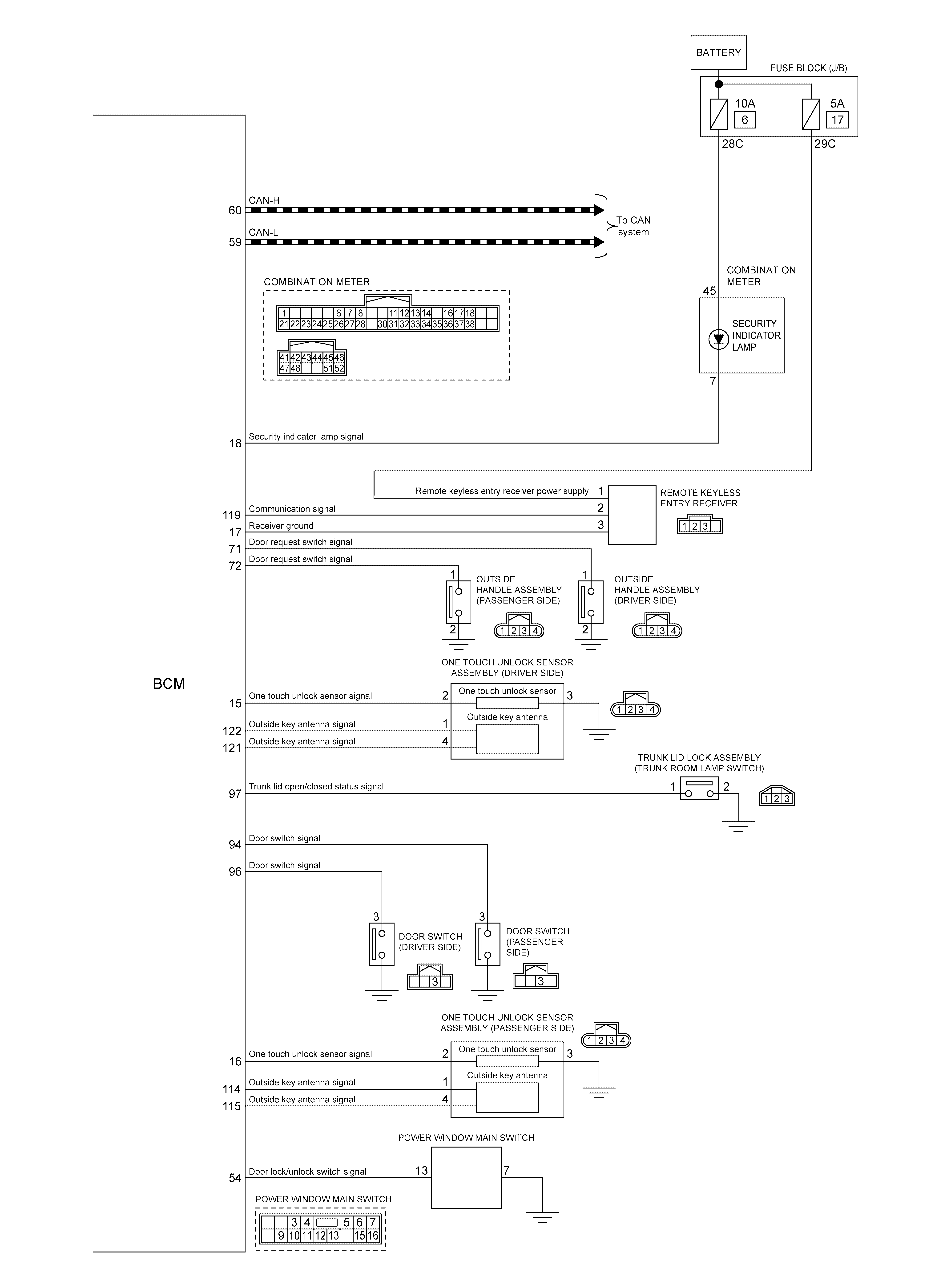

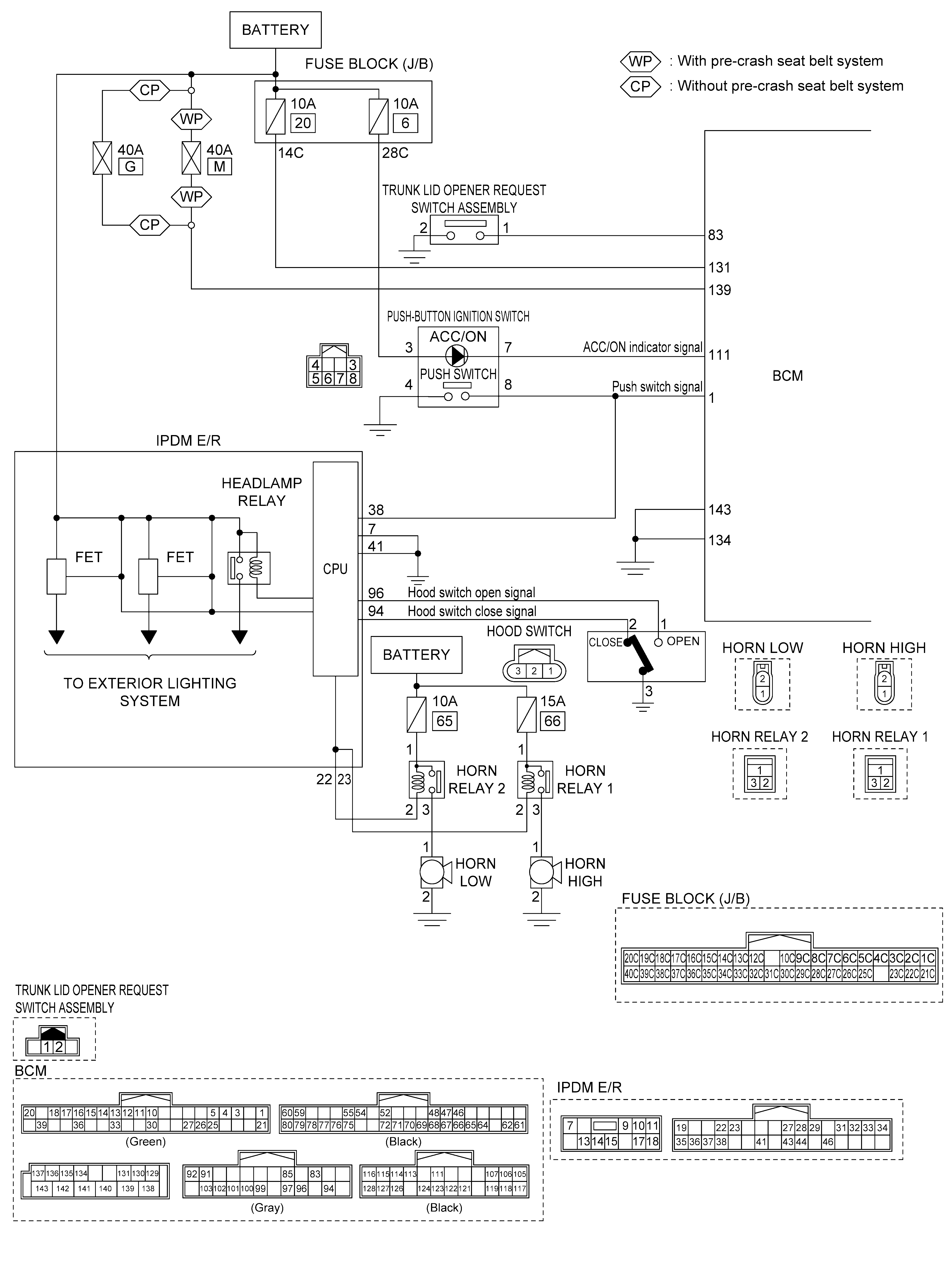

Circuit Diagram
>>
Except for Mexico
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Except for Mexico
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
