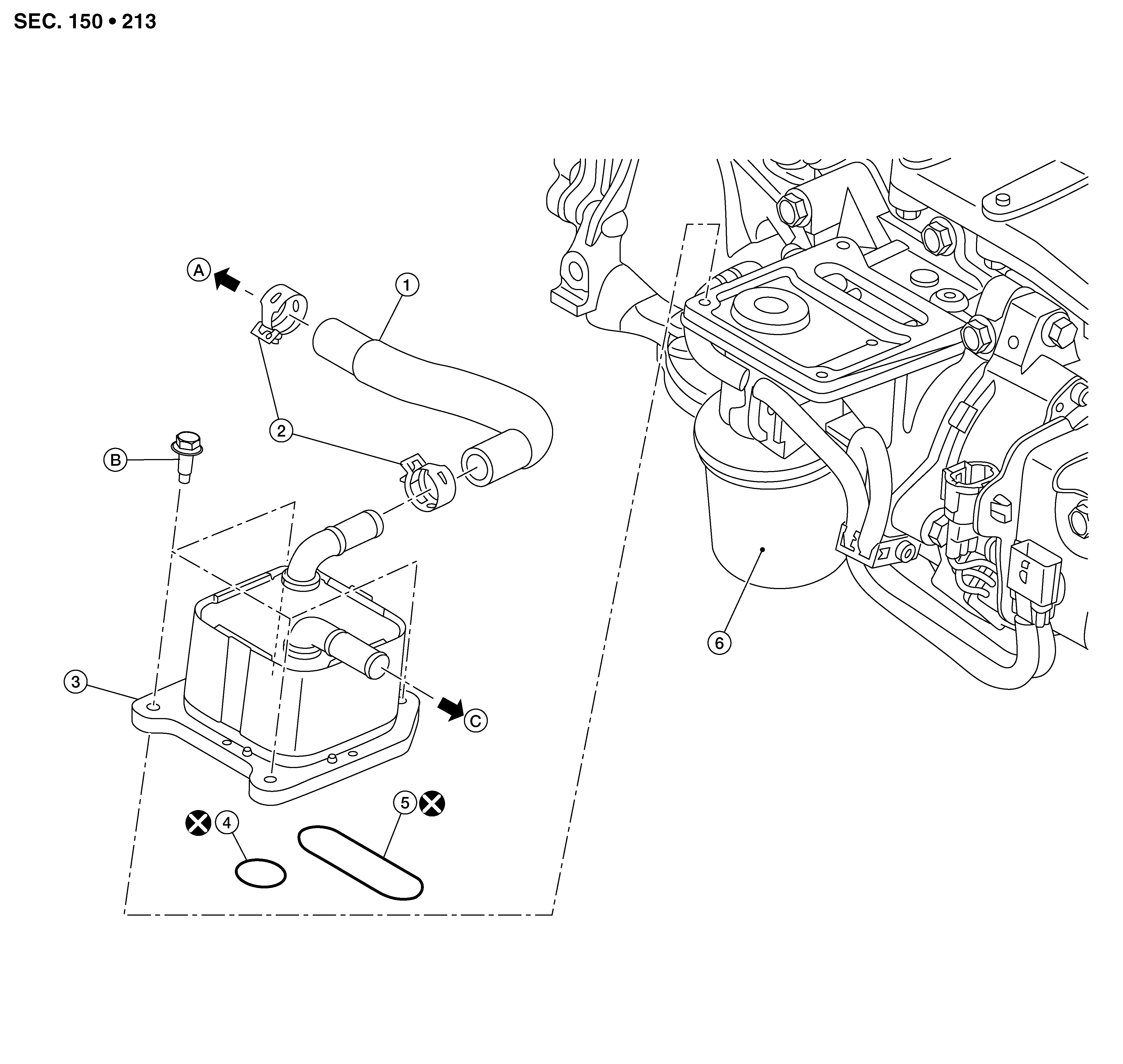

Exploded View

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Water hose	2.	Clamp	3.	Oil cooler
4.	O-ring	5.	O-ring	6.	Oil filter
A.	To water pump housing. Refer to Exploded View .	B.	Refer to Removal and Installation .	C.	To CVT water hose A. Refer to Exploded View .
