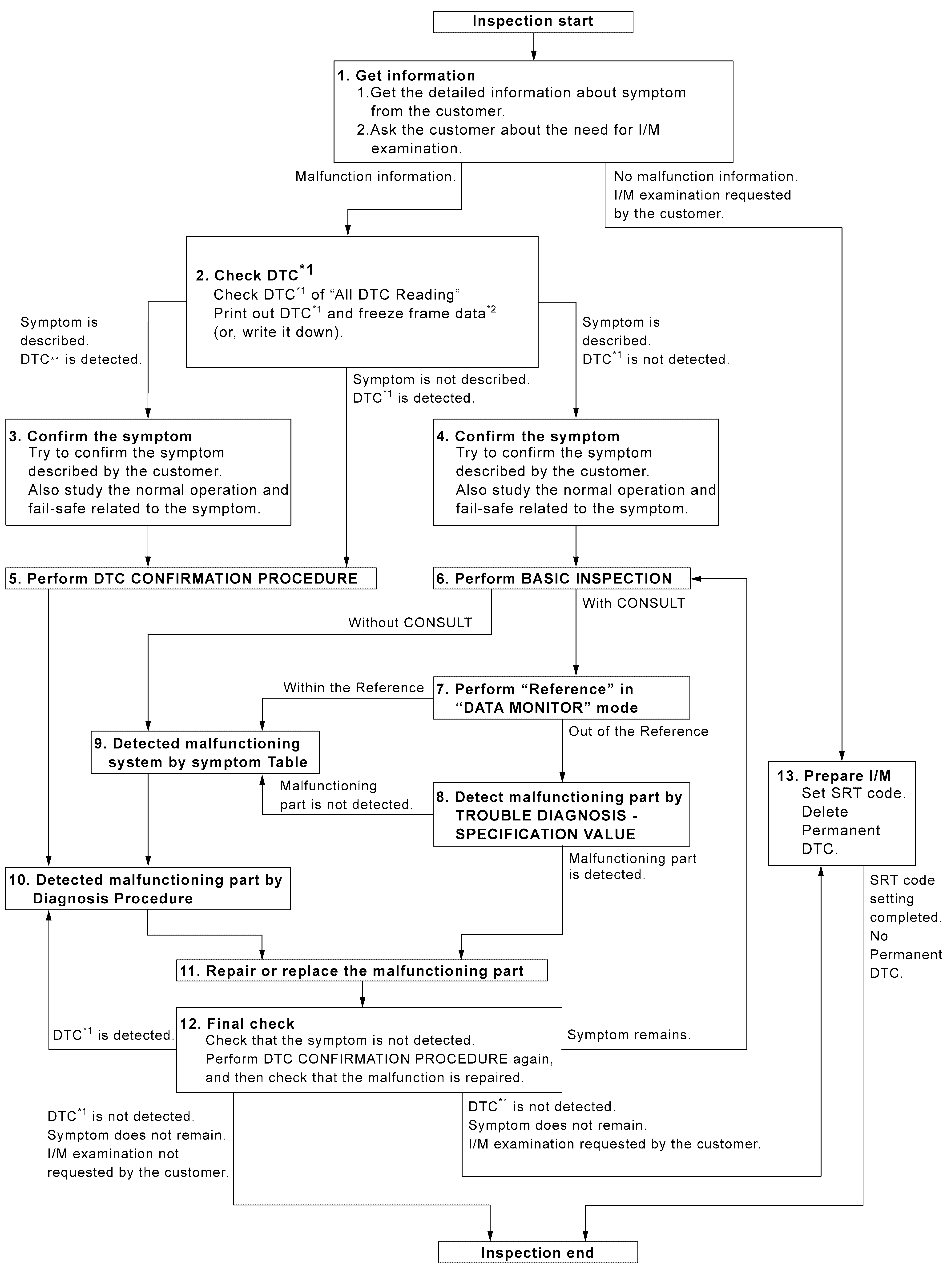

Overall Sequence
Courtesy of NISSAN NORTH AMERICA, INC.
*1: Include 1st trip DTC.
*2: Include 1st trip freeze frame data.
Courtesy of NISSAN NORTH AMERICA, INC.
