Component Inspection

1. Turn ignition switch OFF.
2. Remove EVAP canister vent control valve from EVAP canister.

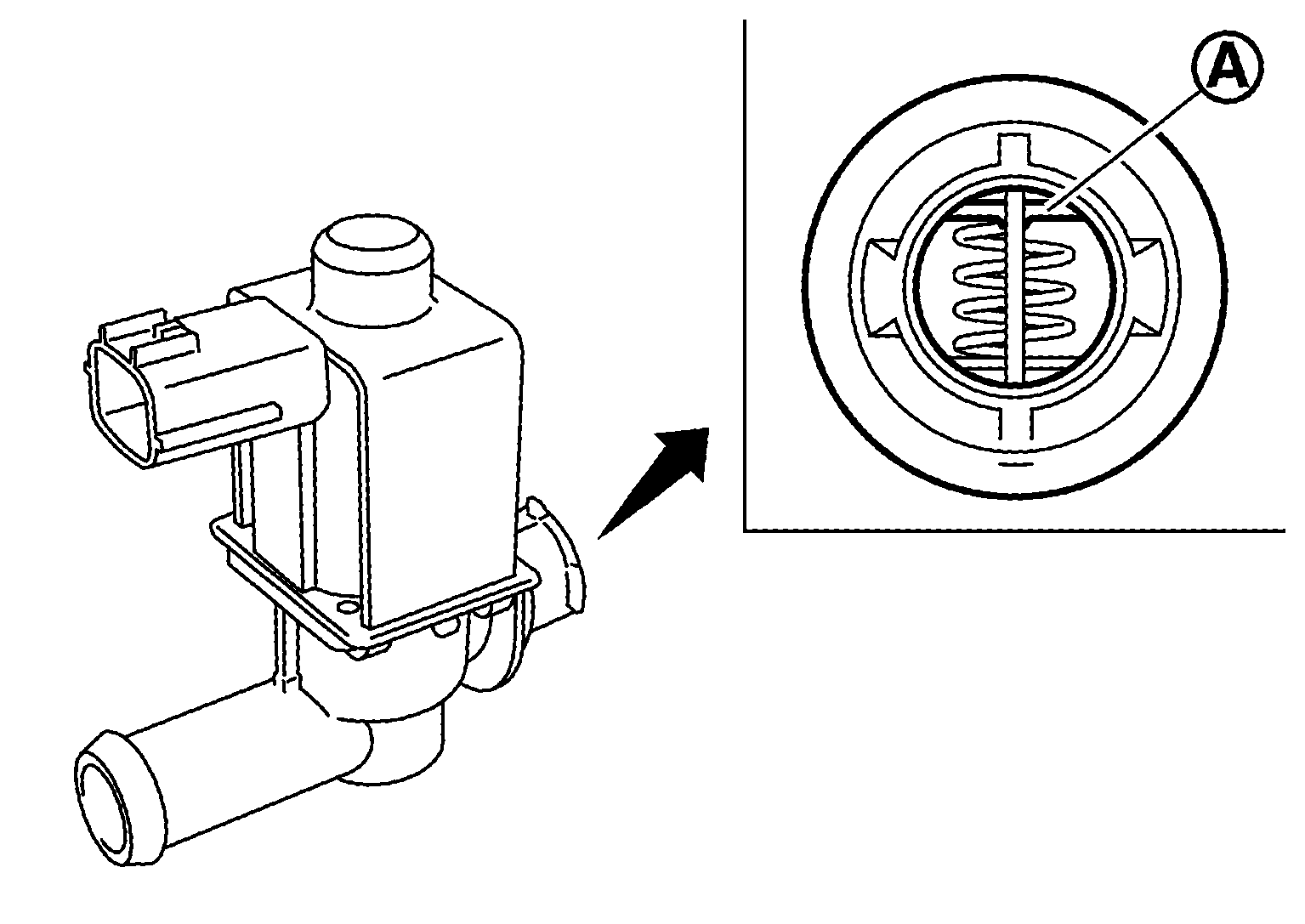

3. Check portion (A) of EVAP canister vent control valve for rust.

   Courtesy of NISSAN NORTH AMERICA, INC.

Is it rusted?

YES

Replace EVAP canister vent control valve. Refer to EVAP CANISTER : Exploded View .

NO

GO TO 2.

WITH CONSULT

1. Reconnect harness connectors disconnected.
2. Turn ignition switch ON.
3. Perform "VENT CONTROL/V" in "ACTIVE TEST" mode.
4. Check air passage continuity and operation delay time.

   Courtesy of NISSAN NORTH AMERICA, INC.

   Check that new O-ring is installed properly.

   VENT CONTROL/V Condition	Air passage continuity between (A) and (B)
   ON	Not existed
   OFF	Existed

   Operation takes less than 1 second.

WITHOUT CONSULT

1. Disconnect EVAP canister vent control valve harness connector.
2. Check air passage continuity and operation delay time under the following conditions.

   Check that new O-ring is installed properly.

   Condition	Air passage continuity between (A) and (B)
   12 V direct current supply between terminals 1 and 2	Not existed
   OFF	Existed

   Operation takes less than 1 second.

Is the inspection result normal?

YES

GO TO 3.

NO

Replace EVAP canister vent control valve. Refer to EVAP CANISTER : Exploded View .

WITH CONSULT

1. Clean the air passage [portion (A) to (B)] of EVAP canister vent control valve using an air blower.
2. Perform "VENT CONTROL/V" in "ACTIVE TEST" mode.
3. Check air passage continuity and operation delay time.

   Courtesy of NISSAN NORTH AMERICA, INC.

   Check that new O-ring is installed properly.

   VENT CONTROL/V Condition	Air passage continuity between (A) and (B)
   ON	Not existed
   OFF	Existed

   Operation takes less than 1 second.

WITHOUT CONSULT

1. Clean the air passage [portion (A) to (B)] of EVAP canister vent control valve using an air blower.
2. Check air passage continuity and operation delay time under the following conditions.

   Check that new O-ring is installed properly.

   Condition	Air passage continuity between (A) and (B)
   12 V direct current supply between terminals 1 and 2	Not existed
   OFF	Existed

   Operation takes less than 1 second.

Is the inspection result normal?

YES

INSPECTION END

NO

Replace EVAP canister vent control valve. Refer to EVAP CANISTER : Exploded View .
