Ignition Timing: Inspection

  1. Attach timing light to wire loop as shown, below.

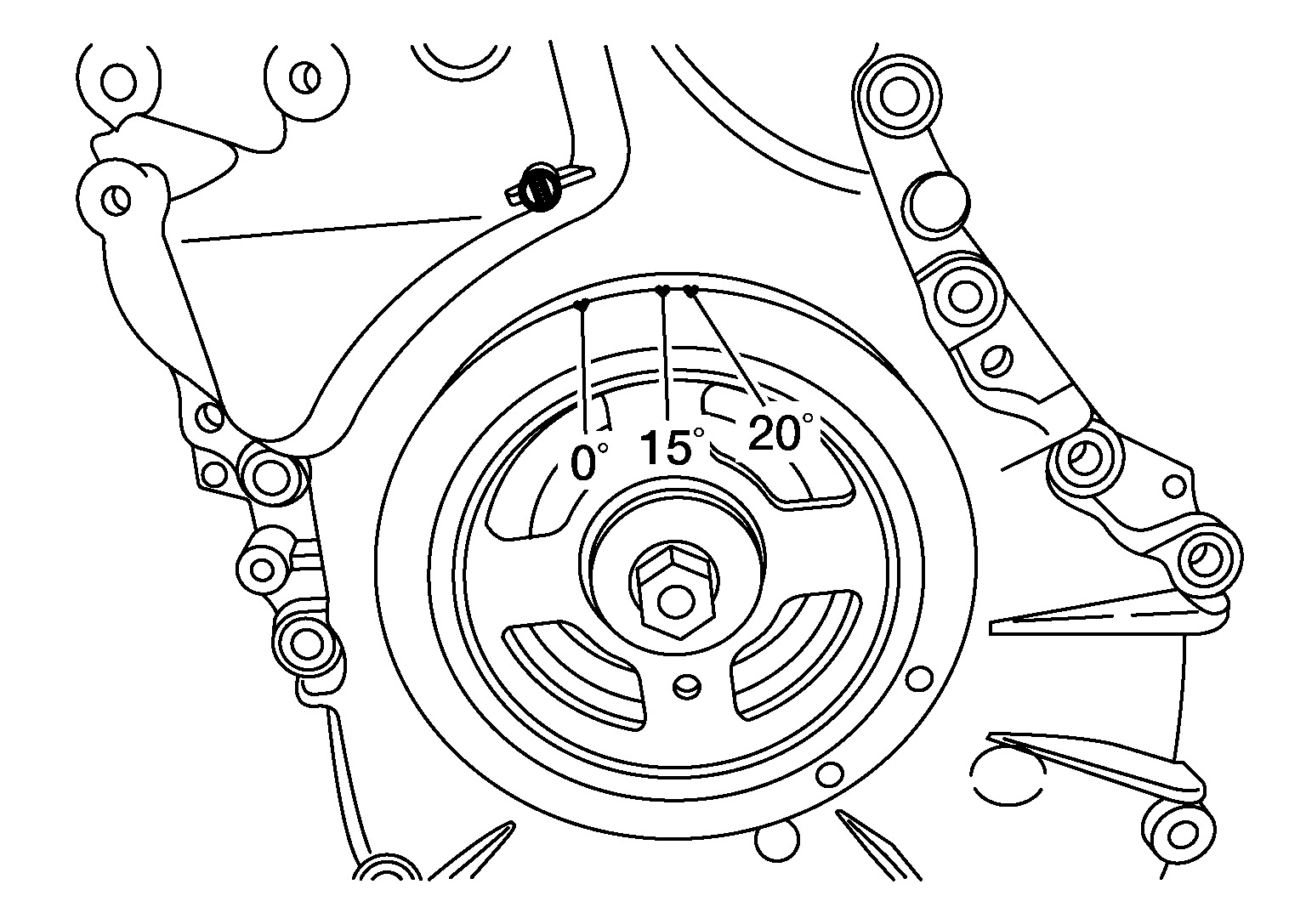

  2. Check ignition timing.
    GNSDB49256Courtesy of NISSAN
