Drive Mode Select Switch

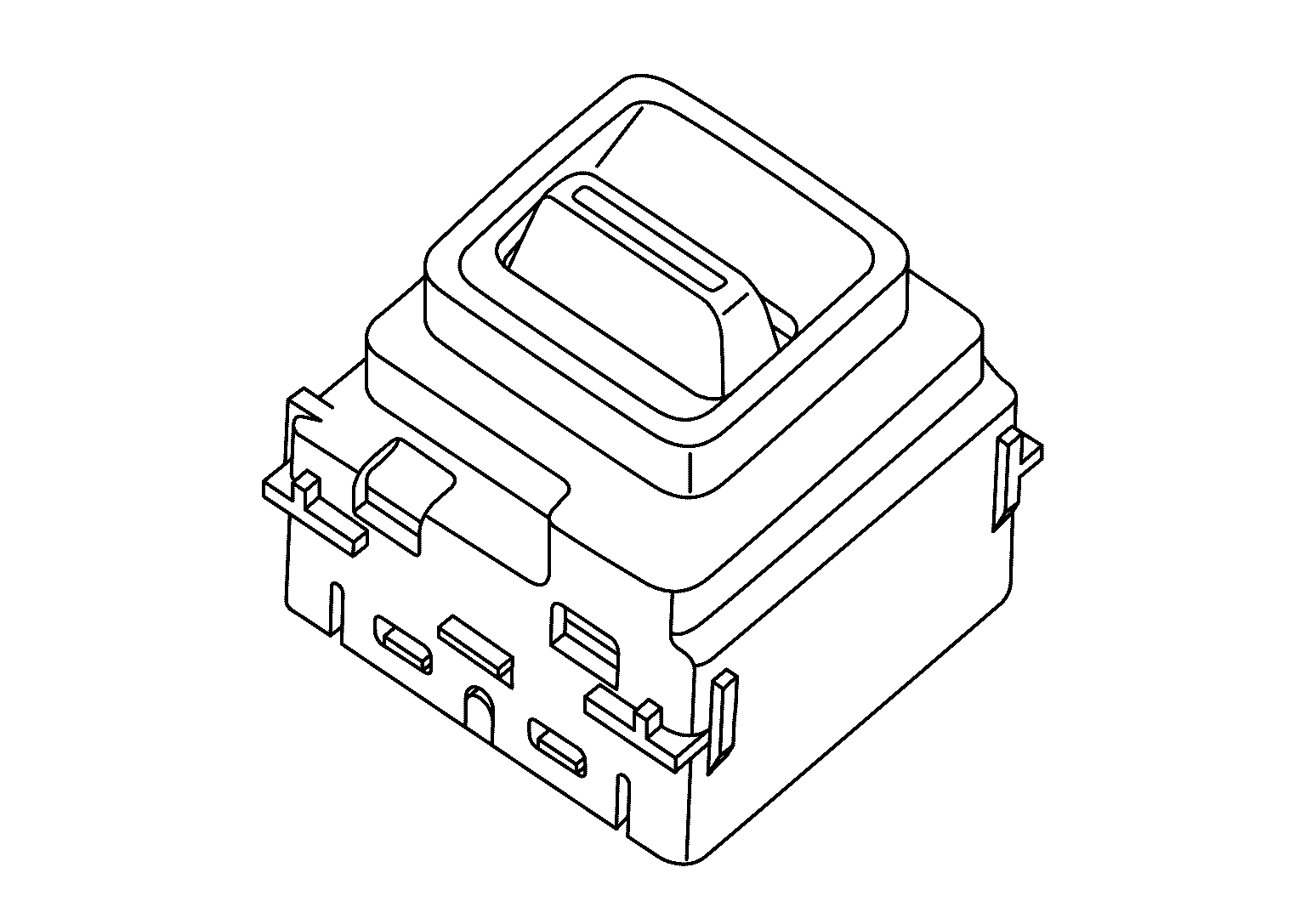

Drive mode switch is set on the upper part of the center console.

GNSDB58725Courtesy of NISSAN

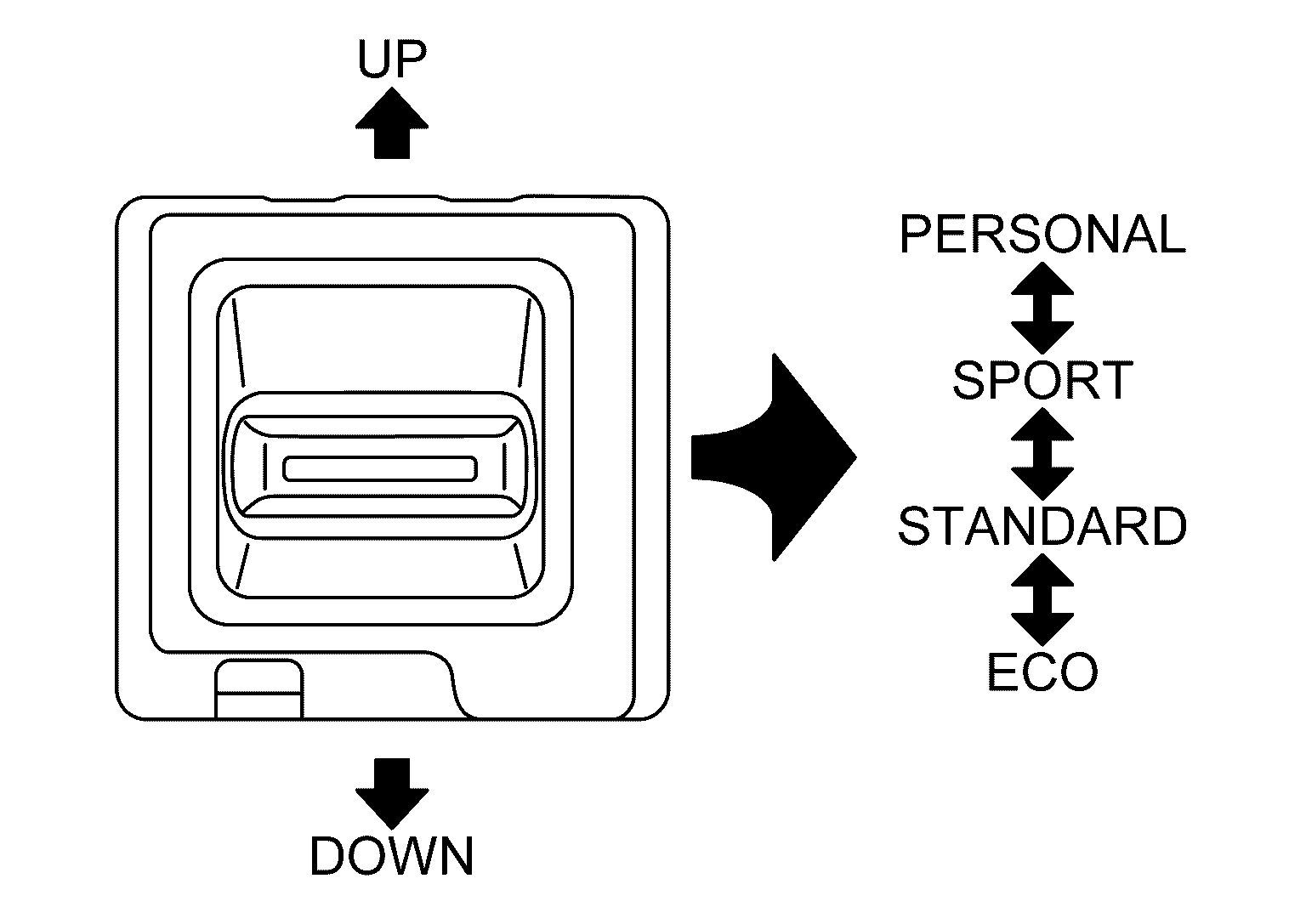

The drive mode switch is connected to the chassis control module and allows the driver to select a mode from PERSONAL, SPORT, STANDARD, and ECO by the up/down operation.

GNSDB58726Courtesy of NISSAN
