DTC Diagnosis Procedure

  1. CHECK EXHAUST GAS LEAK
    1. Start engine and run it at idle.

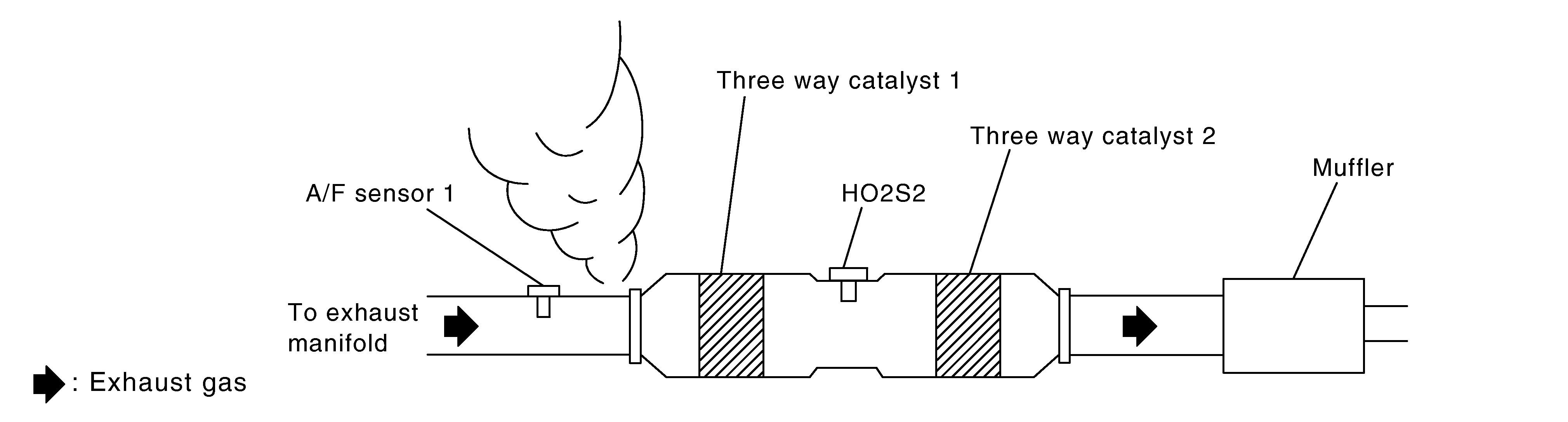

    2. Listen for an exhaust gas leak before three way catalyst 1.
      GNSDB108753Courtesy of NISSAN NORTH AMERICA, INC.

    Is exhaust gas leak detected?

    YES>>

    Repair or replace.

    NO>>

    GO TO 2.

  2. CHECK FOR INTAKE AIR LEAK

    Listen for an intake air leak after the mass air flow sensor.

    Is intake air leak detected?

    YES>>

    Repair or replace.

    NO>>

    GO TO 3.

  3. CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect corresponding A/F sensor 1 harness connector.
    3. Disconnect ECM harness connector.
    4. Check the continuity between A/F sensor 1 harness connector and ECM harness connector.
      + - Continuity
      A/F sensor 1 ECM
      Bank Connector Terminal Connector Terminal
      2 F134 3 F142 106 Existed
      4 105
    5. Check the continuity between A/F sensor 1 harness connector and ground, or ECM harness connector and ground.
      + - Continuity
      A/F sensor 1
      Bank Connector Terminal
      2 F134 3 Ground Not existed
      4
      + - Continuity
      ECM
      Bank Connector Terminal
      2 F142 105 Ground Not existed
      106
    6. Also check harness for short to power.

    Is the inspection result normal?

    YES>>

    GO TO 4.

    NO>>

    Repair or replace error-detected parts.

  4. CHECK FUEL PRESSURE
    1. Release fuel pressure to zero. Refer to Work Procedure .
    2. Install fuel pressure gauge and check fuel pressure. Refer to Work Procedure .

    Is the inspection result normal?

    YES>>

    GO TO 5.

    NO>>

    Replace "fuel filter and fuel pump assembly". Refer to FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY : Removal and Installation .

  5. CHECK MASS AIR FLOW SENSOR

    SYMBOL With CONSULT

    1. Install all removed parts.
    2. Check "MASS AIR FLOW SENSOR (Hz)" in "DATA MONITOR" mode with CONSULT.

      For specification, Refer to MASS AIR FLOW SENSOR : Service Data .

    SYMBOL With GST

    1. Install all removed parts.
    2. Check mass air flow sensor signal in "Service $01" with GST.

      For specification, Refer to MASS AIR FLOW SENSOR : Service Data .

    Is the measurement value within the specification?

    YES>>

    GO TO 6.

    NO>>

    Check connectors for rusted terminals or loose connections in the mass air flow sensor circuit or grounds. Refer to DTC Diagnosis Procedure .

  6. CHECK FUNCTION OF FUEL INJECTOR

    SYMBOL With CONSULT

    1. Start engine.
    2. Perform "POWER BALANCE" in "ACTIVE TEST" mode with CONSULT.
    3. Make sure that each circuit produces a momentary engine speed drop.

    SYMBOL Without CONSULT

    1. Start engine and let it idle.
    2. Listen to each fuel injector operating sound.
      GNSDB107535Courtesy of NISSAN NORTH AMERICA, INC.
      Clicking sound should be heard.

    Is the inspection result normal?

    YES>>

    INSPECTION END

    NO>>

    Perform trouble diagnosis for FUEL INJECTOR, Refer to Diagnosis Procedure .
