QX55 Essential
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (2 Of 2)
>>
Removal And Installation
>>
Fuel Pump Control Module (FPCM)
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

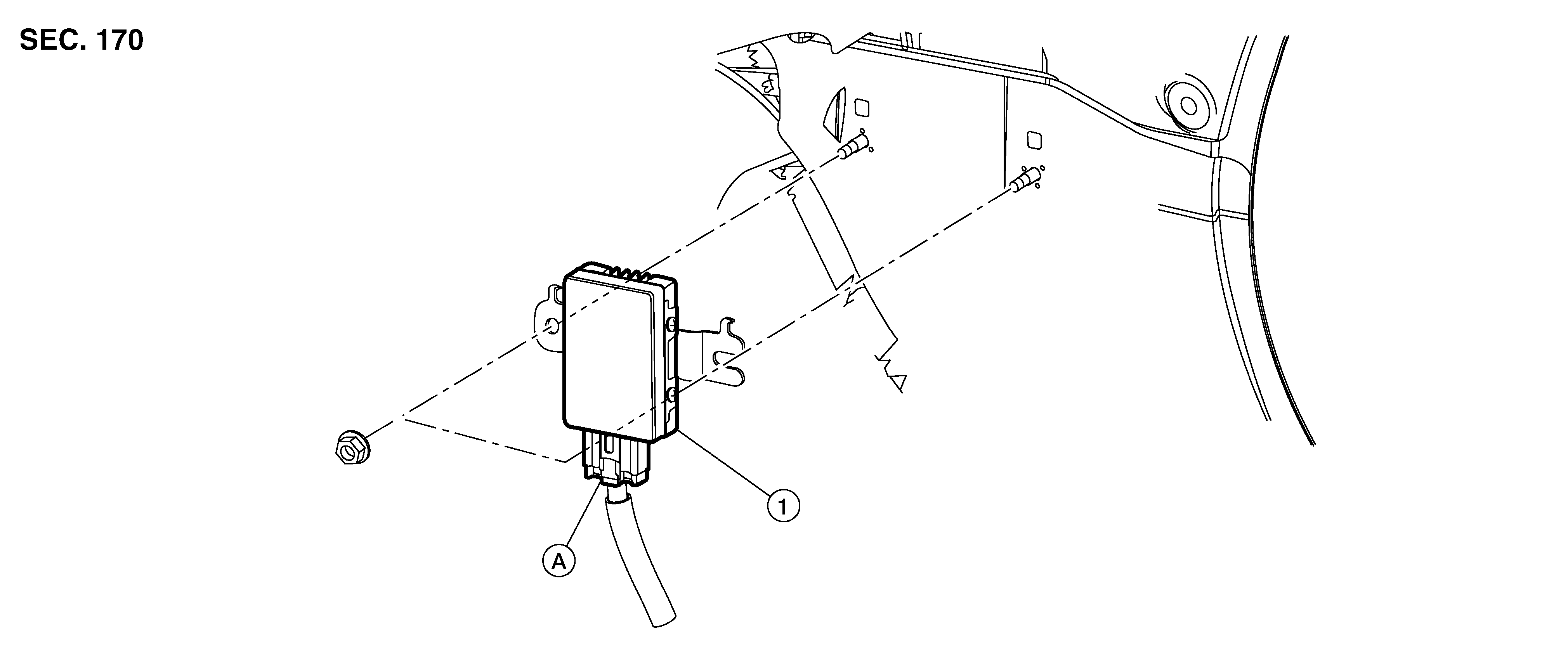

Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Fuel pump control module
A.
Fuel pump control module harness
