Reference Value

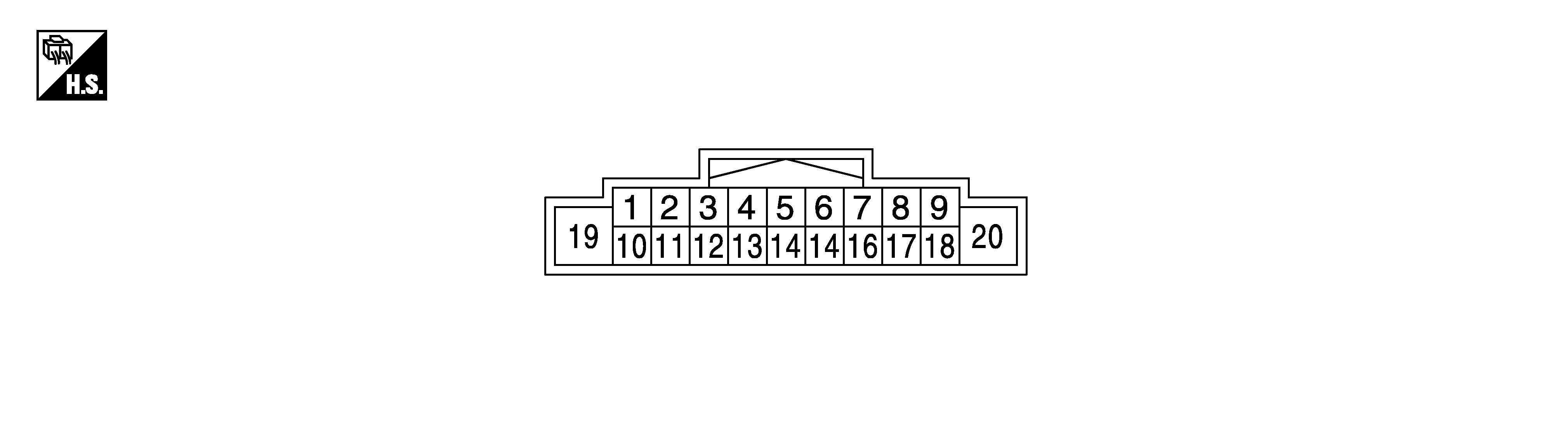

TERMINAL LAYOUT
PHYSICAL VALUES
| Terminal No. (Wire color) | Description | Condition | Value (Approx.) | ||
|---|---|---|---|---|---|
| + | - | Signal name | Input/Output | ||
| 4 (R) | Ground | CAN-Low | - | - | - |
| 6 (GR) | Ground | Seat belt buckle switch LH signal | Input | Seat belt is fastened | 0 V |
| Seat belt is unfastened | 5 V | ||||
| 9 (GR) | Ground | Shield | - | - | - |
| 14 (L) | Ground | CAN-High | - | - | - |
| 16 (B) | Ground | Local Communication Line 1 | Input/Output | - | - |
| 19 (W) | Ground | Motor drive battery power supply circuit | Input | - | Battery voltage |
| 20 (GR) | Ground | Motor drive ground circuit | - | - | 0 V |
