Component Function Check

  1. CHECK FUEL PUMP FUNCTION
    1. Turn ignition switch ON.

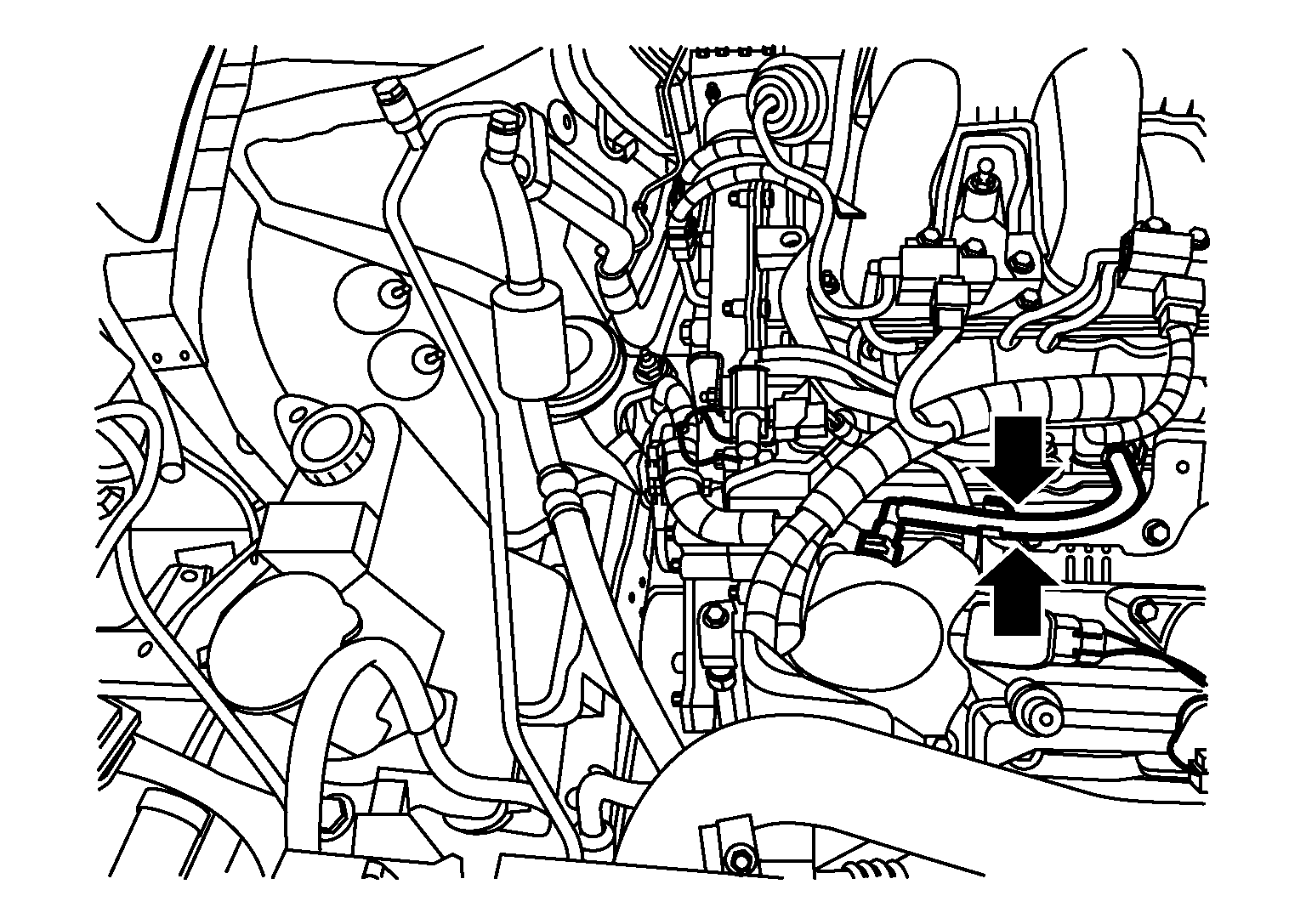

    2. Pinch fuel feed hose with two fingers.
      GNSDB137906Courtesy of NISSAN NORTH AMERICA, INC.
      Fuel pressure pulsation should be felt on the fuel feed hose for 1 second after ignition switch is turned ON.

    Is the inspection result normal?

    YES>>

    INSPECTION END

    NO>>

    Diagnosis Procedure .
