Engine Temperature Sensor: Locations

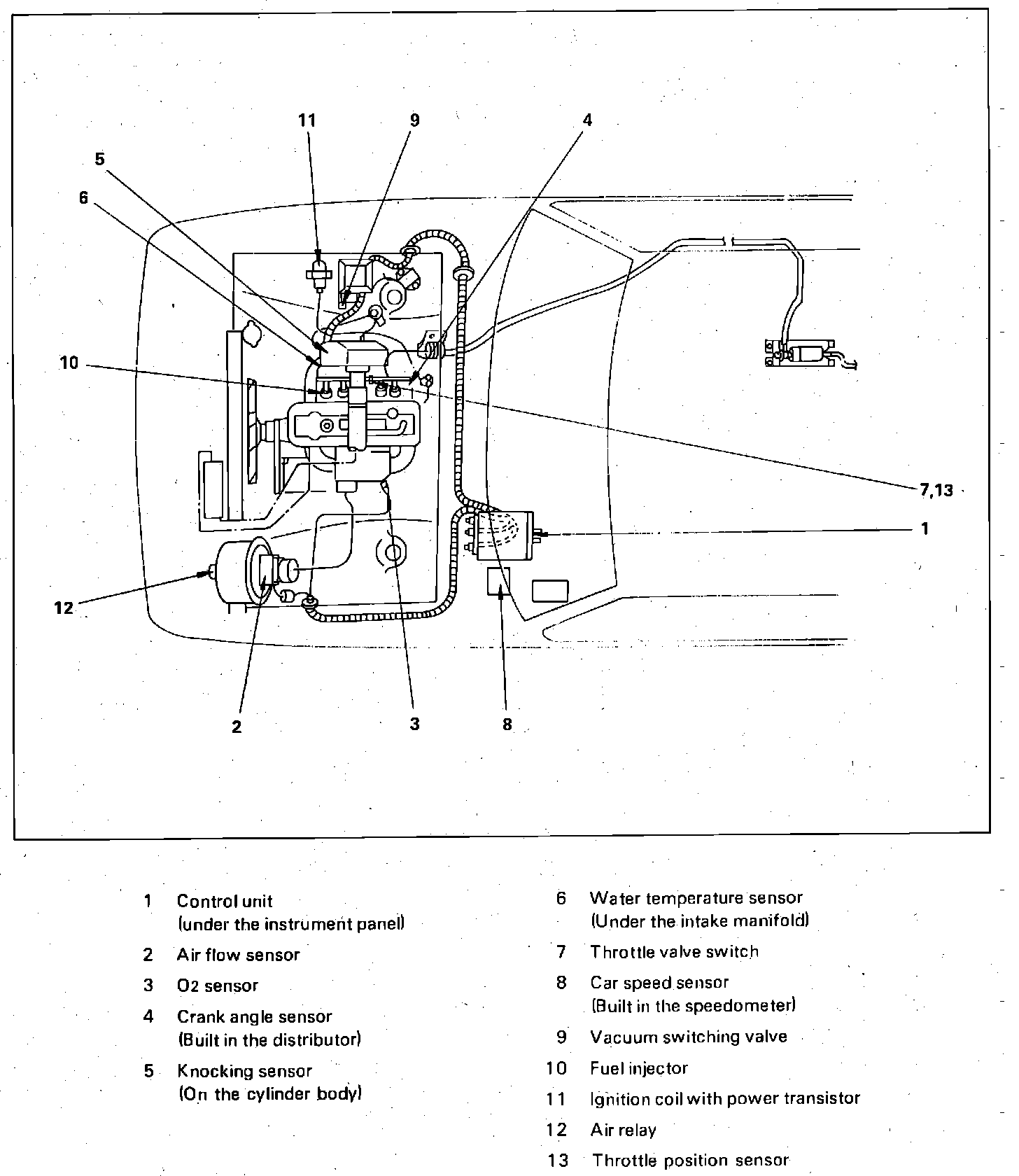

Fuel System Components.:

Under Intake Manifold

Applicable to: Impulse w/4ZC1-T Engine
