Engine Temperature Sensor: Testing and Inspection

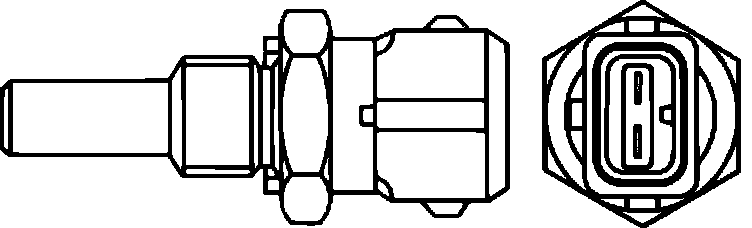

Fig. 219 Coolant Thermosensor:

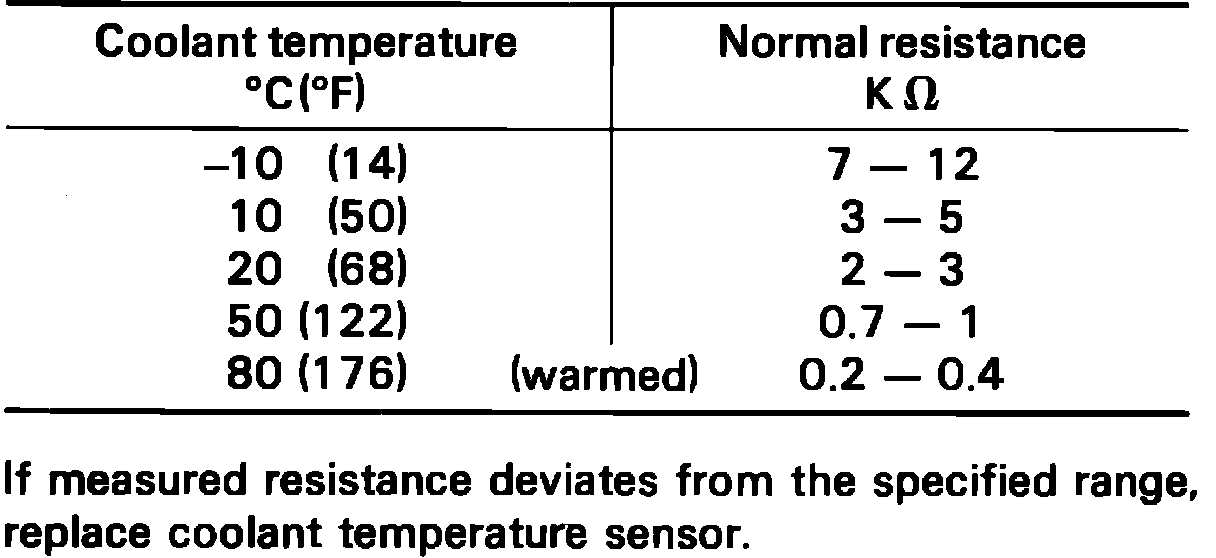

Fig. 220 Coolant Thermosensor Specifications:

1. Disconnect sensor harness at connector and measure the resistance across the sensor terminals, Fig. 219.
2. If not within specifications, Fig. 220, replace the temperature sensor.
