Vehicle Speed Sensor: Testing and Inspection

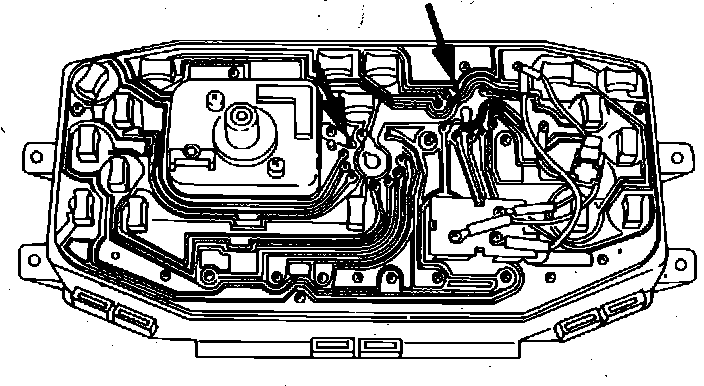

Fig. 50 Connecting tester leads to speed sensor circuit.:

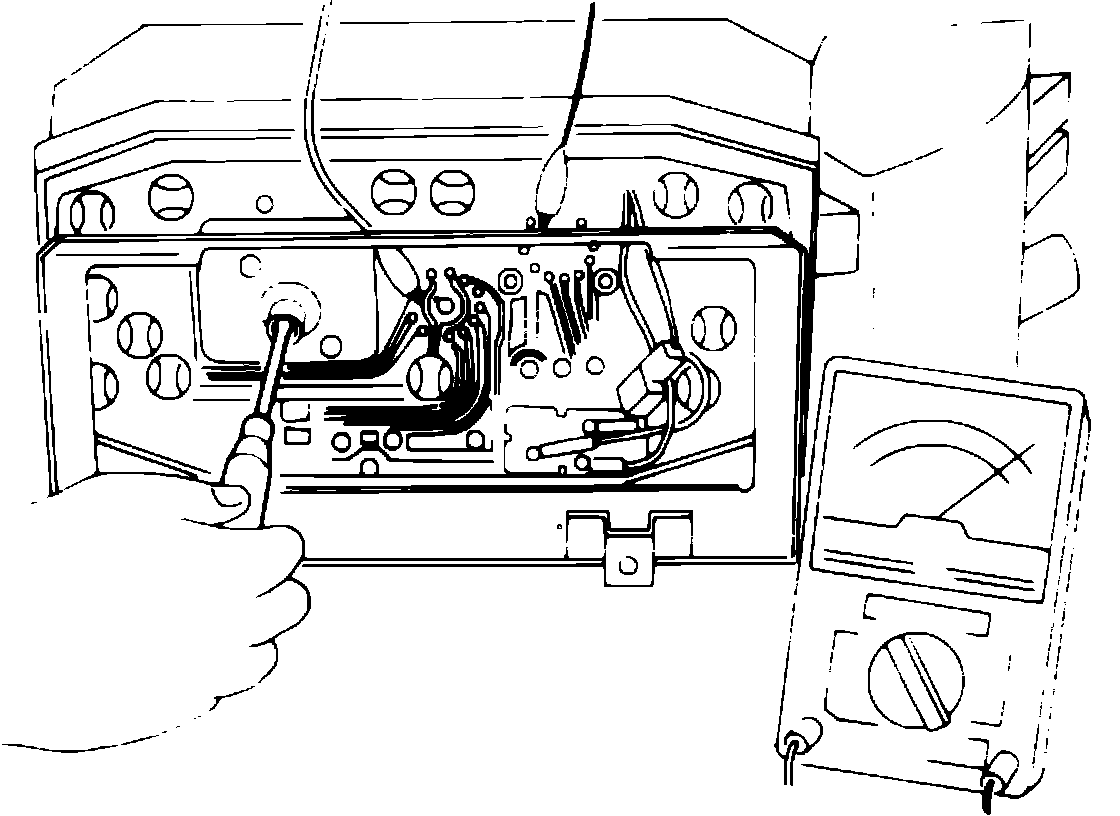

Fig. 50b Testing Speed Sensor:

1. Remove cluster assembly, then connect leads of tester as shown by arrows in Fig. 50.
2. Turn inner cable slowly and check that tester indicates a continuity and an open circuit condition alternately.
3. If not satisfactory, replace speedometer assembly.
