Air Flow Meter/Sensor
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Air Flow Meter/Sensor

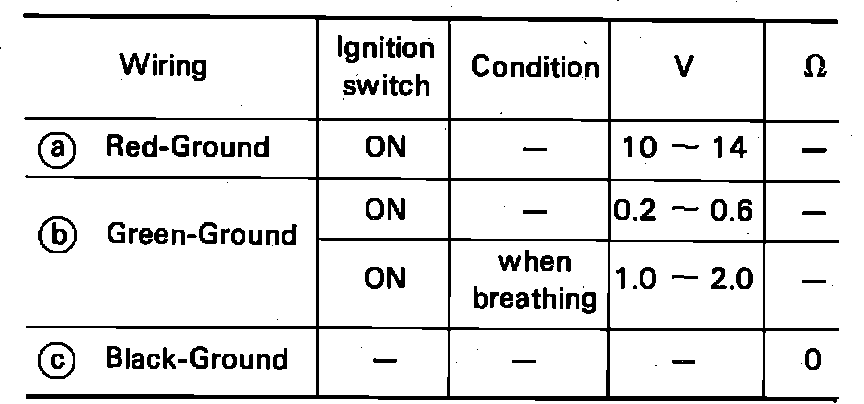

Fig. 41 Air flow sensor wiring voltage & resistance value chart.:
