Air Flow Meter/Sensor: Testing and Inspection

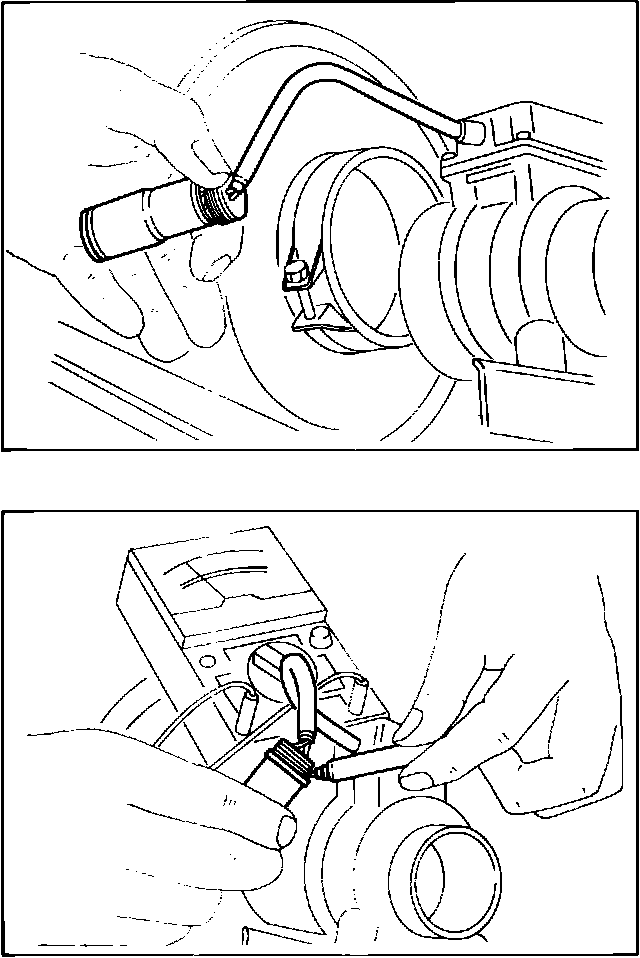

Fig. 227 Checking Air Flow Sensor:

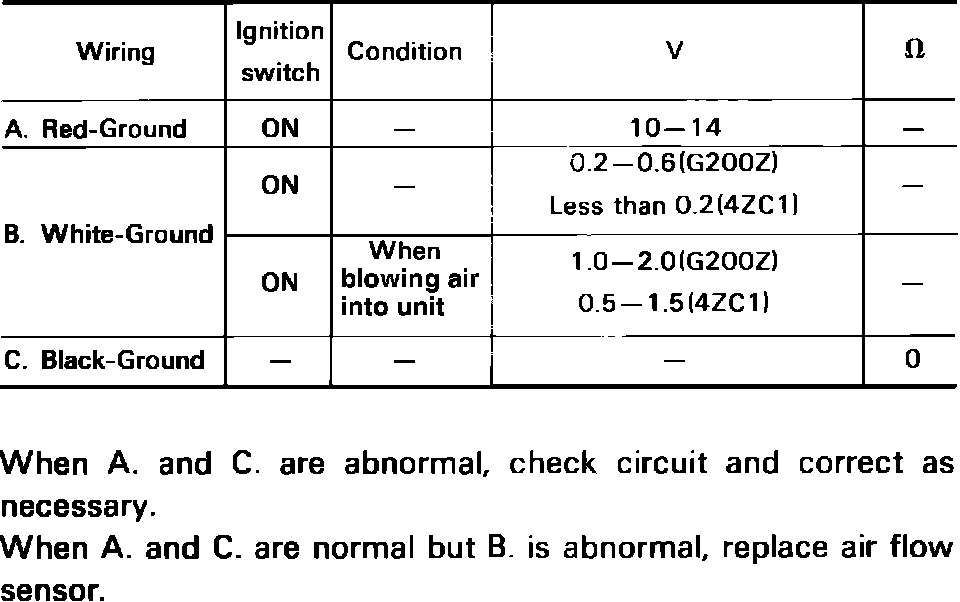

Fig. 229 Air Flow Sensor Specifications:

1. Partly raise the sealing gasket on the air flow sensor side of the harness connector, Fig. 227.
2. Insert tester probes and test according to specification chart, Fig. 229
