Engine Control Module

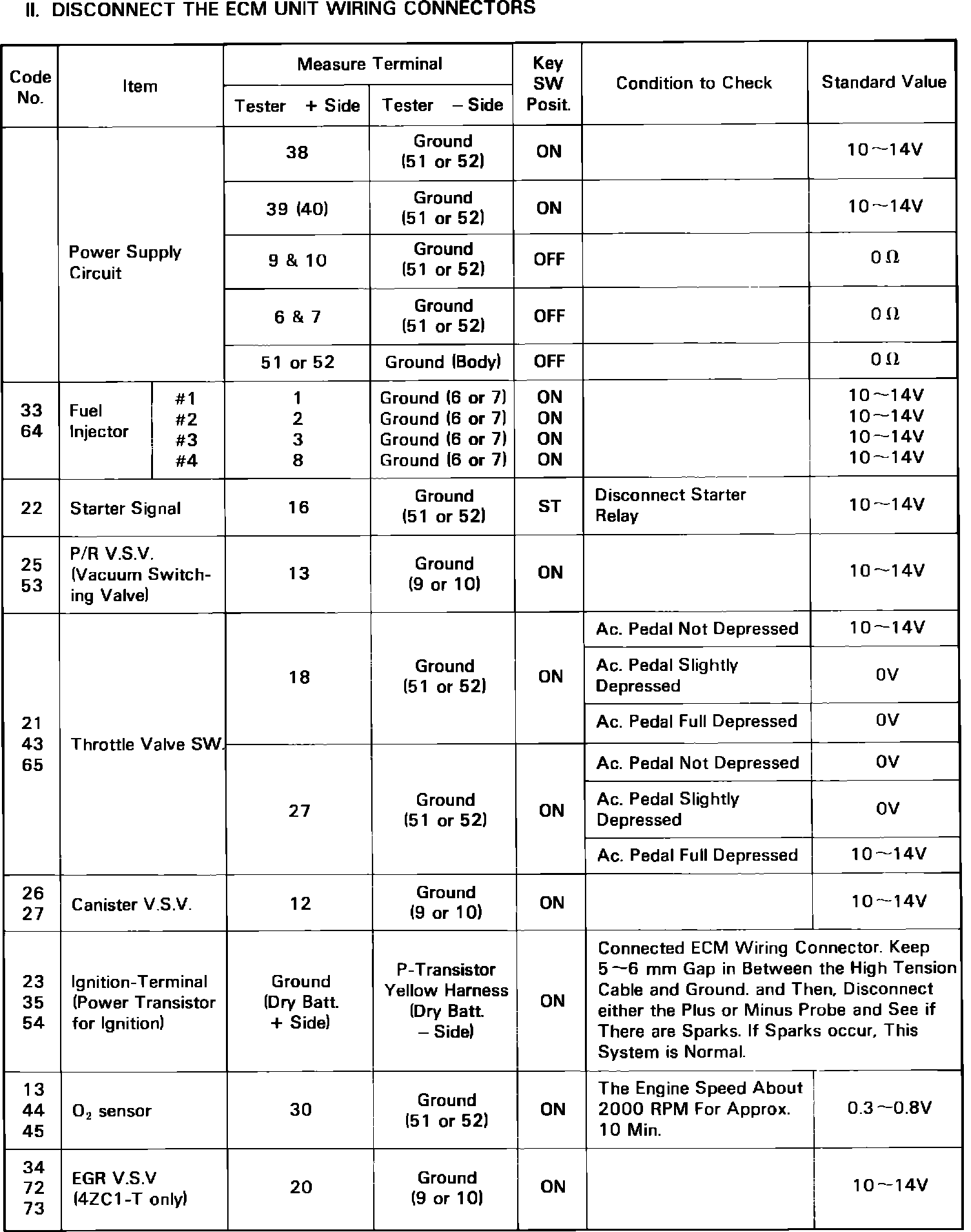

Fig. 213a ECM Terminal Inputs, Outputs and Standard Values:

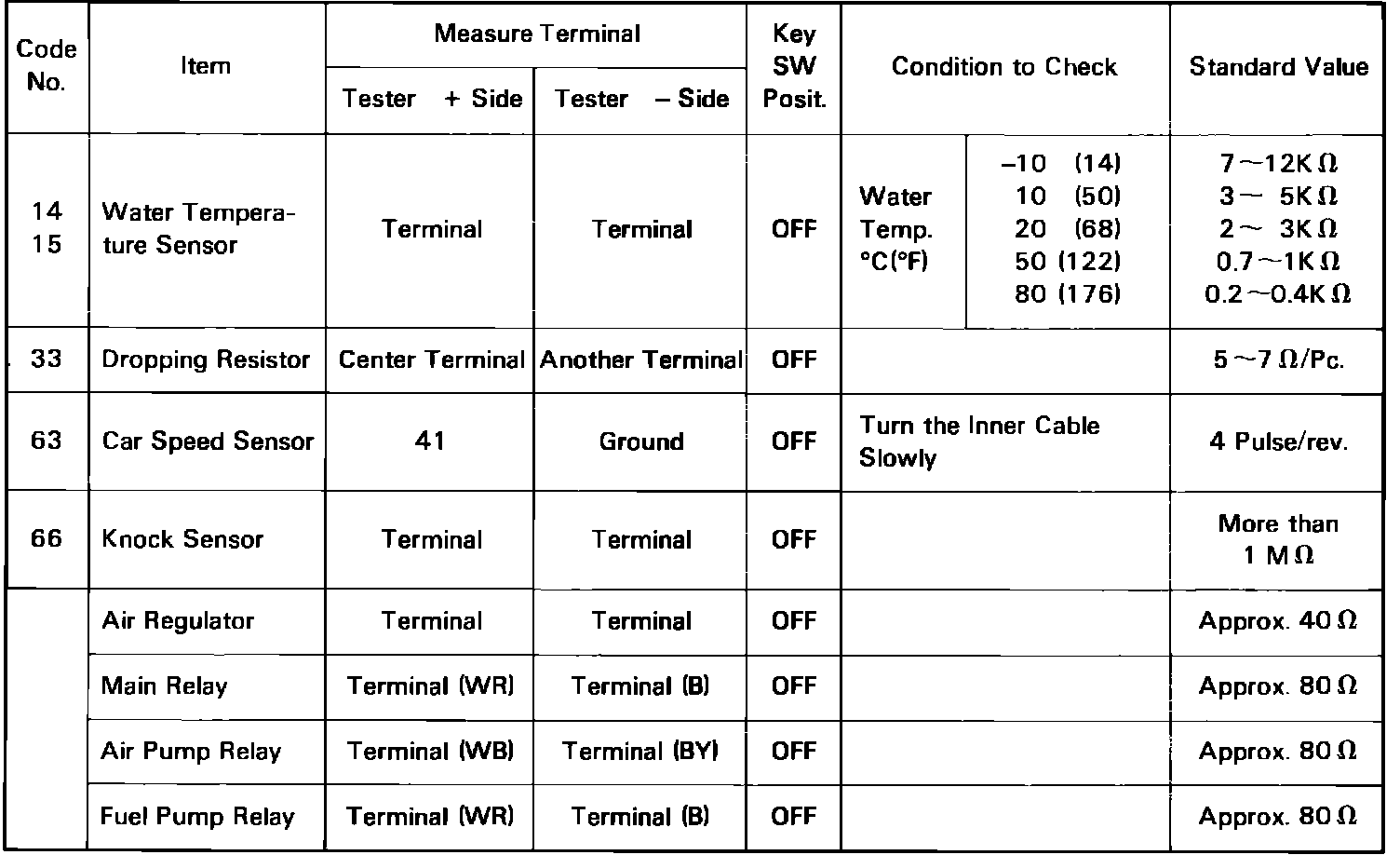

Fig. 213b ECM Terminal Inputs, Outputs and Standard Values:

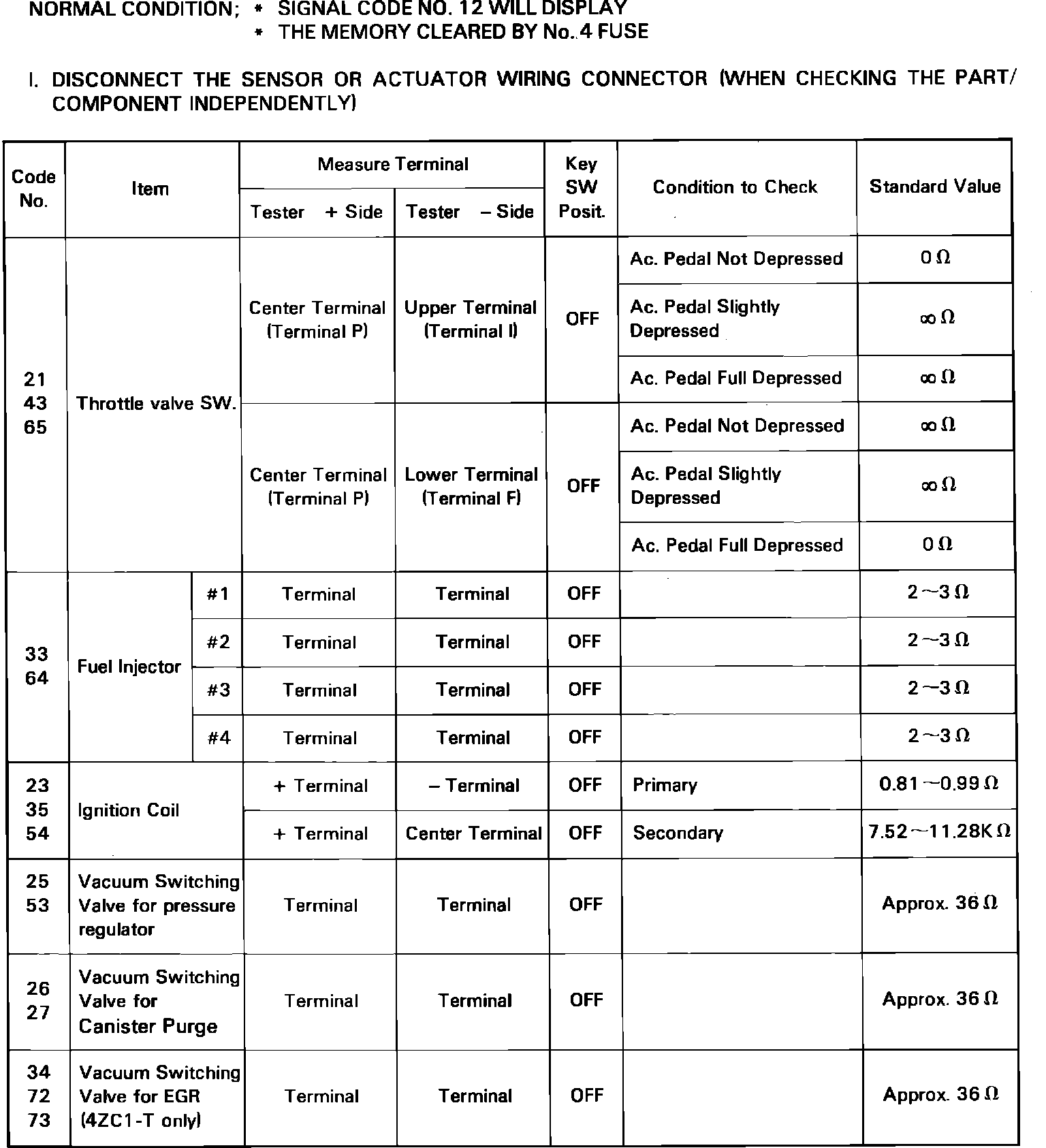

Fig. 213c ECM Terminal Inputs, Outputs and Standard Values:
