Code 71 - Throttle Position Sensor

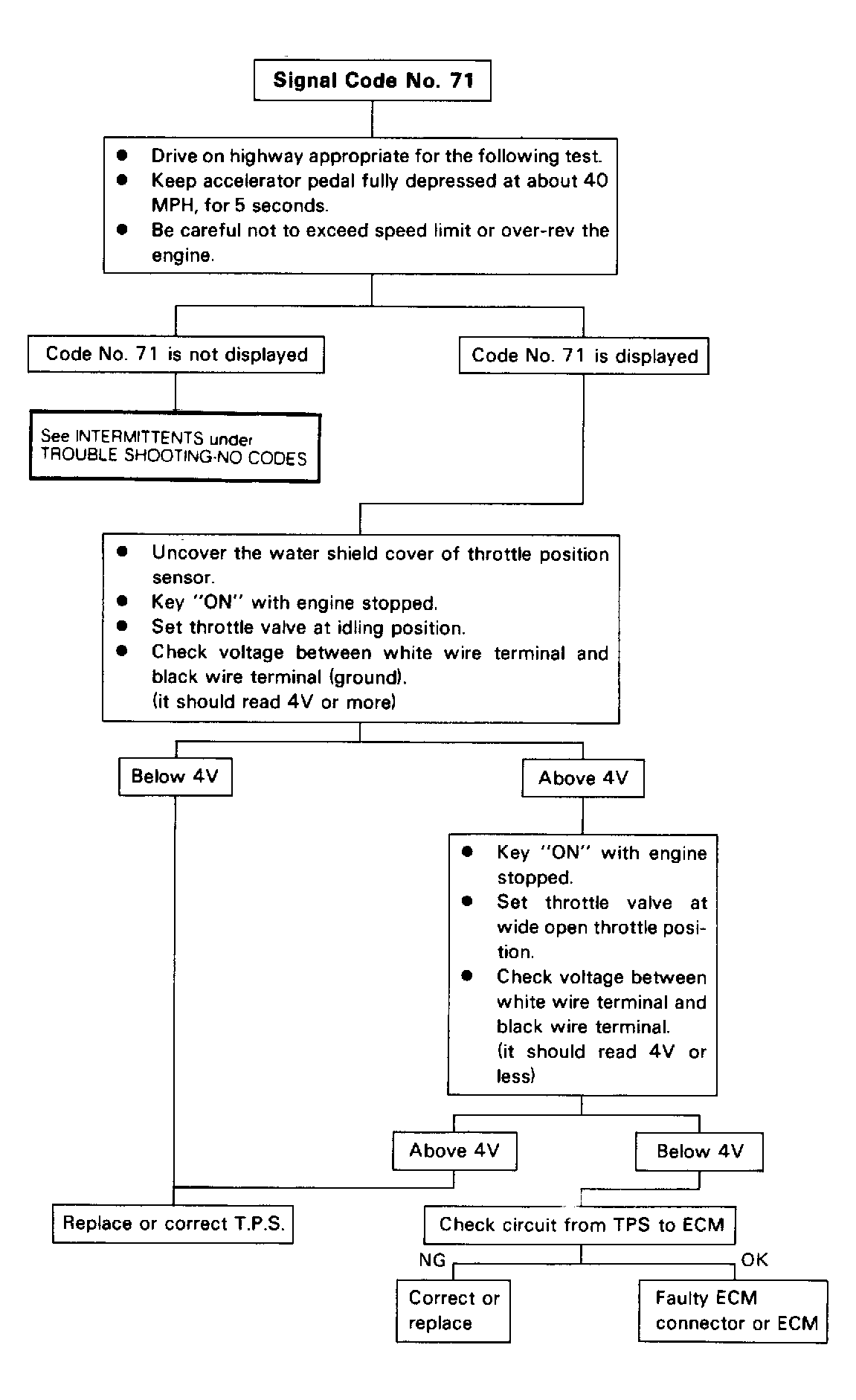

Fig 1: Flow Chart - Code 71, Throttle Position Sensor
G122299Courtesy of ISUZU MOTOR CO.
Fig 2: Throttle Position Circuit & Pin Continuities
G122298Courtesy of ISUZU MOTOR CO.
