Diagnostic Circuit Check: Notes

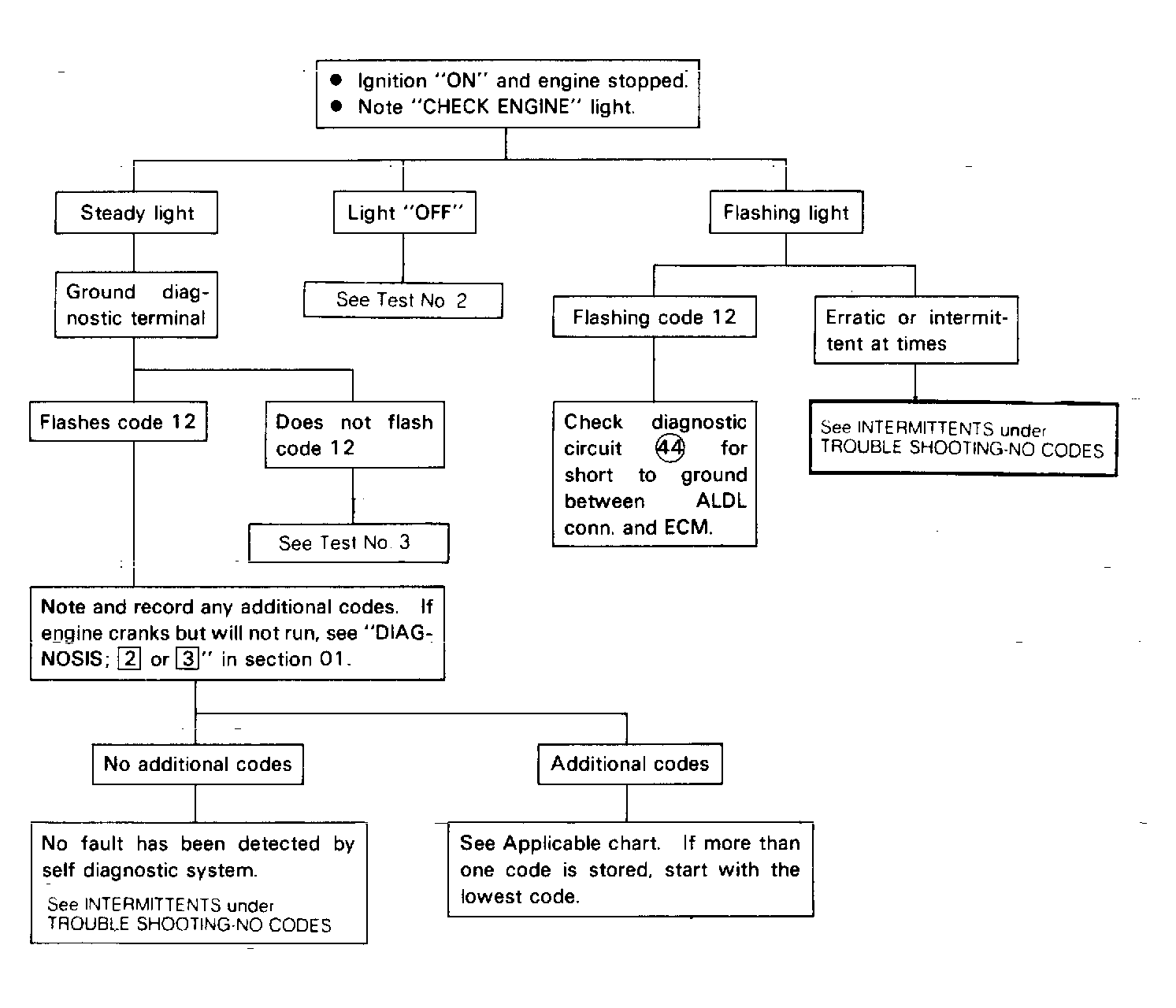

Fig 1: Flow Chart - Diagnostic Circuit Check

G122264

Courtesy of ISUZU MOTOR CO.
