Code 13: O2 Sensor Circuit

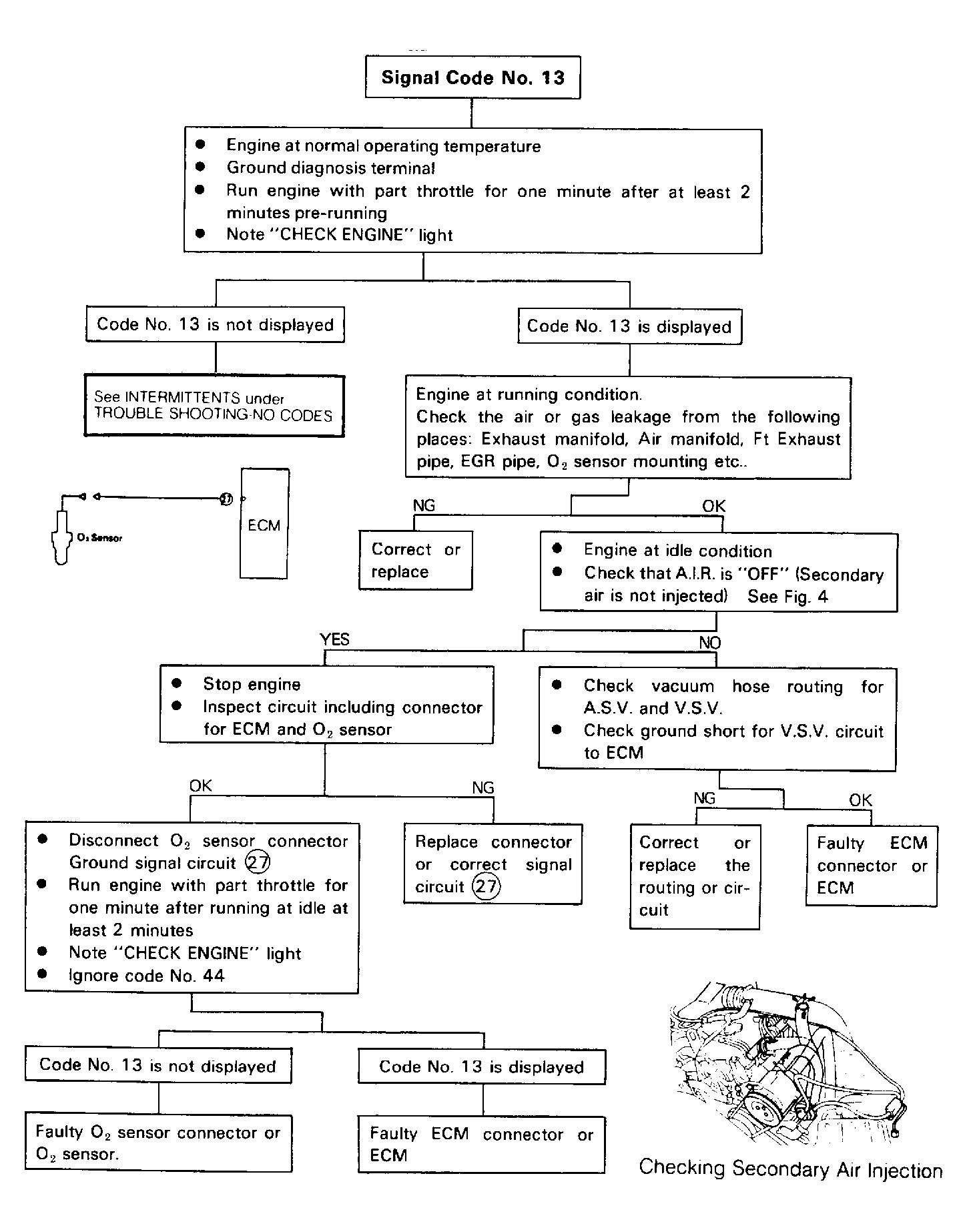

Fig 1: Code 13: Circuit Diagram & Flow Chart O2 Sensor Circuit
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
