Code 35: Power Transistor Circuit

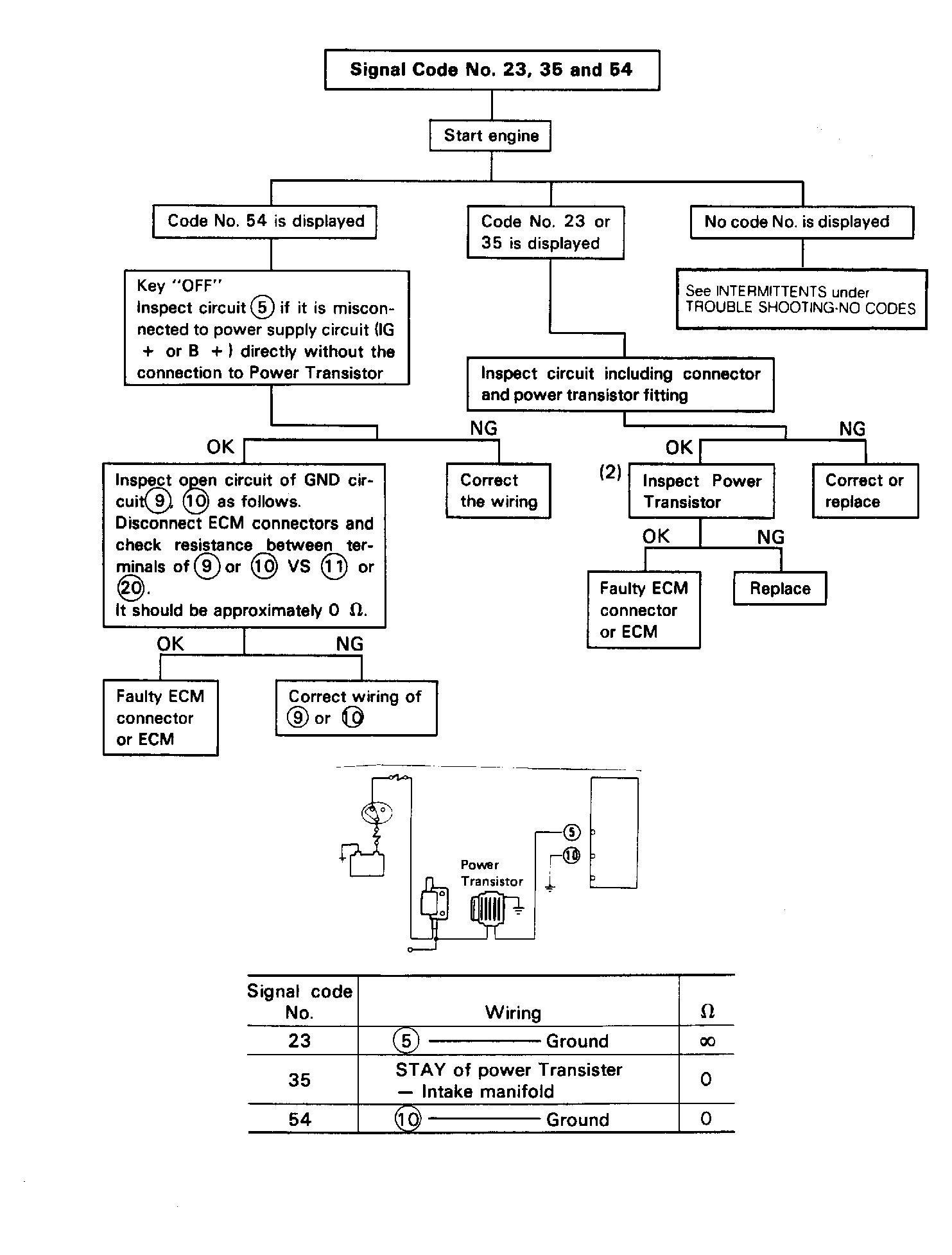

Fig 1: Code 35: Flow Chart Power Transistor Circuit
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
