Installation (2.3L & 2.6L)

  1. Remove valve cover. Bring No. 4 cylinder to TDC of compression stroke. Align camshaft pulley set mark with front plate set mark.
  2. Apply engine oil to distributor o-ring. Align distributor case set mark with distributor shaft set mark. See Fig 1. Install distributor into cylinder head.
  3. Align distributor shaft set mark with cylinder head set mark. See Fig 1. Install valve cover.
  4. Install and tighten distributor-to-cylinder head bolt to specification. See TORQUE SPECIFICATIONS .
  5. Connect high tension wires and distributor harness connector. Set ignition timing. See appropriate SPECIFICATIONS article in ENGINE PERFORMANCE section.

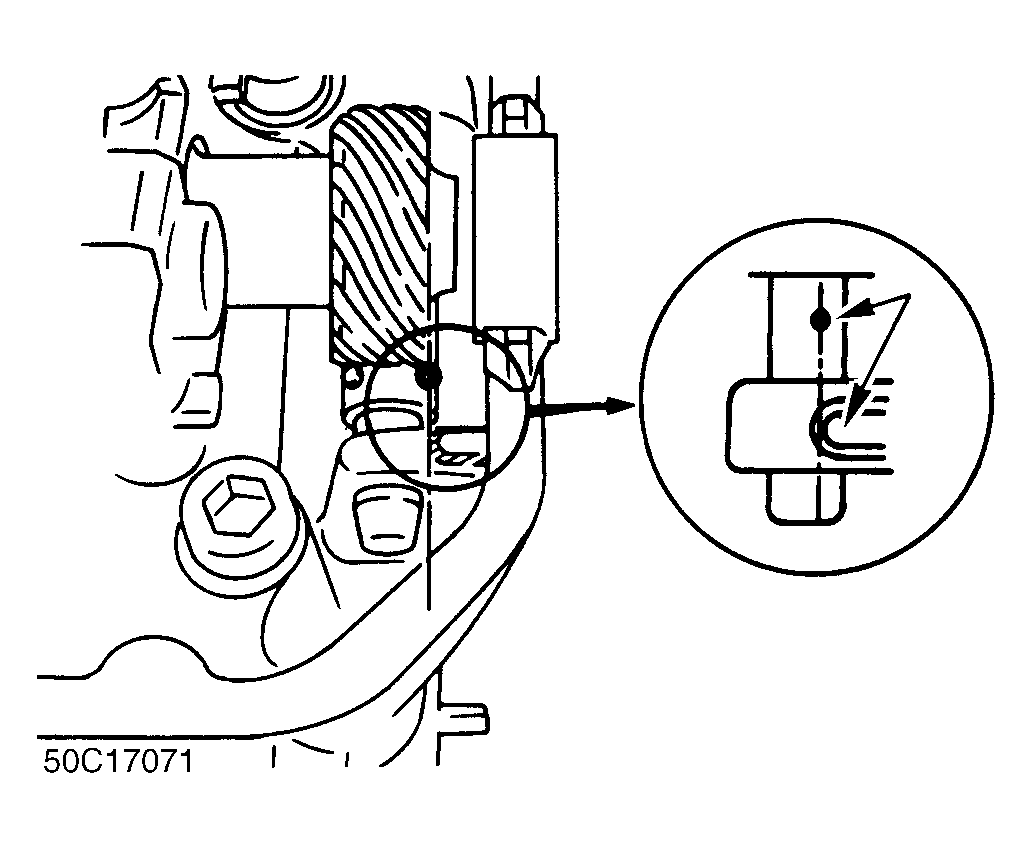

Fig 1: Distributor & Cylinder Head Set Marks (2.3L & 2.6L)
G50C17071Courtesy of ISUZU MOTOR CO.
