Home >> Isuzu >> 1991 >> Trooper II V6-2827cc 2.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Computers and Control Systems >> System Diagram >> Electronic Control Module (ECM) Connections >> Outputs >> Check Engine Indicator Control

April 5, 2026: LEMON Manuals is launched! Read the announcement.

Check Engine Indicator Control

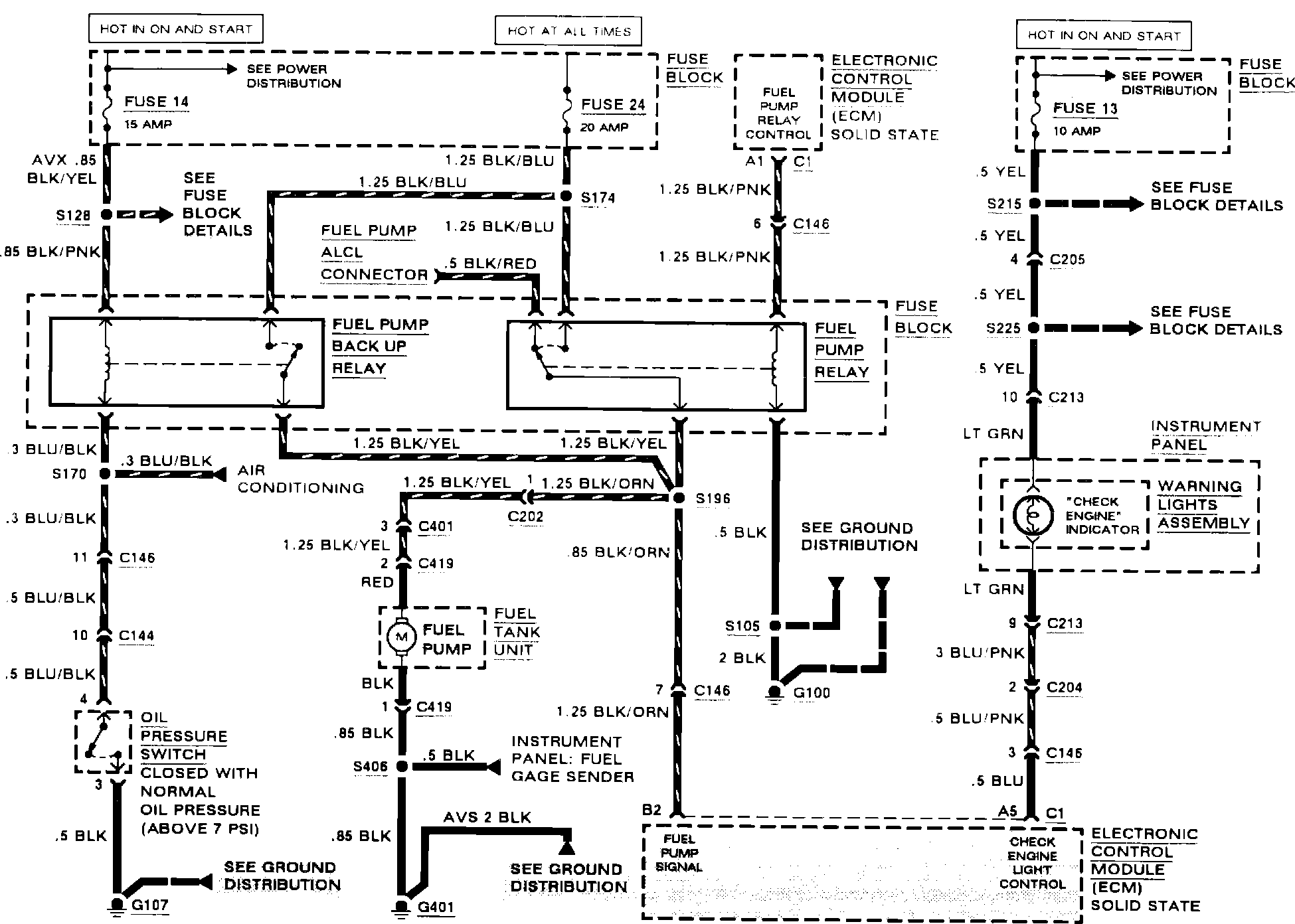

Engine Controls (Fuel Control, Check Engine Indicator):
