Code 13 - Oxygen Sensor Circuit

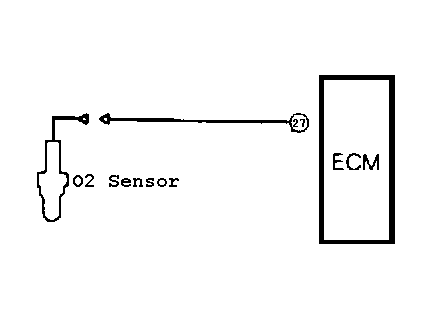

Fig 1: Code No. 13 Schematic, Oxygen Sensor Circuit

Courtesy of ISUZU MOTOR CO.

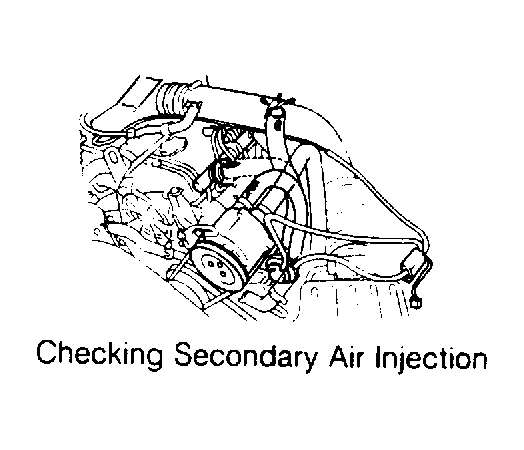

Fig 2: Code No. 13 Component Diagram, Secondary Air Injection Check

Courtesy of ISUZU MOTOR CO.

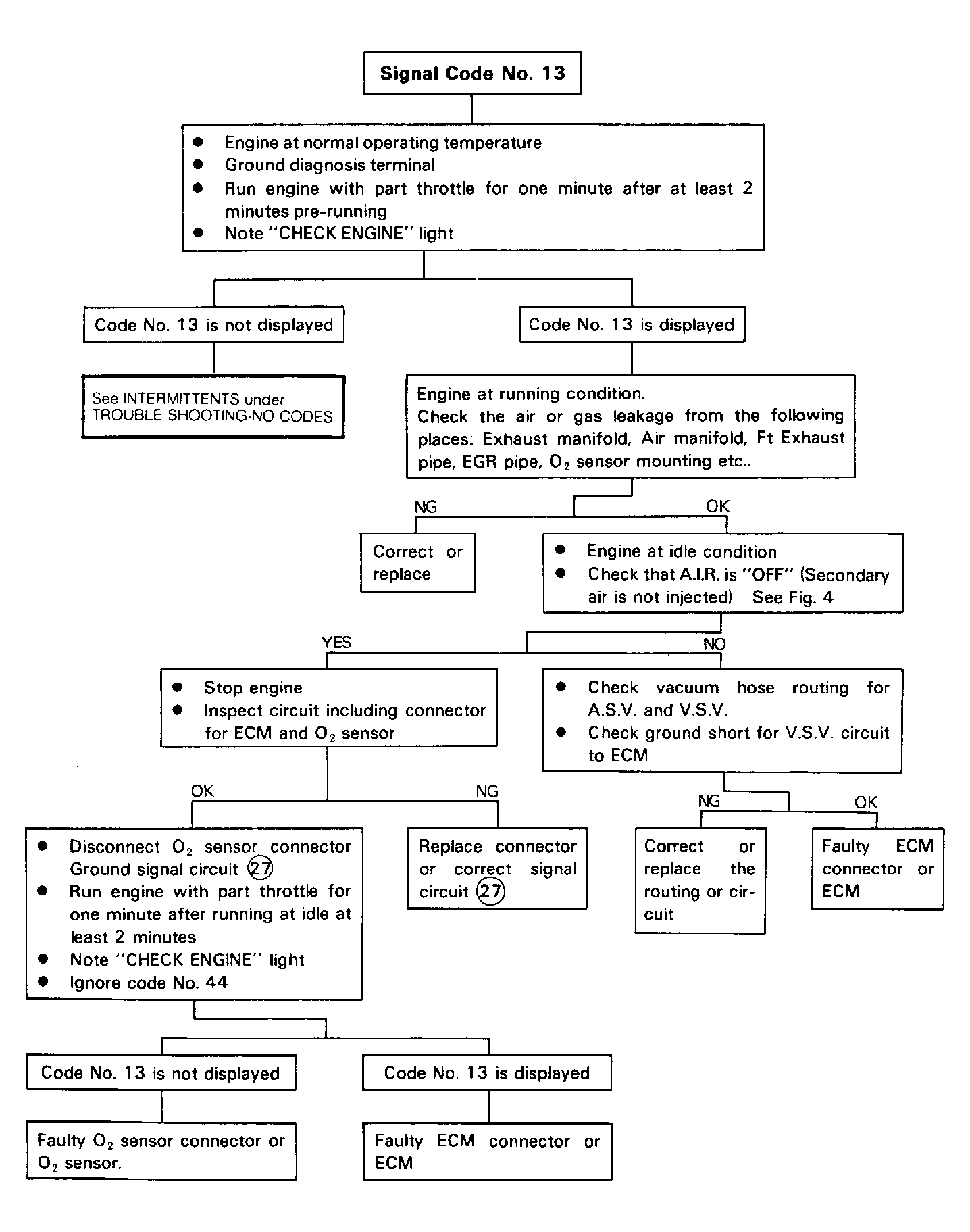

Fig 3: Code No. 13 Flow Chart, Oxygen Sensor Circuit

Courtesy of ISUZU MOTOR CO.
