ECM Terminal Identification

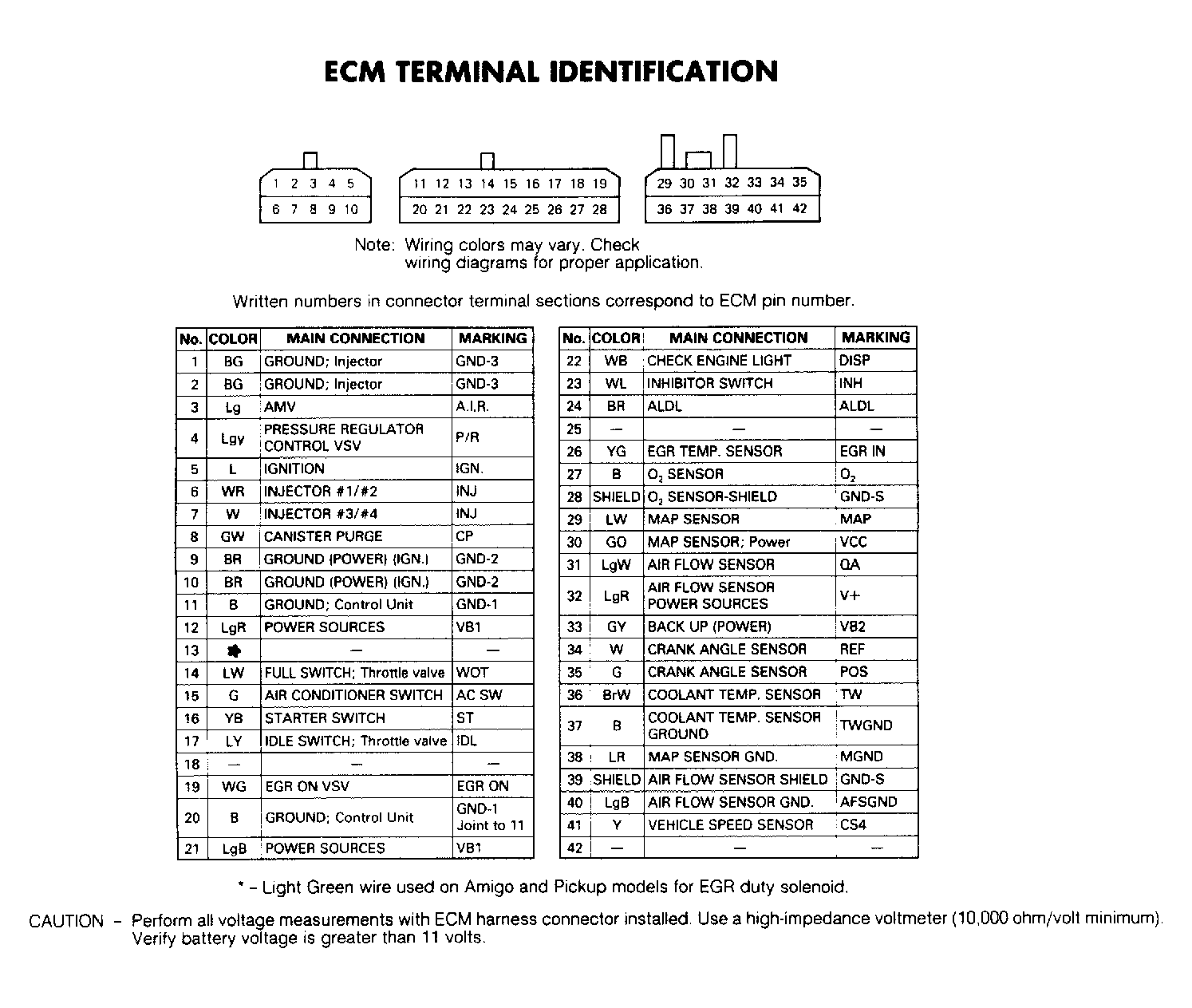

Fig 1: ECM Terminal Identification
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
