Code 14 & 15 - Coolant Temperature Sensor

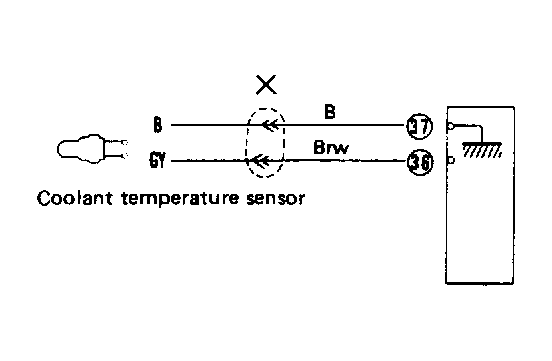

Fig 1: Code No. 14, 15 Schematic, Coolant Temperature Sensor

Courtesy of ISUZU MOTOR CO.

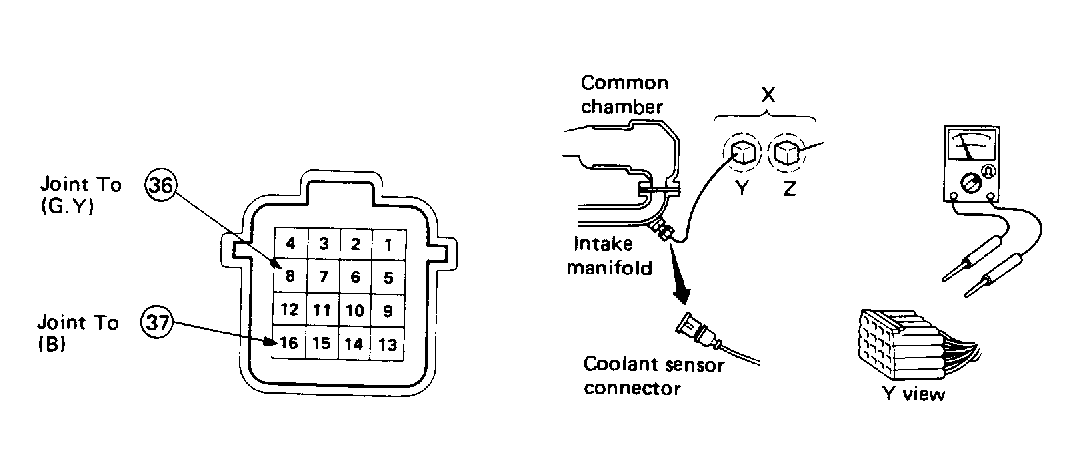

Fig 2: Code No. 14, 15 Connector, Coolant Temperature Sensor

Courtesy of ISUZU MOTOR CO.

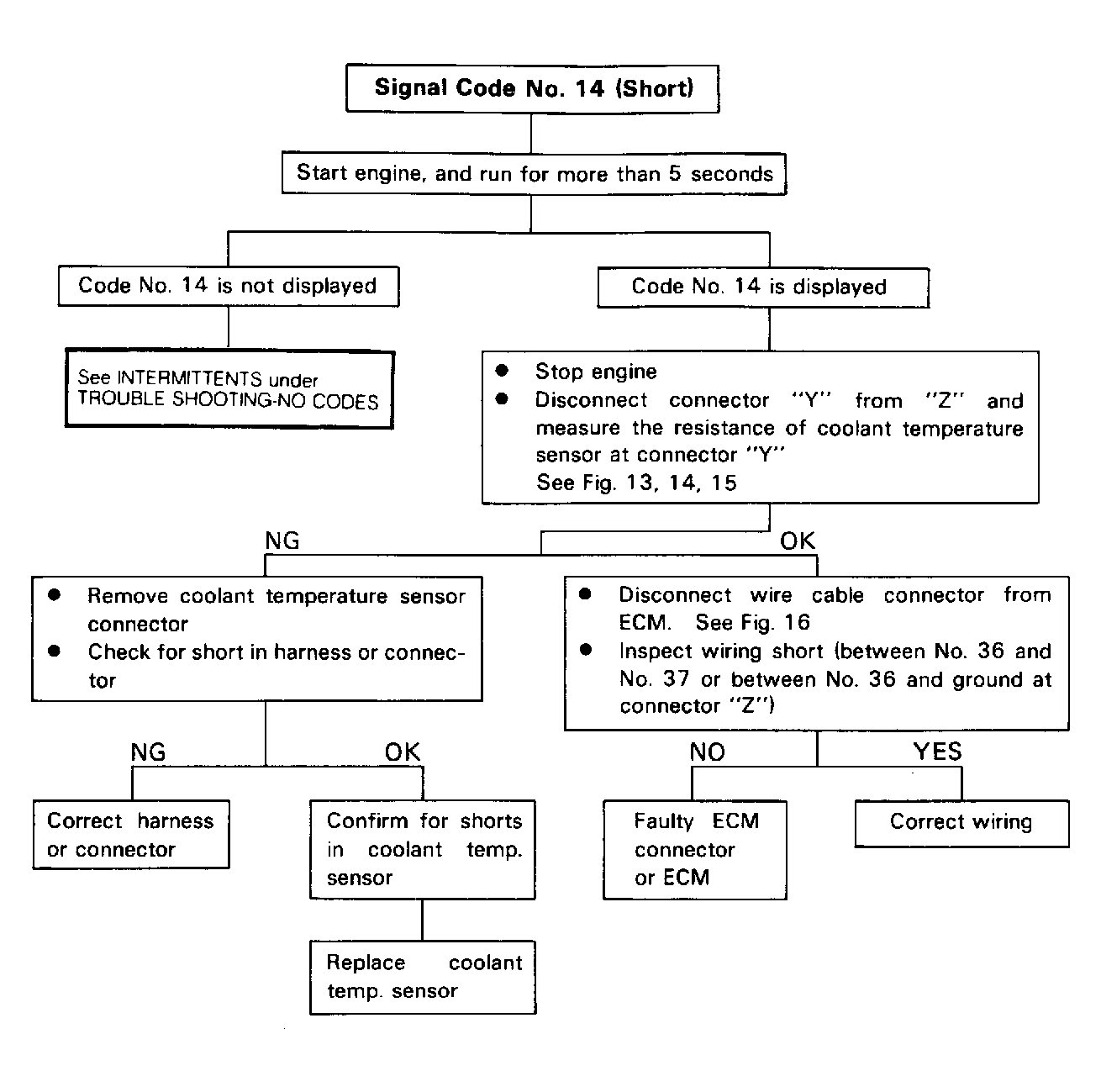

Fig 3: Code No. 14 Flow Chart, Shorted CTS Sensor

Courtesy of ISUZU MOTOR CO.

Fig 4: Code No. 15 Flow Chart, Open CTS Sensor

Courtesy of ISUZU MOTOR CO.
