Specified Reappearance Pattern

  1. Run engine at idle condition, at normal operating temperature.
  2. Keep at idle for more than 10 seconds, with vehicle stopped
  3. Drive vehicle at just over 10 MPH. Accelerate quickly to more than 30 MPH (must reach 30 MPH within 10 seconds of starting acceleration).
  4. Within 30 seconds, decelerate safely to a complete stop. See Fig 1 .
  5. Repeat above procedure 2) through 4) several times.

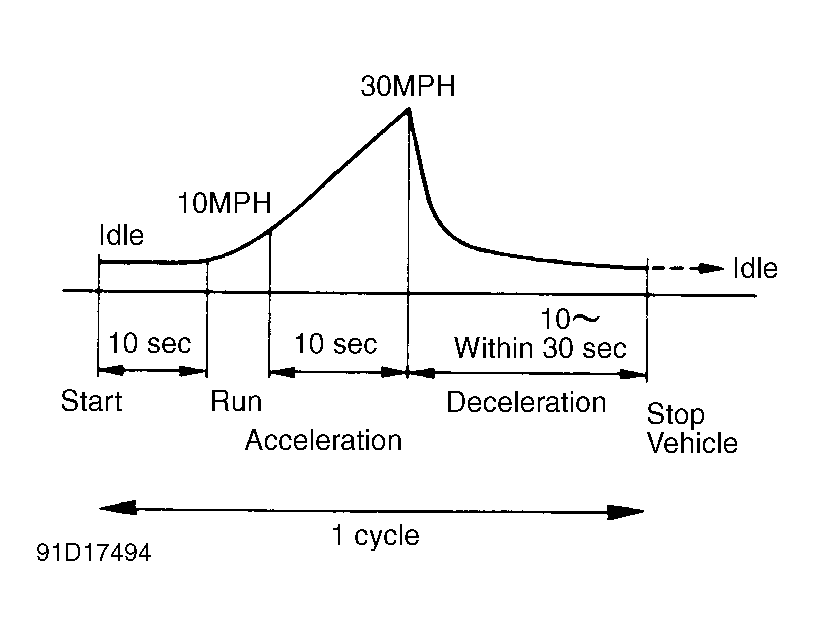

Fig 1: Code No. 32 Acceleration Chart
G91D17494Courtesy of ISUZU MOTOR CO.

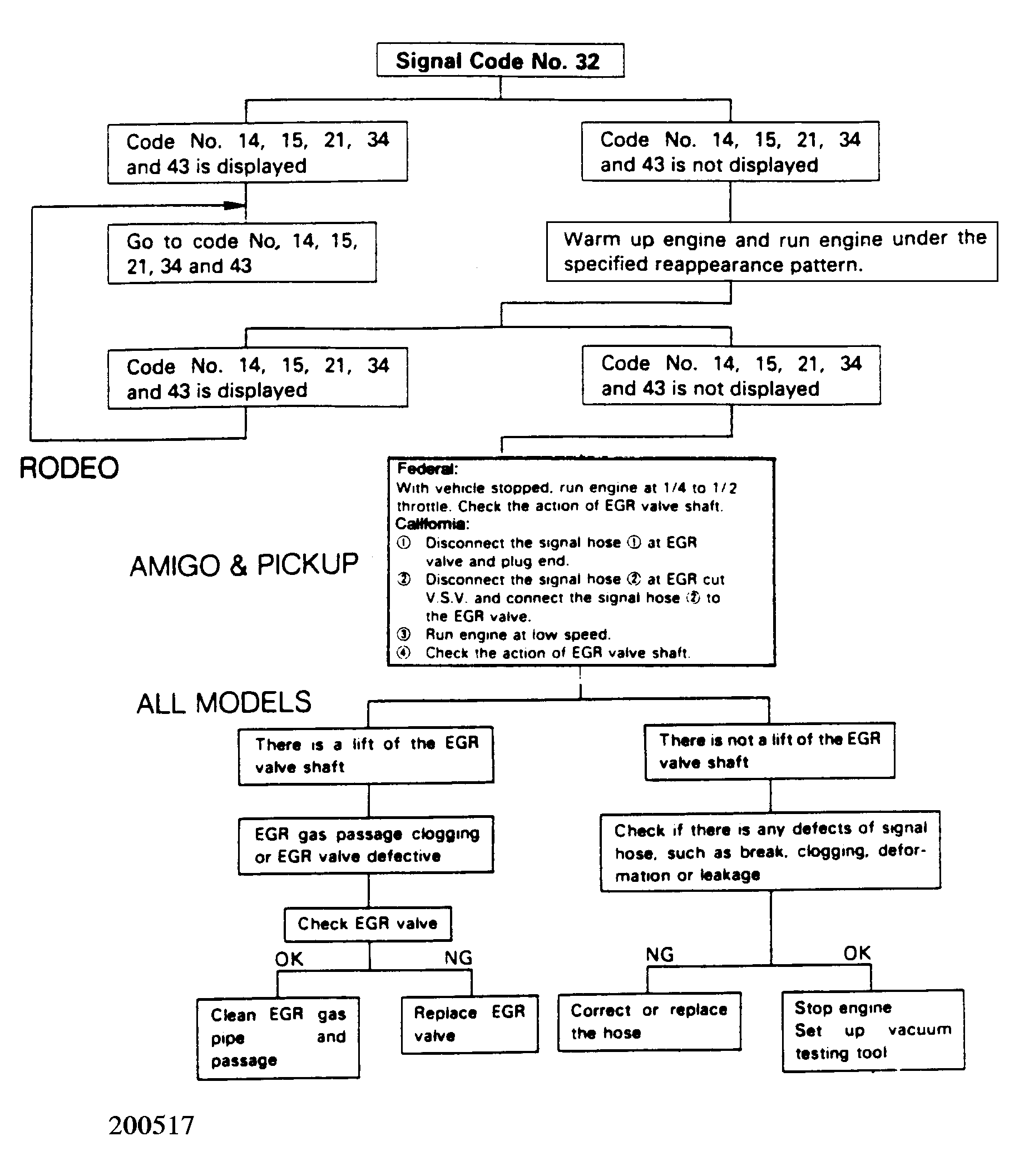

Fig 2: Code No. 32 Flow Chart, EGR System Malfunction (1 of 3)
G200517Courtesy of ISUZU MOTOR CO.
Fig 3: Code No. 32 Flow Chart, EGR System Malfunction (2 of 3)
G200512Courtesy of ISUZU MOTOR CO.

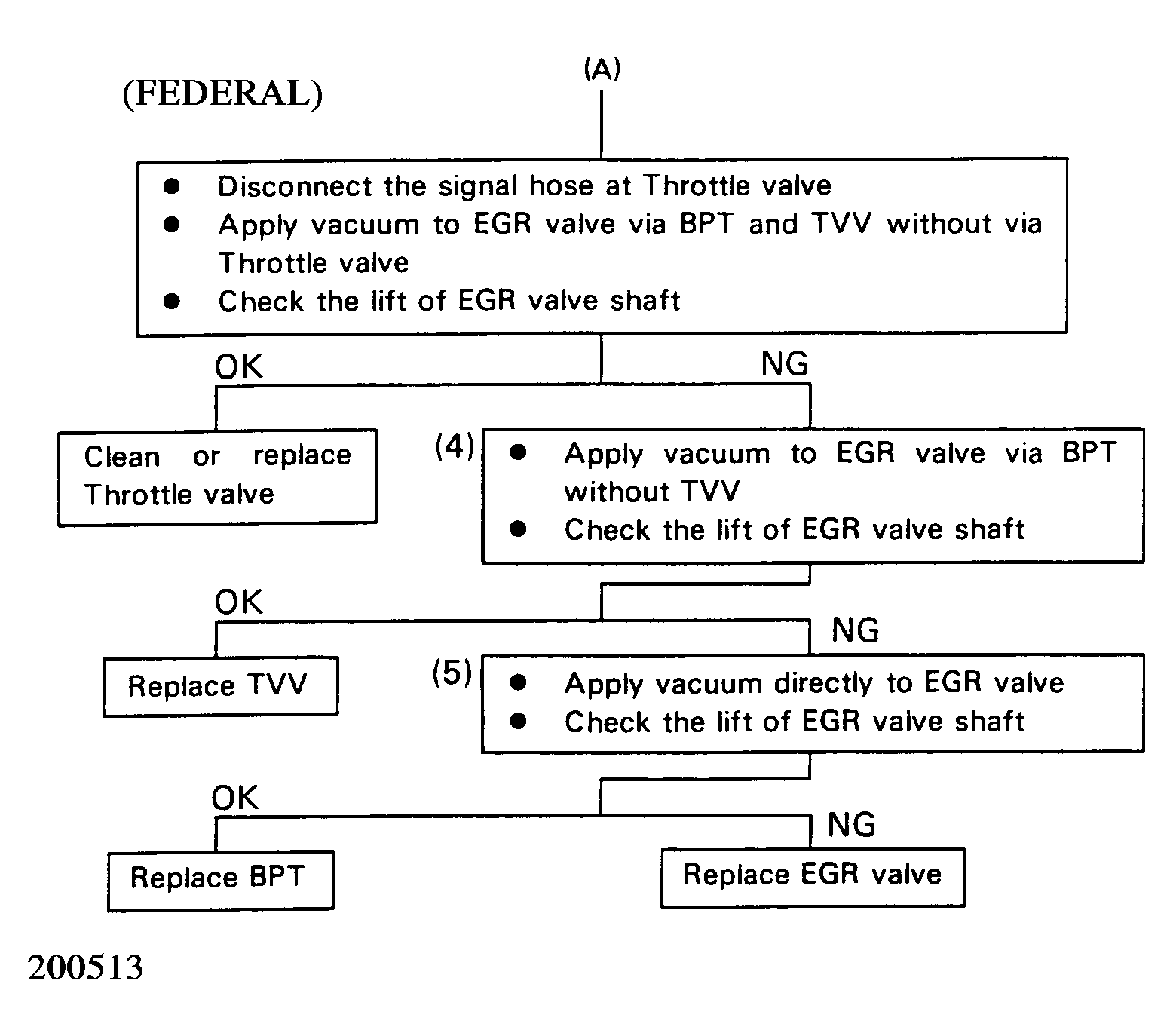

Fig 4: Code No. 32 Flow Chart, EGR System Malfunction (3 of 3)
G200513Courtesy of ISUZU MOTOR CO.
