Reassembly (Complete Carburetor Assembly)

Reverse disassembly procedure. Ensure all components are positioned correctly. To prevent twisting and cracking, grease "O" rings before installing.
To prevent loosening if choke and/or throttle valves are removed, stake or apply adhesive compound to set screw threads. Check linkage and operating levers for smooth operation.

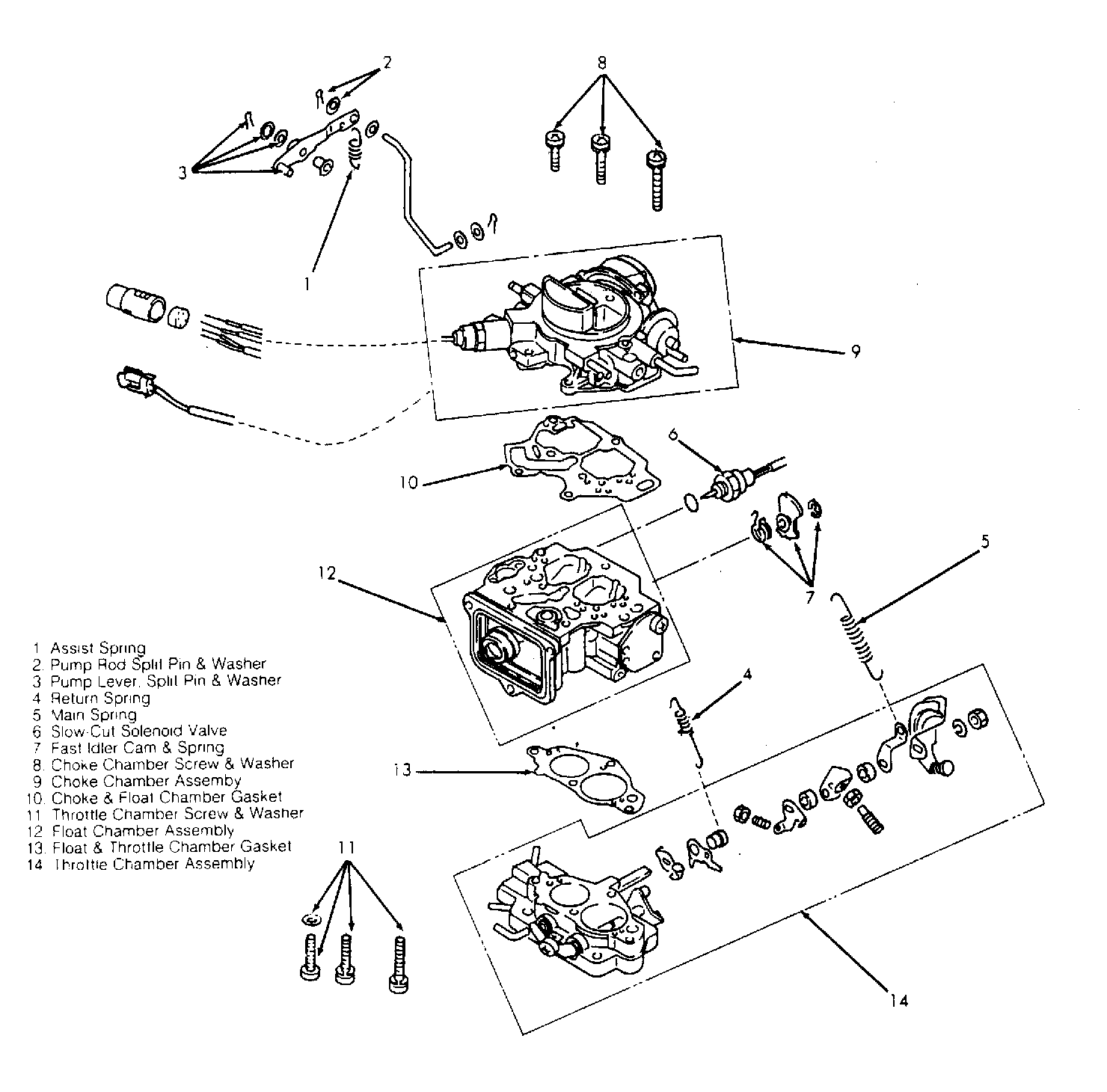

Fig 1: Exploded View Of Major Carburetor Components

Courtesy of ISUZU MOTOR CO.

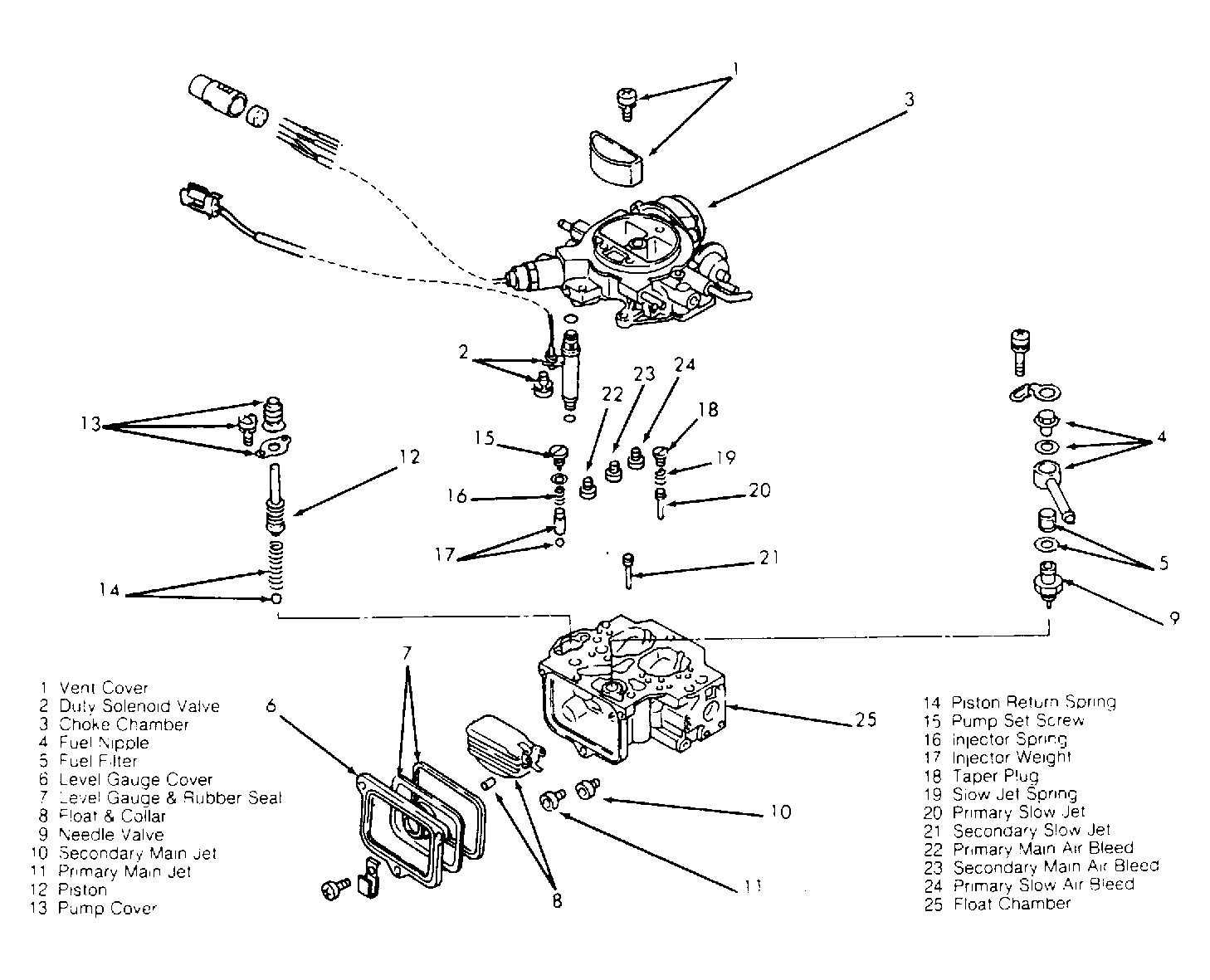

Fig 2: Exploded View Of Choke & Float Chamber Assembly

Courtesy of ISUZU MOTOR CO.

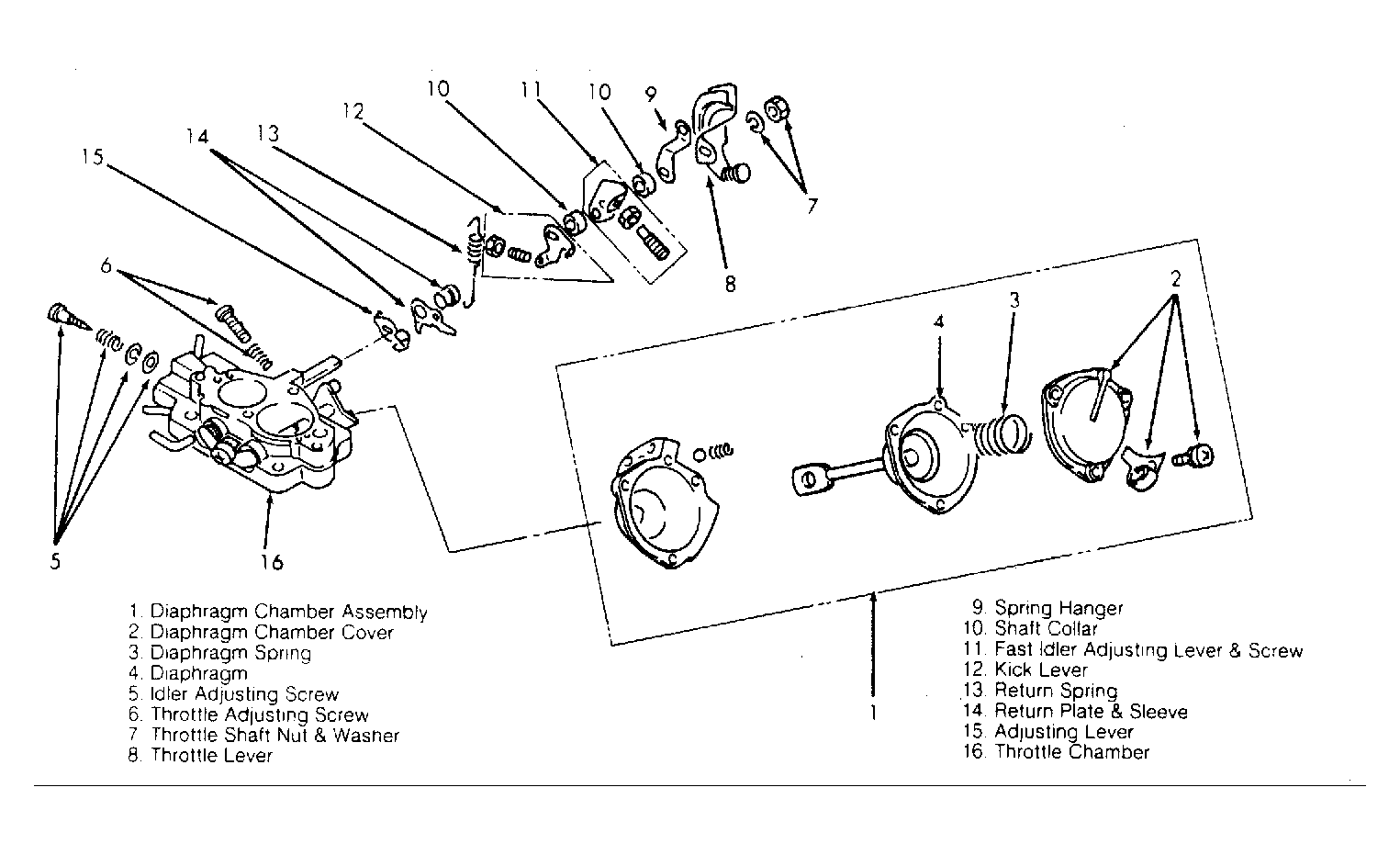

Fig 3: Exploded View Of Throttle Chamber Assembly

Courtesy of ISUZU MOTOR CO.
