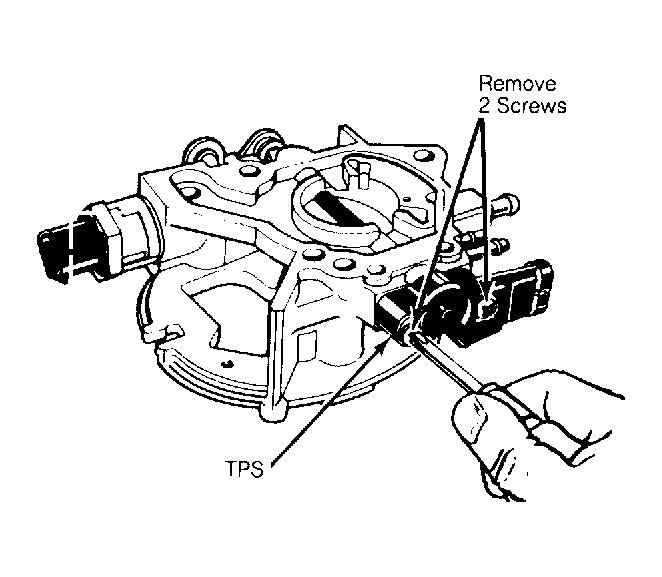

Throttle Valve Switch (TVS) Or Throttle Position Sensor (TPS): Installation
With throttle valve in closed (idle) position, install TPS on throttle body. Ensure TPS pick-up lever is located above TPS actuator lever. Install retainers, lock washers and screws. Coat screws with thread locking compound. Connect TPS connector. Install air cleaner. For TPS adjustment, see appropriate C- ADJUSTMENTS article.
