Code 22 - Starter Signal

NOTE: See appropriate wiring diagram in WIRING DIAGRAMS article for terminal and connector identification.

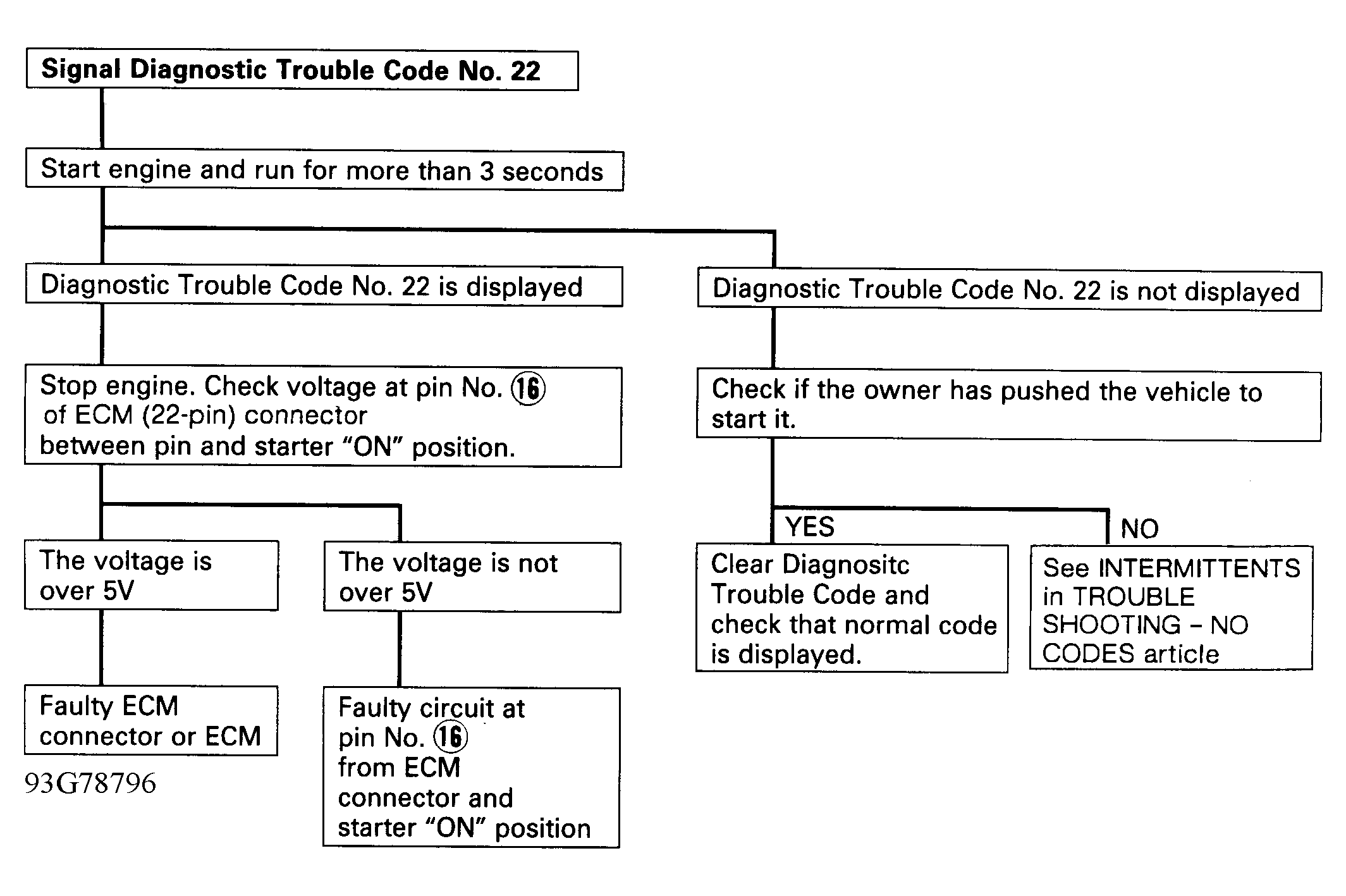

Fig 1: Code 22 - Diagnostic Flowchart Courtesy Isuzu Motor Co
G93G78796
