Code 34 - EGR Gas Temperature Sensor

NOTE: See appropriate wiring diagram in WIRING DIAGRAMS article for terminal and connector identification.

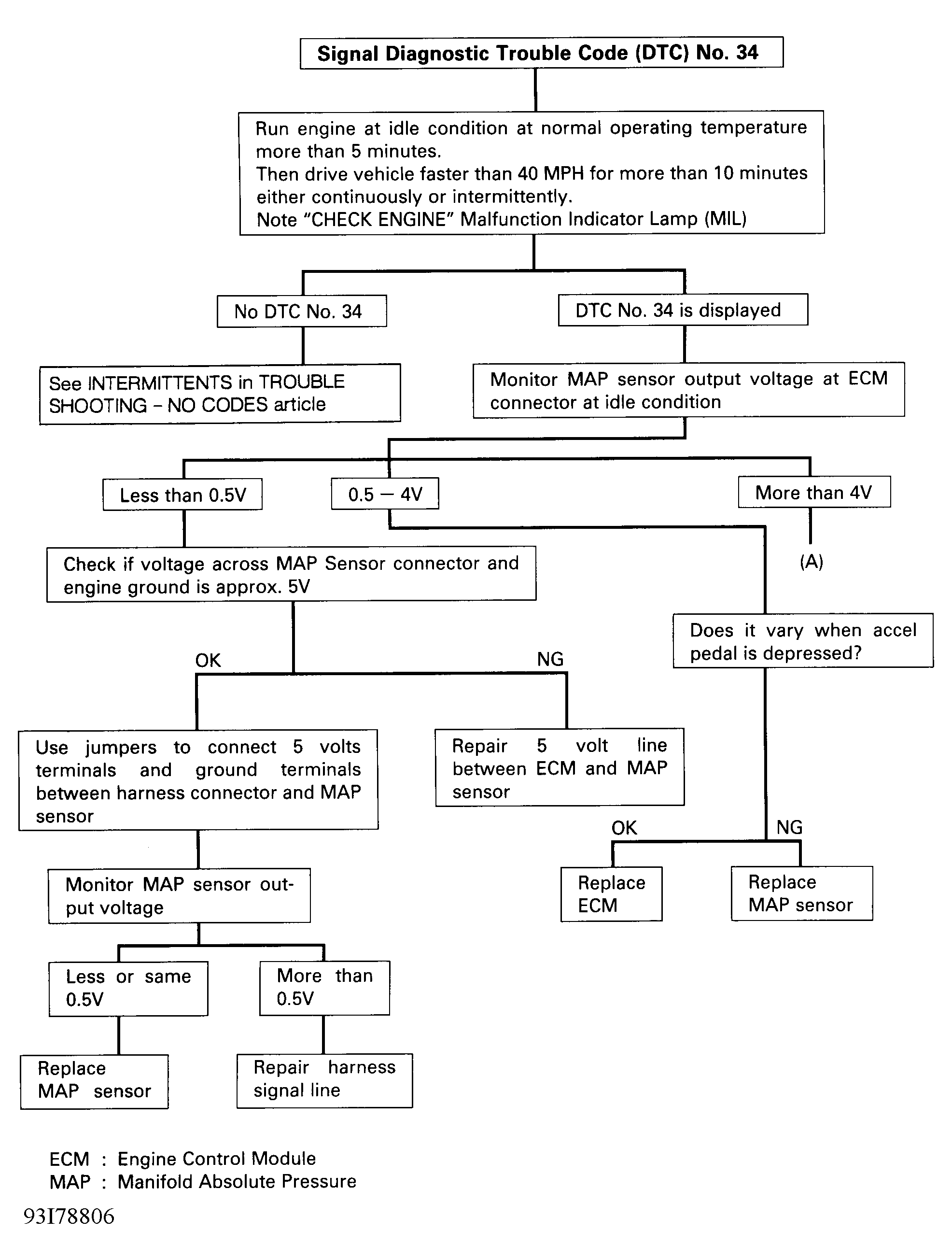

Fig 1: Code 34 - Diagnostic Flowchart (1 Of 2) Courtesy Isuzu Motor Co

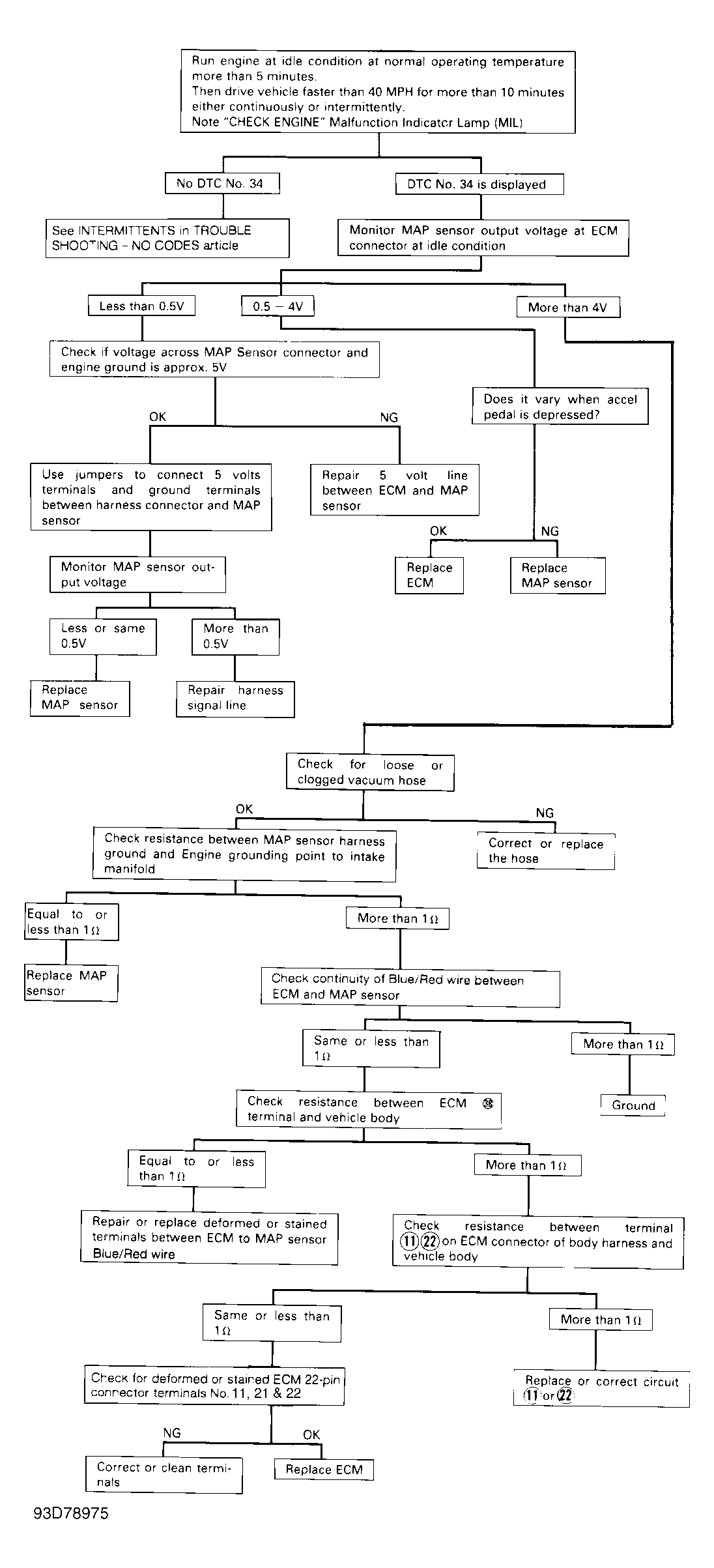

Fig 2: Code 34 - Diagnostic Flowchart (2 Of 2) Courtesy Isuzu Motor Co
