Code 41 - Crank Angle Sensor Signal
NOTE:
See appropriate wiring diagram in WIRING DIAGRAMS article for terminal and connector identification.
NOTE:

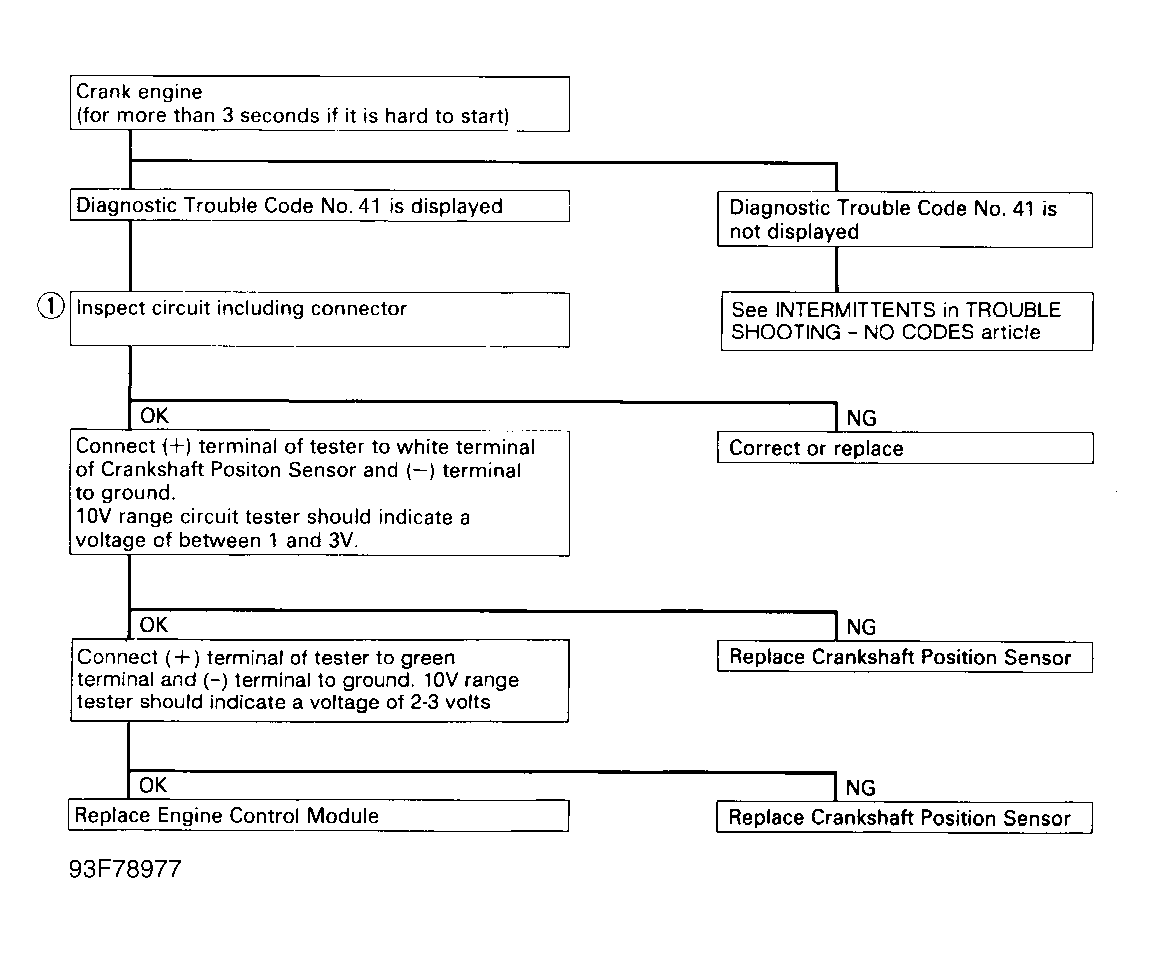

Test numbers refer to numbers on diagnostic chart.
- Inspecting Crankshaft Position (CKP) sensor circuit:
- Disconnect CKP sensor and ECM connectors.
- Turn ignition on.
- Measure CKP sensor voltage and resistance values. See CKP SENSOR SPECIFICATIONS table.
- If values are not within specification, repair or replace appropriate harness or connector.
- Reconnect CKP and ECM connectors.
CKP SENSOR SPECIFICATIONS
| Between Terminals (1) | Resistance | Voltage | ||
|---|---|---|---|---|
| 20 & Black/White | 0 | 0 | ||
| 7 & Green/Yellow | 0 | 0 | ||
| Green/Black & Ground | 0 | 10-14 | ||
| Black & Ground | 0 | 0 | ||
|
||||
