Code 43, 65 - Throttle Valve Switch

NOTE: See appropriate wiring diagram in WIRING DIAGRAMS article for ECM terminal and connector identification.

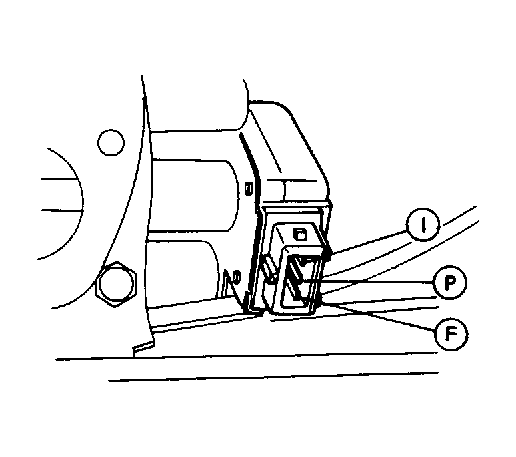

Fig 1: Code 43, 65 - Throttle Valve Switch Courtesy Isuzu Motor Co
G91B16940

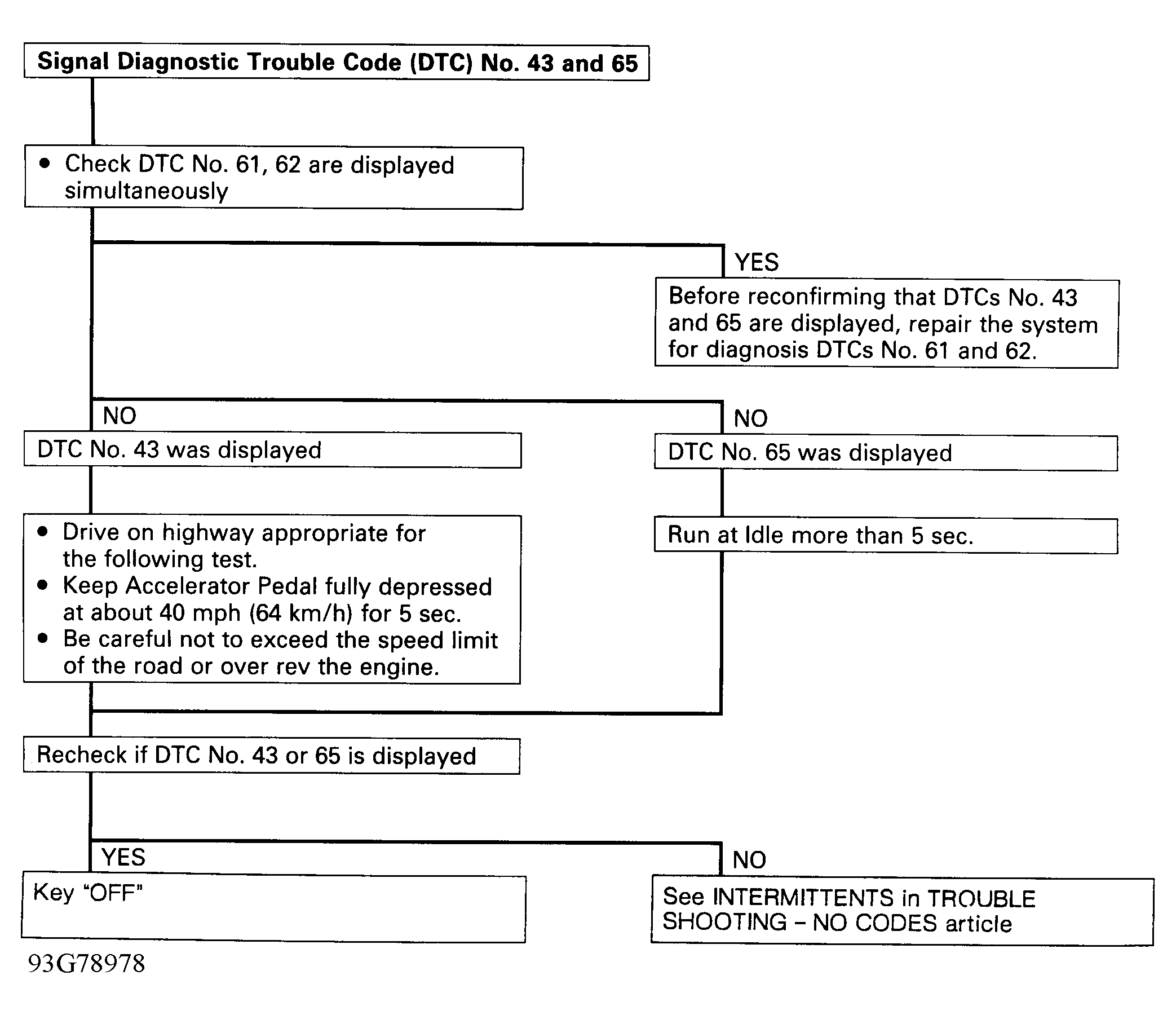

Fig 2: Code 43, 65 - Diagnostic Flowchart (1 Of 2) Courtesy Isuzu Motor Co
G93G78978

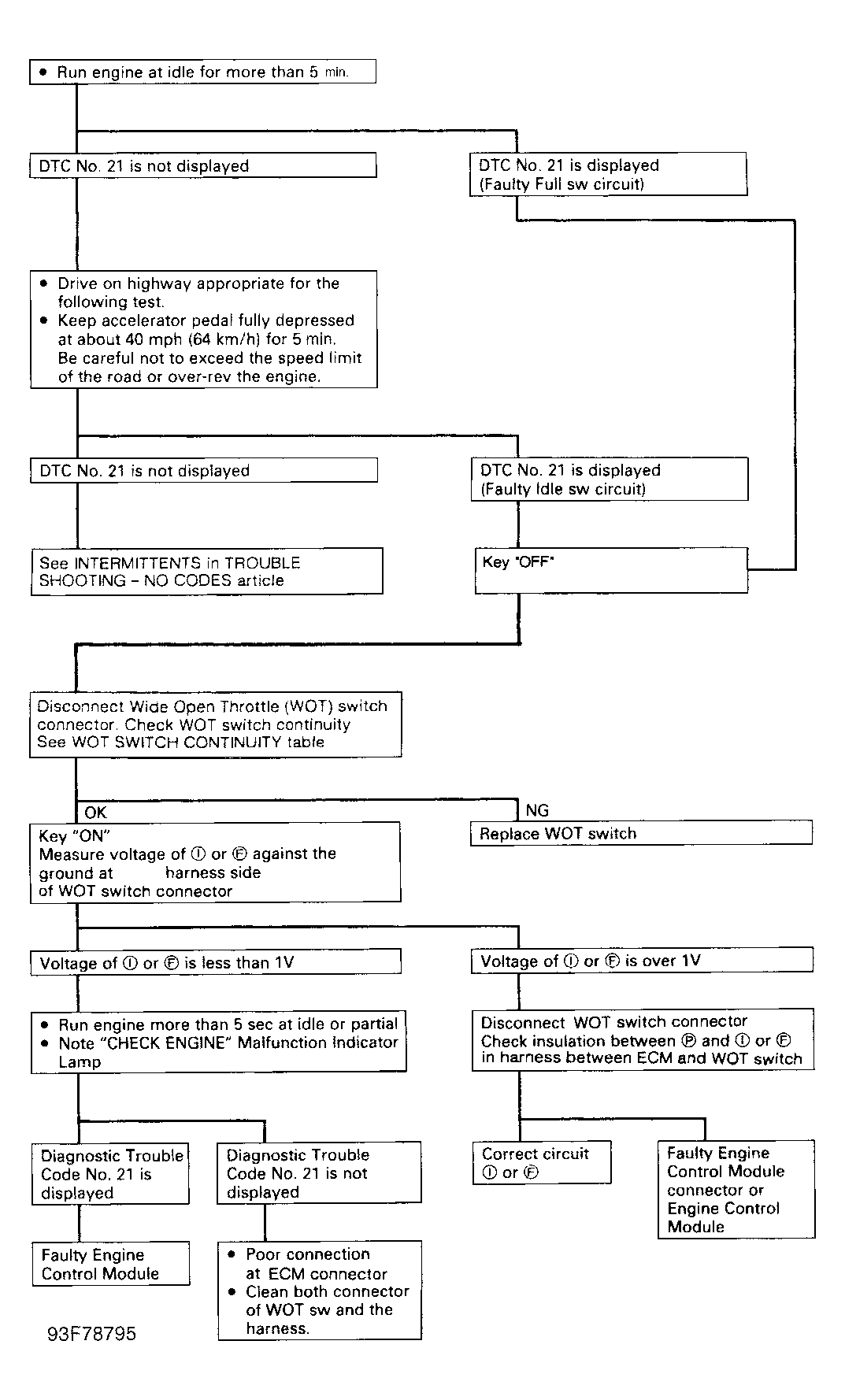

Fig 3: Code 43, 65 - Diagnostic Flowchart (2 Of 2) Courtesy Isuzu Motor Co
G93F78795
WOT SWITCH CONTINUITY

Accelerator Pedal Continuity I-P (Ohms) Continuity P-F (Ohms)
Not Depressed 0 Infinity
Slightly Depressed Infinity Infinity
Fully Depressed Infinity 0
