Code 44, 45 - Oxygen Sensor-Lean/Rich Fuel Mixture: Notes
NOTE:
See appropriate wiring diagram in WIRING DIAGRAMS article for terminal and connector identification.
NOTE:

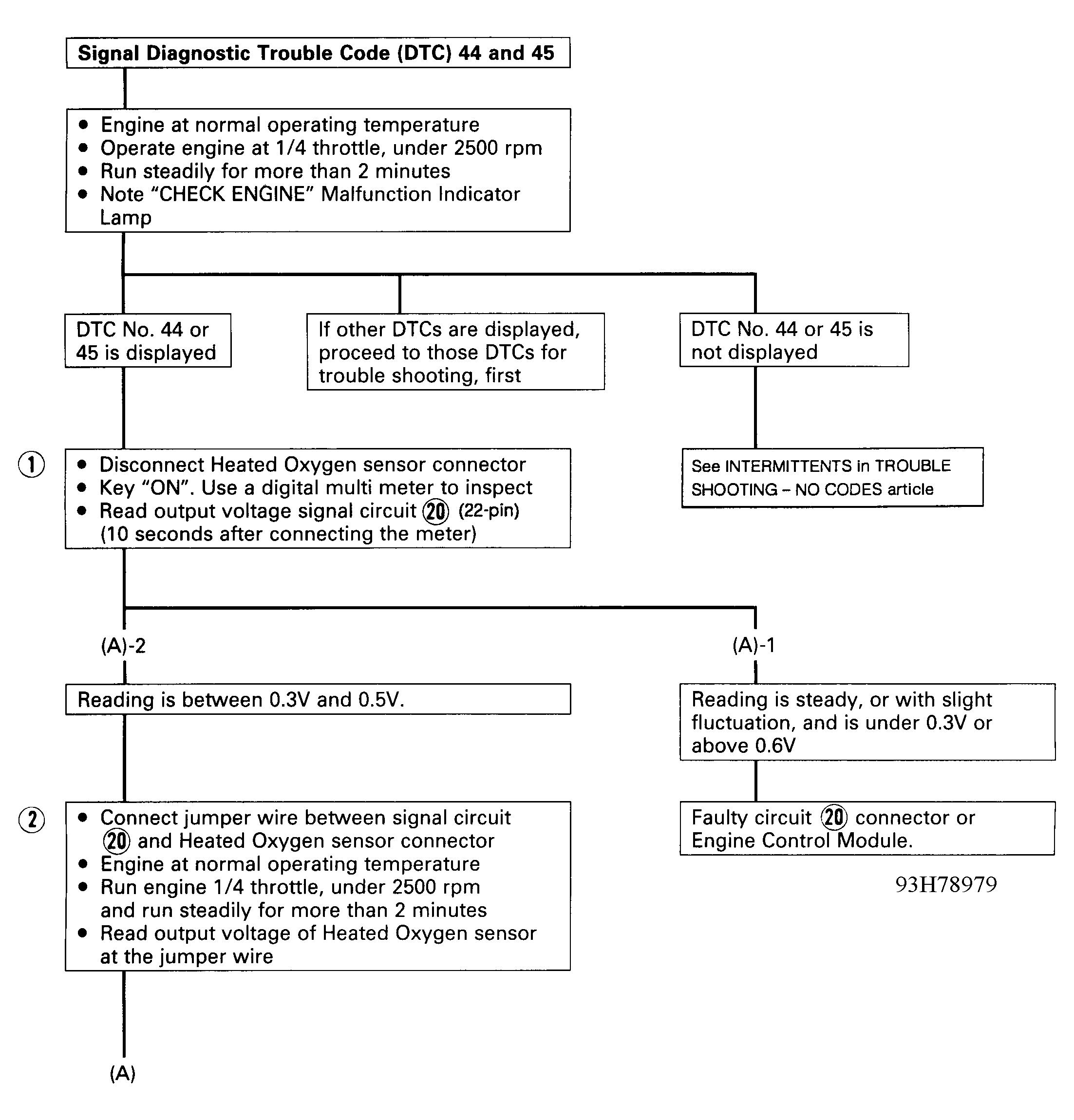

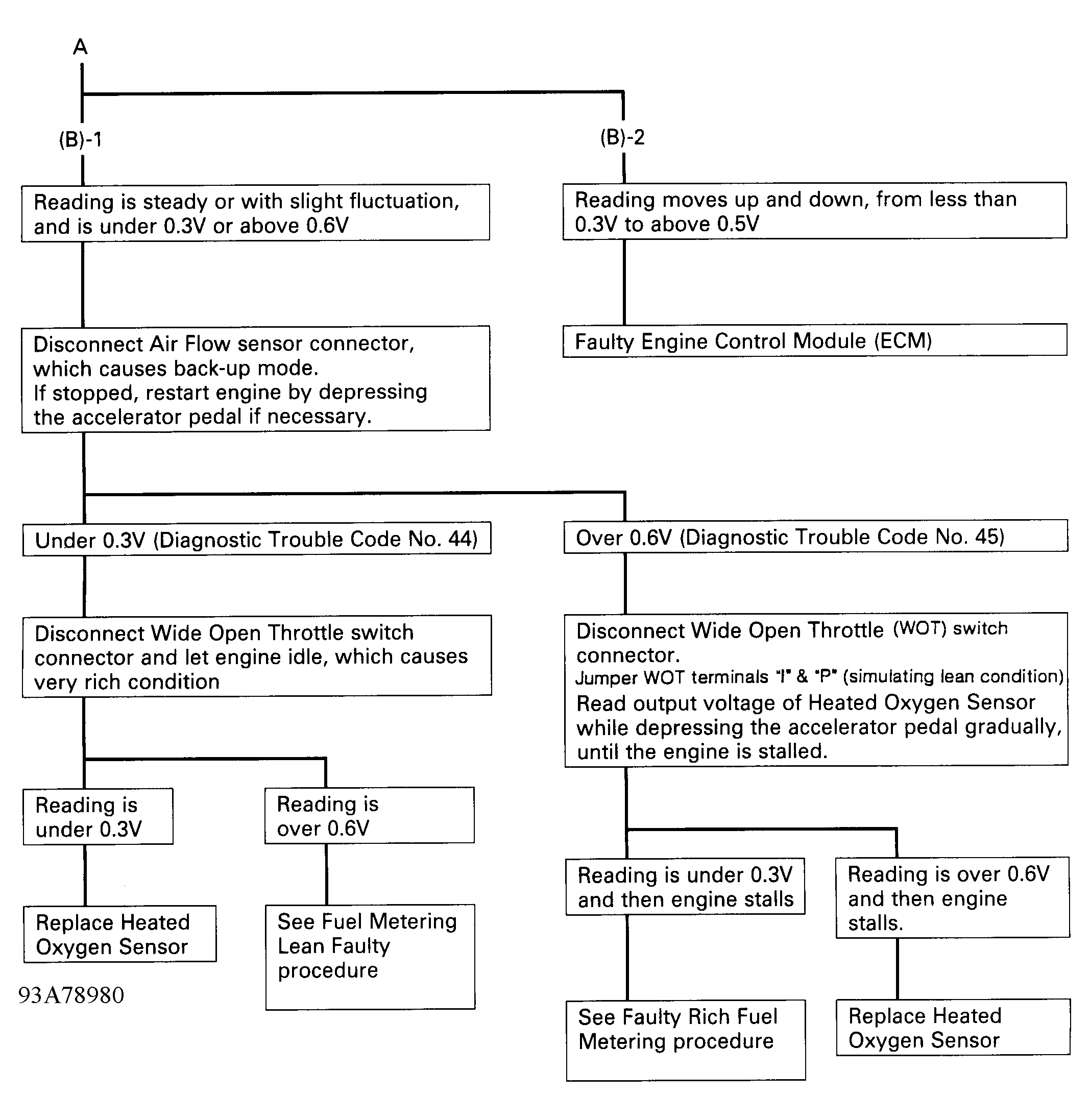

Test numbers refer to numbers on diagnostic chart.
- Measure voltage at oxygen sensor connector.
- Jumper wire allows voltage measurement of circuit.
