Code 64 - Fuel Injector Circuit (ECM Transistor)

NOTE: See appropriate wiring diagram in WIRING DIAGRAMS article for ECM terminal and circuit identification.

Fig 1: ECT Sensor Side Of Black 16-Pin Connector Courtesy Isuzu Motor Co

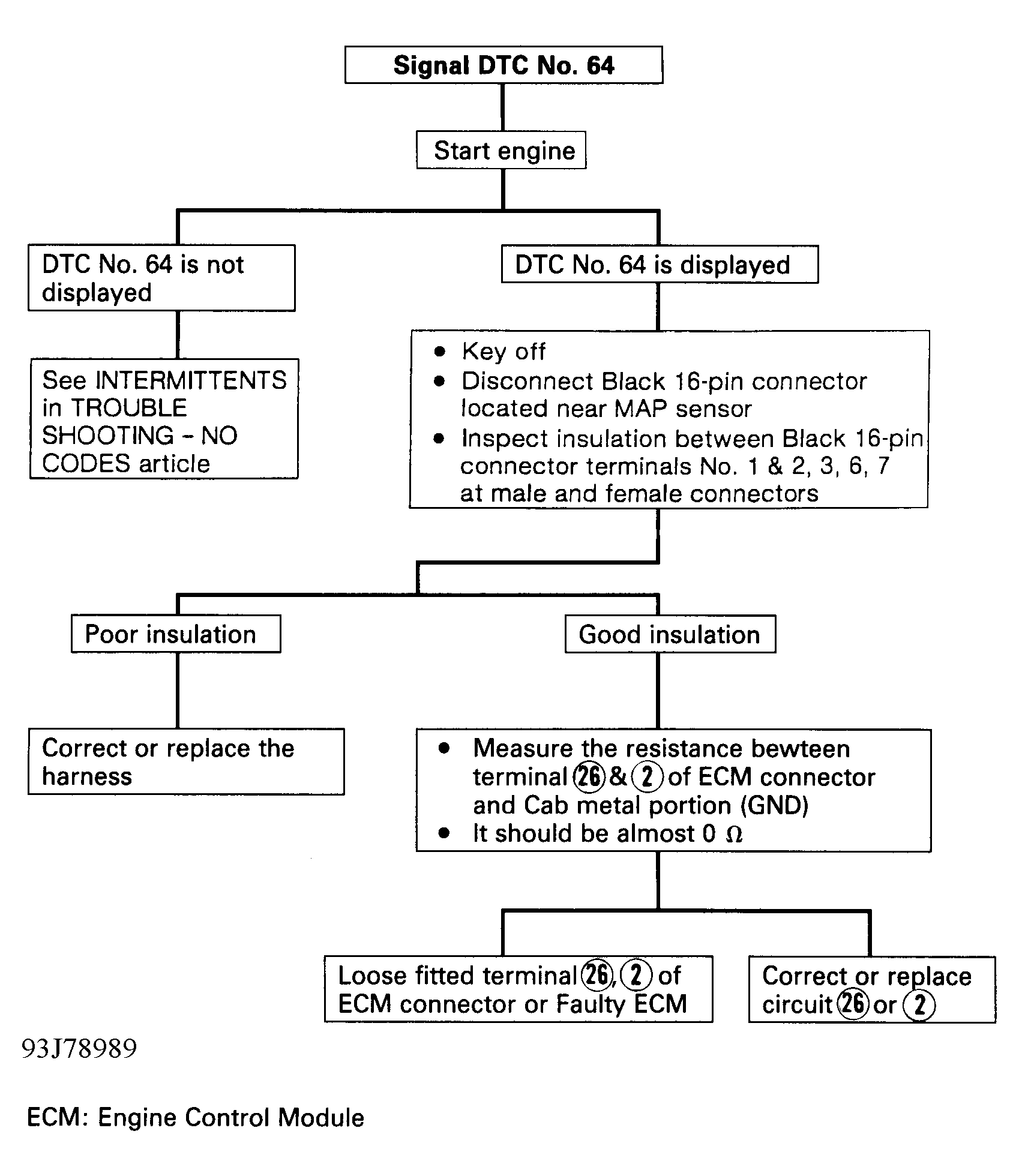

Fig 2: Code 64 - Diagnostic Flowchart Courtesy Isuzu Motor Co
