Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Circuit Breaker
Power Windows / Sun Roof In passenger compartment fuse/relay block.
Fuse/Relay Block
Engine Compartment On left side of engine compartment, near strut tower. See Figure .
Passenger Compartment

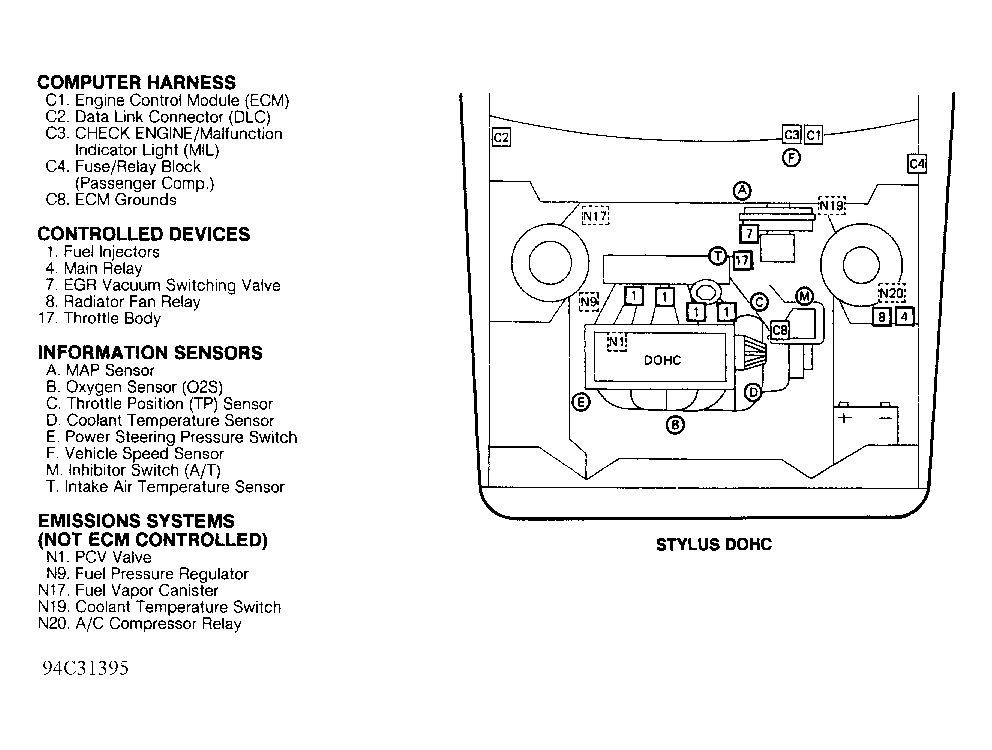

DOHC Behind left kick panel. See Figure .

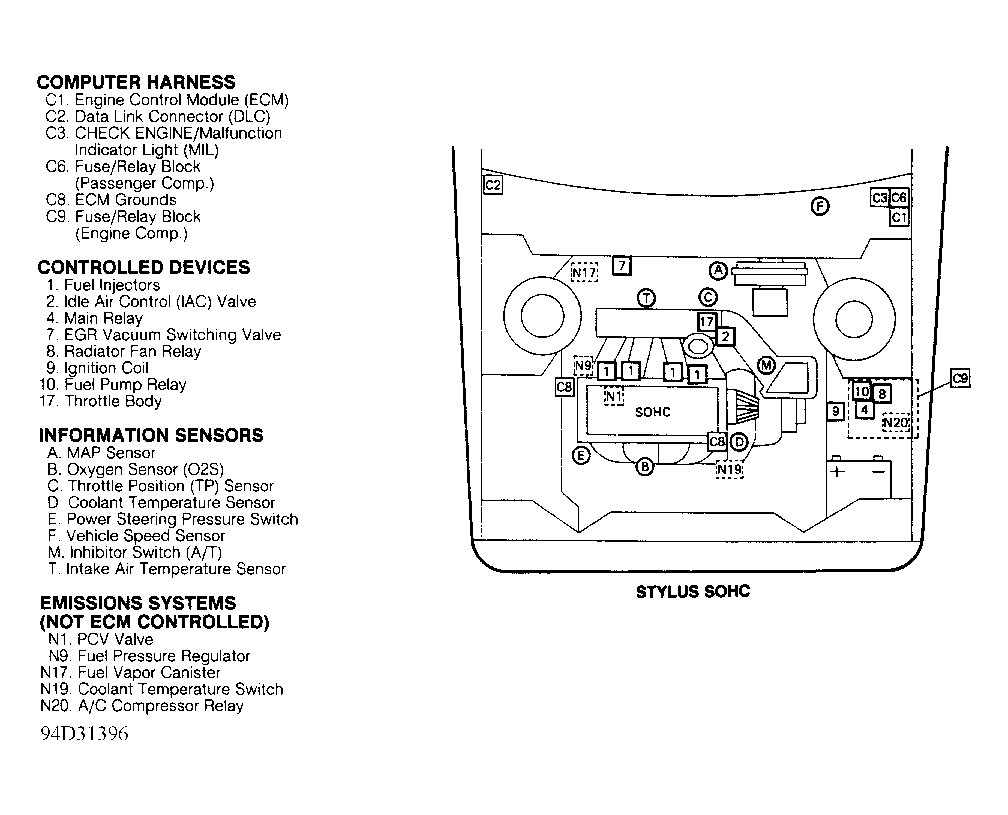

SOHC Behind left kick panel. See Figure .
Relay Block On right side of engine compartment, near strut tower.
