Air Bag Module: Installation

Ensure battery has been disconnected for minimum of 10 minutes. To install, reverse removal procedure. Tighten air bag module screws to 44 INCH lbs. (5 N.m). After all repairs are completed, activate air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM  .

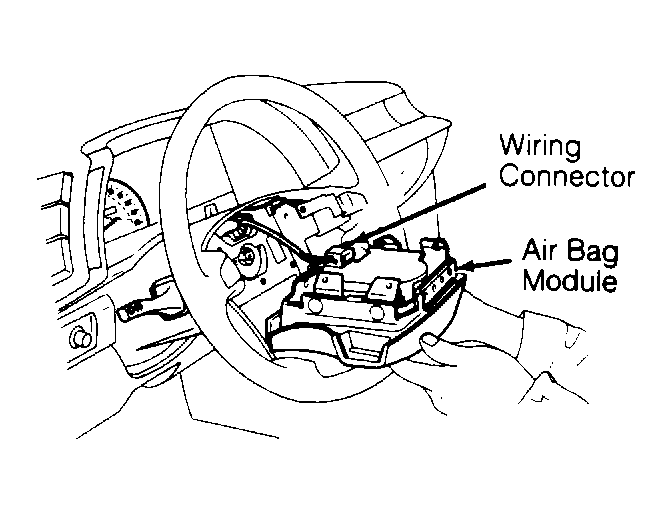

Fig 1: Removing Air Bag Module
G91G02040Courtesy of ISUZU MOTOR CO.
