Power Window Switch Continuity Test (Driver-Side Switch)

  1. Remove switch from door trim panel. Disconnect power window switch harness connector. Using an ohmmeter, check continuity between specified switch terminals with switch in specified position. See DRIVER-SIDE SWITCH TESTING  .

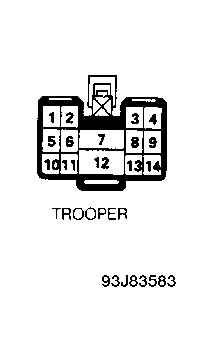

  2. Use illustration for switch terminal identification. SeeFigure . If continuity is not as specified, replace appropriate switch.
DRIVER-SIDE SWITCH TESTING

Switch & Position Check Continuity Between Terminals No.
Left Front
DOWN 1 & 12; 2 & 7
OFF 1 & 12; 2 & 12
UP 1 & 7; 2 & 12
Right Front
DOWN 7 & 13; 12 & 14
OFF 12 & 13; 12 & 14
UP 7 & 14; 12 & 13
Left Rear
DOWN 6 & 12; 7 & 9
OFF 6 & 12; 9 & 12
UP 6 & 7; 9 & 12
Right Rear
DOWN 5 & 7; 10 & 12
OFF 5 & 12; 10 & 12
UP 5 & 12; 7 & 10
Lock
OFF (Unlock) (1)
ON (Lock) (2)
(1) Terminals No. 5, 6, 9, 10, 12, 13 and 14 should have continuity when ohmmeter is connected between any 2 terminals.
(2) Terminals No. 5, 6, 9, 10, 13 and 14 should have continuity when ohmmeter is connected between any 2 terminals.
